HVC2512N5006DET datasheet, PDF

Datasheet> All Categories > Passive components> HVC2512N5006DET

HVC2512N5006DET: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 100 ppm, 100000000 ohm, SURFACE MOUNT, 0805; CategoryPassive components; File Size280KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

HVC2512N5006DET Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 5 %, 100 ppm, 100000000 ohm, SURFACE MOUNT, 0805

HVC2512N5006DET Parametric

Parameter Name	Attribute value
Maximum operating temperature	155 Cel
Minimum operating temperature	-55 Cel
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	WRAPAROUND
terminal coating	MATTE TIN OVER NICKEL
Installation features	SURFACE MOUNT
Rated temperature	70 Cel
Manufacturer Series	HVC
size code	0805
deviation	5 %
resistance	1.00E8 ohm
Craftsmanship	METAL GLAZE/THICK FILM
Resistor type	RESISTOR
Operating Voltage	200 V
Temperature Coefficient	100
Rated power P	0.1250 W

Preview

Download Datasheet

View All

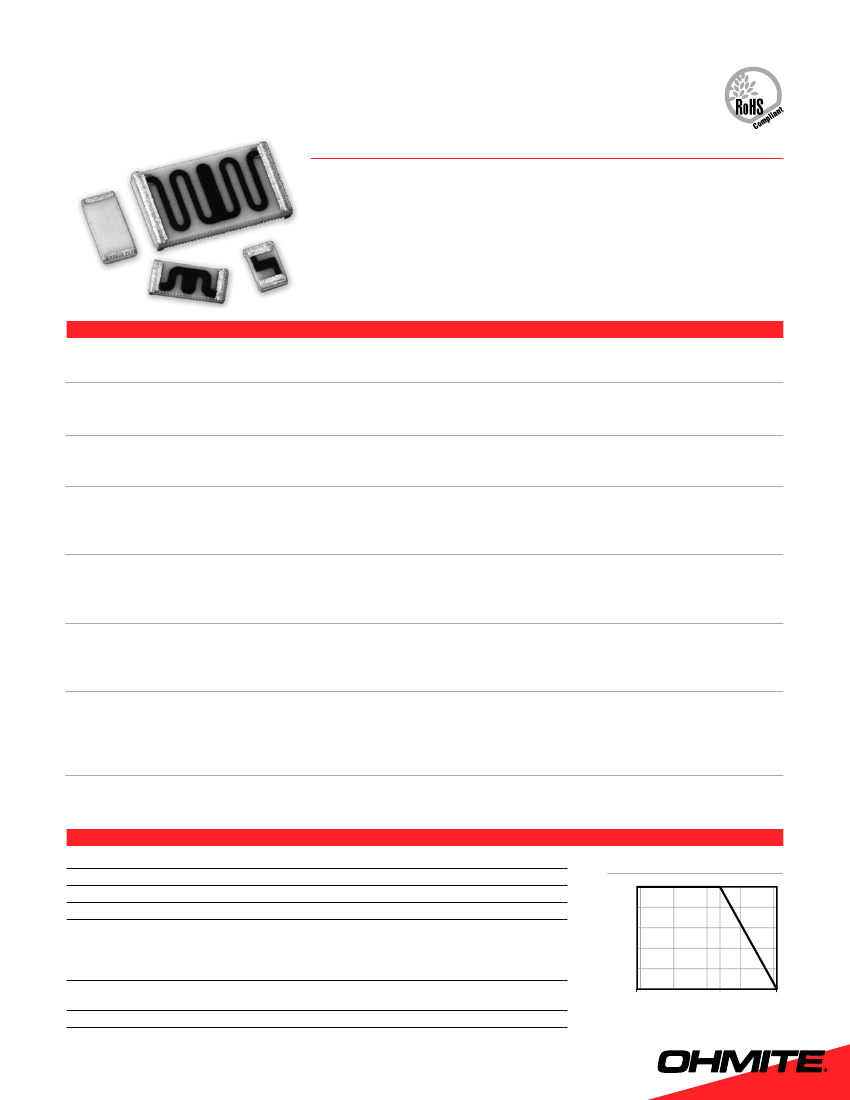

hVc Series

Precision High-Value High-voltage Wraparound Chip

f e at u r e S

• High value chip resistors in thick film technology

• Low temperature and voltage dependency (low TCR and VCR)

• High working voltage up to 3000V

• Suitable for high vacuum applications—no organics

• Contact areas: Nickel-barrier/matte tin

• Wraparound terminals

S e r i e S S p e c i f i c at i o n S

Series

HVC0402---

Type

0402

0603

0805

Wattage

(mW)

100

125

HVC0603---

HVC0805---

HVC1206---

1206

250

HVC2512---

2512

1000

HVC4020---

4020

1500

1. At continuous power dissipation the dimensions of the solder pads have to be capable of sufficient heat conduction.

2. Not all TCR/VCR combinations available in all resistance values

3. HVC2512 and HVC4020 10M-10G TCR’s available: 10ppm and 15ppm

Oper. Voltage (V)

Resistance

std. untrimmed (≥5%)

Range

100k-100M

>100M-1G

>1G-10G

150

100k-100M

>100M-1G

>1G-10G

200

400

100K-100M

>100M-1G

>1G-10G

>10G-100G

600

1000

100K-100M

>100M-1G

>1G-10G

>10G-100G

2000

3000

100K-100M

>100M-1G

>1G-10G

>10G-100G

4000

6000

100k-100M

>100M-1G

>1G-10G

>10G-100G

>100G-1T

Tolerance

5-10%

5-20%

10-30%

1-10%

5-20%

0.5-10%

2-20%

5-20%

10-30%

0.5-10%

2-20%

5-20%

10-30%

0.5-10%

1-20%

2-20%

5-30%

0.25-10%

0.5-20%

1-20%

2-30%

5-30%

TCR

2,3

(ppm)

50, 100

250, 500

1000, 2000

50, 100

250, 500

500, 1000

25, 50, 100

50, 100, 250

250, 500

1000, 2000

25, 50, 100

50, 100, 250

250, 500, 1000

25, 50, 100

100, 250, 500

25, 50, 100

50, 100, 250

250/500

VCR

(ppm)

500

1000

2000

500

1000

2000

100

250

500

2000

100

250

1000

100

250

characteriSticS

Operating temp. range

-55°C ~ +155°C

Climatic category

55/155/56, acc. to EN 60068-1

Derating

100

Percent Rated Power

-55

Max. soldering temp.

260°C, 10s, acc. to IEC 68-2-58

<1G

Long term stability

Load Life 70°C/1000h <0.25%

Storage 125°C/1000h

<0.5%

Max. Voltage/1000h

<0.5%

Short term overload

2.5*P70 / 5 sec.

<1G

<0.25%

Solderability

250°C, 3s, acc. to EN 60068-2-58

<10G

<0.5%

<1%

≥10G

<1%

<2%

Damp heat

56d/40°C/96%: ΔR <0.5%

<10G

<0.5%

≥10G

<0.5%

50 70 100

Ambient Temperature,

°C

155

Data not specified according to EN 140401-802 (CECC 40401-802)
