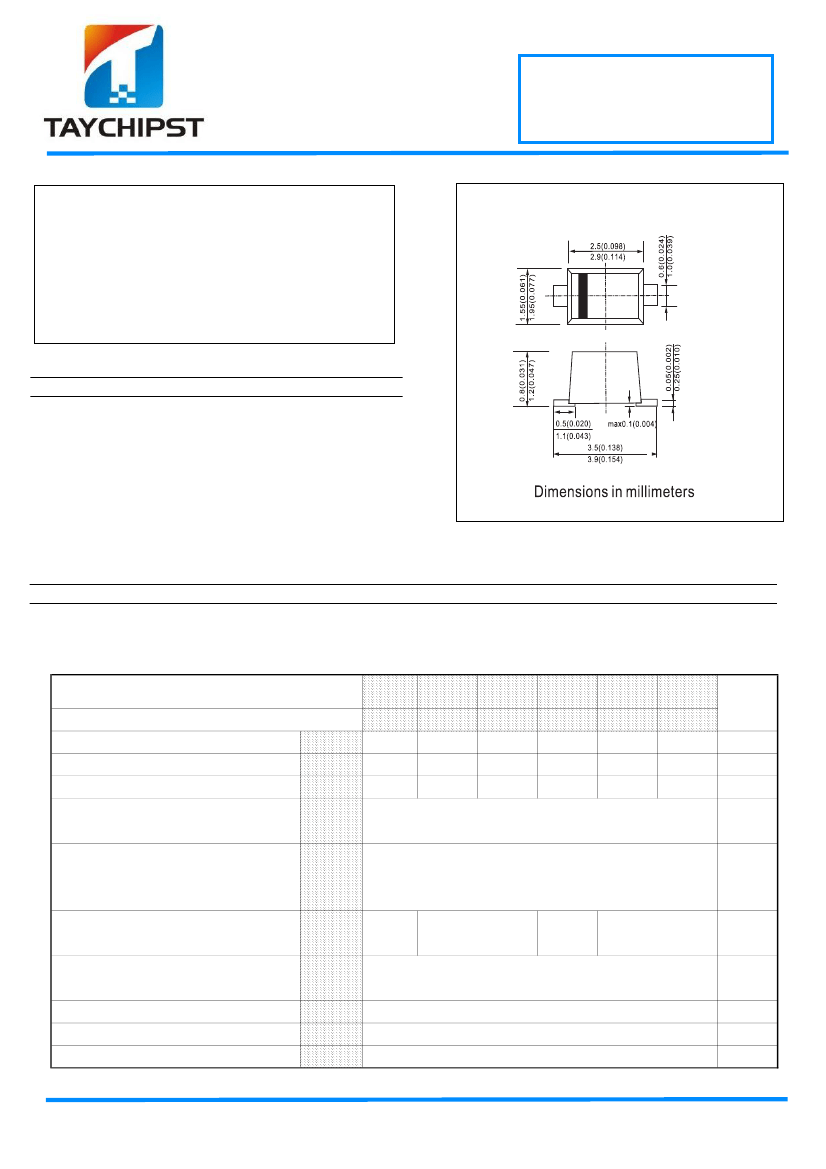

MBRX120 THRU MBRX1A0
SURFACE MOUNT SCHOTTKY
BARRIER RECTIFIER
20V-100v
1.0A
FEATURES
SOD-123FL
◇
Low forward surge current
◇
Ideal for surface mouted applications
◇
Low leakage current
MECHANICAL DATA
◇
Case:JEDEC SOD-123FL,molded plastic over
passivated chip
◇
Terminals:Solder Plated, solderable per
MIL-STD-750, Method 2026
◇
Polarity: Color band denotes cathode end
◇
Weight: 0.0008 ounces, 0.022 gram
◇
Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified.
Single hase,half wave,60Hz,resistive or inductive load.For capactive load,derate current by 20%.
Device marking code
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forword
rectified current
T
J
=90℃
MBRX MBRX MBRX MBRX MBRX MBRX
120
130
140
160
180
1A0
S2
S3
S4
S6
S8
SA
V
RRM
V
RMS
V
DC
I
(AV)
20
14
20
30
21
30
40
28
40
1.0
60
42
60
80
56
80
100
70
100
UNITS
V
V
V
A
Peak forward surge current 8.3ms single
half-sine-wave superimposed
on rated load
Maximum instantaneous
forward voltage
Repetitive peak reverse current
@I
FM
=1.0A
I
FSM
20
A
V
F
I
R
0.50
0.55
0.72
0.85
V
0.3
30
- 55 --- + 125
- 55 --- + 150
mA
pF
℃
℃
at rated DC blocking voltage
Typical junction capacitance
Operating temperature range
Storage temperature range
NOTE1.Measured at f=1.0MHz,V
R
=4.0V
C
J
T
j
T
STG
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
MBRX120 THRU MBRX1A0
SURFACE MOUNT SCHOTTKY
BARRIER RECTIFIER
20V-100v
1.0A

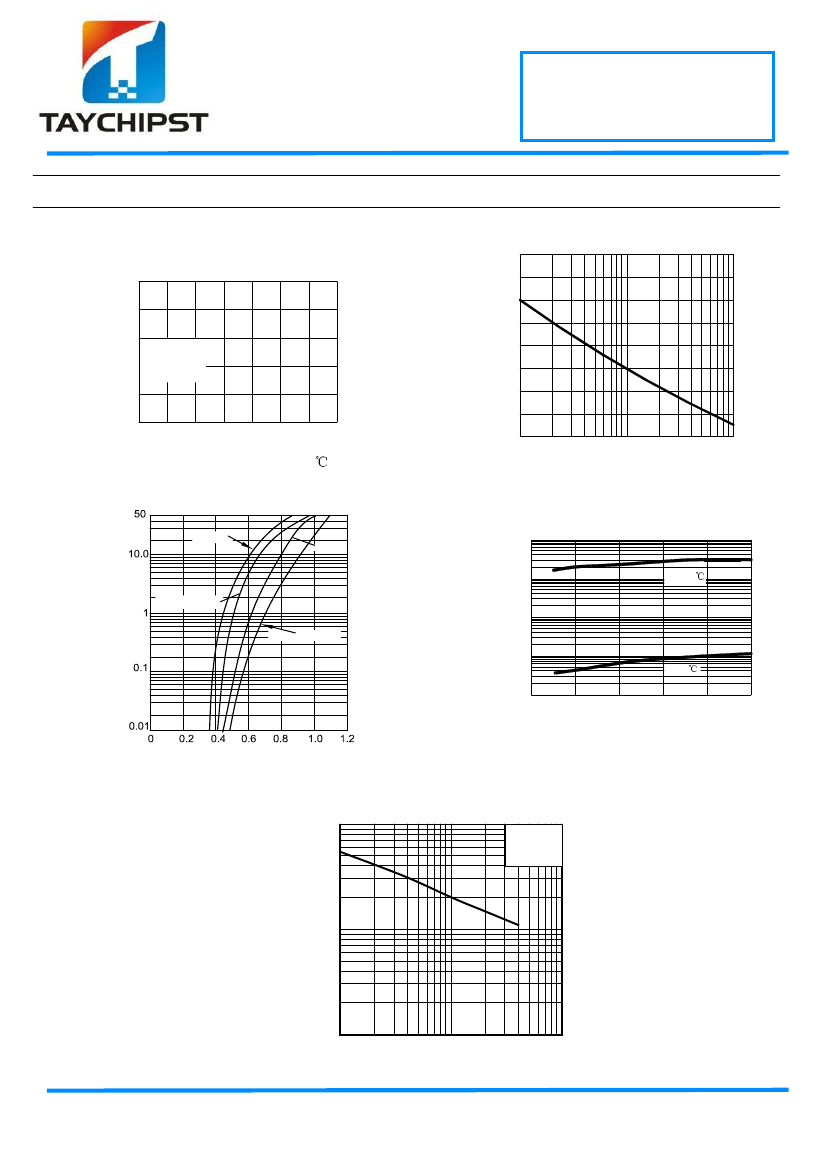

RATINGS AND CHARACTERISTIC CURVES
FIG.1 -- FORWARD DERATING CURVE
1.25
MBRX120 THRU MBRX1A0
FIG.2-- PEAK FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT,AMPERES
AVERAGE FORWARD
CURRENT,AMPERES
20
1.0
0.75
0.5
0.25
Single Phase
Half Wave 60H
Z
Resistive or
Inductive Load
10
0
0
25
50
75
100
125
150
175
0
1
2
4
8 10
20
40
60 80 100
JUNCTION TEMPERATURE
FIG.3 -- TYPICAL FORWARD CHARACTERISTICS
NUMBER OF CYCLES AT 60Hz
FIG.4 -- TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS FORWARD
CURRENT,AMPERES
INSTANTANEOUS REVERSE
CURRENT,MILL AMPERES
MBRX120
100
MBRX160
10
T
J
=125
MBRX130-MBRX140
1.0
MBRX180-MBRX1A0
0.1
T
J
=25
.01
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE,
FIG.5--TYPICAL JUNCTION CAPACITANCE
100
f
=
1 MHz
JUNCTION CAPACITANCE,pF
Ta
=
25°C
10
1
1
10
100
REVERSE VOLTAGE,VOLTS
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
