EP5352QI-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> EP5352QI-T

EP5352QI-T: DescriptionSwitching Regulator/Controller, Voltage-mode, 0.5A, 4000kHz Switching Freq-Max, 5 X 4 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, MO-220, QFN-20; CategoryPower/power management The power supply circuit; File Size334KB，16 Pages; ManufacturerAltera (Intel); Environmental Compliance

Download Datasheet Parametric Compare View All

EP5352QI-T Overview

Switching Regulator/Controller, Voltage-mode, 0.5A, 4000kHz Switching Freq-Max, 5 X 4 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, MO-220, QFN-20

EP5352QI-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Altera (Intel)
package instruction	HQCCN, LCC20,.17X.21,25
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES AT 1.8V, 2.5V, 2.7V, 2.8V, 3V, 3.3V AND ALSO IN ADJUSTABLE MODE FROM 0.6V TO 5.05
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	2.4 V
Nominal input voltage	3.6 V
JESD-30 code	R-XQCC-N20
length	5 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.5 A
Nominal output voltage	1.2 V
Package body material	UNSPECIFIED
encapsulated code	HQCCN
Encapsulate equivalent code	LCC20,.17X.21,25
Package shape	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG
Certification status	Not Qualified
Maximum seat height	1.15 mm
surface mount	YES
Switch configuration	BUCK
Maximum switching frequency	4000 kHz
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.65 mm
Terminal location	QUAD
width	4 mm

Preview

Download Datasheet

View All

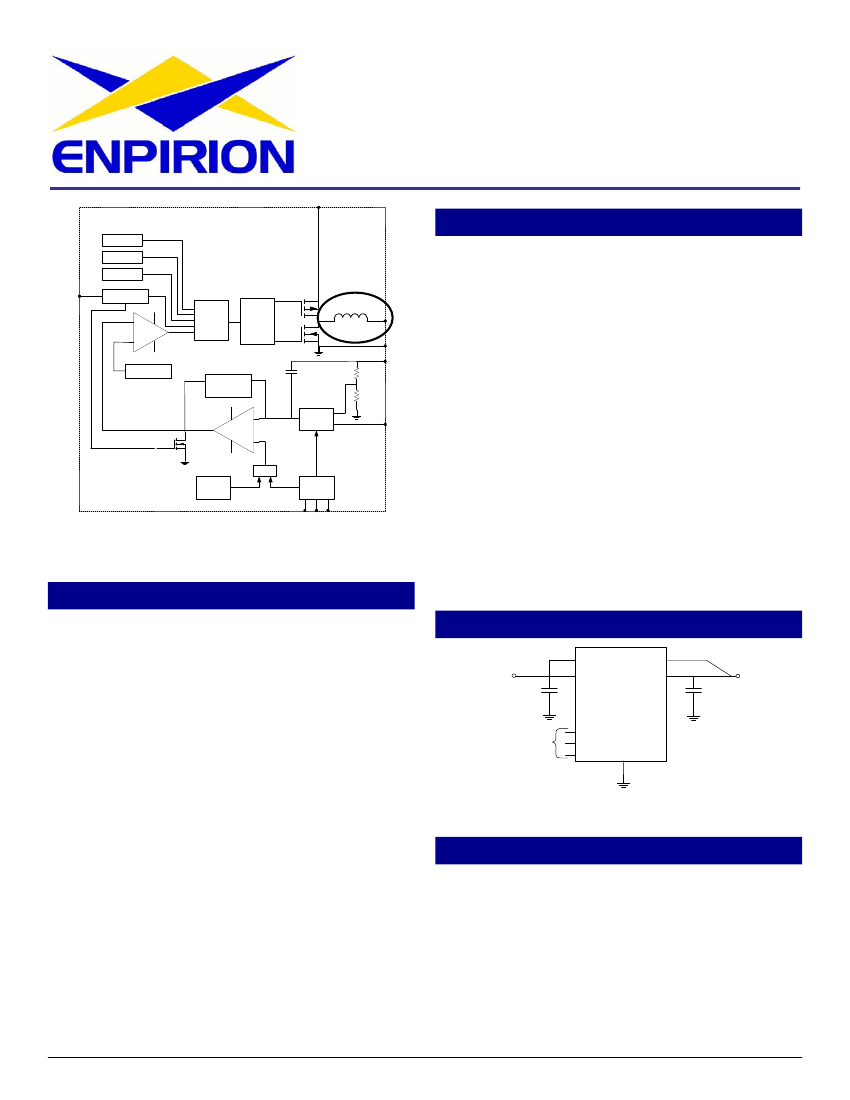

EP5352Q/EP5362Q/EP5382Q

500/600/800mA Synchronous Buck Regulators

With Integrated Inductor

RoHS Compliant

Product Overview

UVLO

Thermal Limit

Current Limit

ENABLE

Soft Start

P-Drive

(-)

PWM

Comp

(+)

Logic

N-Drive

OUT

GND

Sawtooth

Generator

Compensation

Network

SENSE

(-)

Error

Amp

(+)

Switch

DAC

VREF

Voltage

Select

Package Boundry

VS0 VS1 VS2

The Ultra-Low-Profile EP53X2Q product family is

targeted to applications where board area and

profile are critical. EP53X2Q is a complete power

conversion solution requiring only two low cost

ceramic MLCC caps.

Inductor, MOSFETS,

PWM, and compensation are integrated into a

tiny 5mm x 4mm x 1.1mm QFN package. The

EP53x2Q family is engineered to simplify design

and to minimize layout constraints.

High

switching frequency and internal type III

compensation provides superior transient

response. With a 1.1 mm profile, the EP53x2 is

perfect for space and height limited applications.

A 3-pin VID output voltage select scheme

provides seven pre-programmed output voltages

along with an option for external resistor divider.

Output voltage can be programmed on-the-fly to

provide fast, dynamic voltage scaling.

Product Highlights

•

Revolutionary integrated inductor

•

Very small solution foot print*

•

Fully RoHS compliant; MSL 3 260°C reflow

•

Only two low cost components required

•

5mm x 4mm x1.1mm QFN package

•

Wide 2.4V to 5.5V input range

•

500, 600, 800 mA output current versions

•

Less than 1

μA

standby current

•

4 MHz switching frequency

•

Fast transient response

•

Very low ripple voltage; 5mV

p-p

typical

•

3 Pin VID Output Voltage select

•

External divider option

•

Dynamically adjustable output

•

Designed for Low noise/EMI

•

Short circuit, UVLO, and thermal protection

Typical Application Circuit

ENABLE

2.2uF

Sense

out

10μF

OUT

Voltage

Select

GND

Figure 1. Typical application circuit.

Applications

•

Area constrained applications

Mobile multimedia, smartphone & PDA

Mobile and Cellular platforms

VoIP and Video phones

Personal Media Players

FPGA, DSP, IO & Peripherals

*Optimized PCB layout Gerber files downloadable from the Enpirion website to assure first pass design success.

03132

3/6/2009

Rev:A

EP5352QI-T Related Products

	EP5352QI-T
Description	Switching Regulator/Controller, Voltage-mode, 0.5A, 4000kHz Switching Freq-Max, 5 X 4 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, MO-220, QFN-20
Is it Rohs certified?	conform to
Maker	Altera (Intel)
package instruction	HQCCN, LCC20,.17X.21,25
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES AT 1.8V, 2.5V, 2.7V, 2.8V, 3V, 3.3V AND ALSO IN ADJUSTABLE MODE FROM 0.6V TO 5.05
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	2.4 V
Nominal input voltage	3.6 V
JESD-30 code	R-XQCC-N20
length	5 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.5 A
Nominal output voltage	1.2 V
Package body material	UNSPECIFIED
encapsulated code	HQCCN
Encapsulate equivalent code	LCC20,.17X.21,25
Package shape	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG
Certification status	Not Qualified
Maximum seat height	1.15 mm
surface mount	YES
Switch configuration	BUCK
Maximum switching frequency	4000 kHz
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.65 mm
Terminal location	QUAD
width	4 mm
