C917U520JYSDBA7317 datasheet, PDF

Datasheet> All Categories > Passive components> C917U520JYSDBA7317

C917U520JYSDBA7317: Descriptionceramic disc capacitors 250volts 52pf 5% SL; CategoryPassive components; File Size2MB，16 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C917U520JYSDBA7317 Overview

ceramic disc capacitors 250volts 52pf 5% SL

C917U520JYSDBA7317 Parametric

Parameter Name	Attribute value
Manufacture	Keme
Product Category	Ceramic Disc Capacitors
Capacitance	52 pF
Voltage Rating	250 V
Tolerance	5 %
Temperature Coefficient / Code	SL
Lead Spacing	7.5 mm
Case Diamete	8 mm
Packaging	Ammo Pack
Produc	AC Line Rated Class X1/Y2 Capacitors
Factory Pack Quantity	1000
Termination Style	Radial

Preview

Download Datasheet

View All

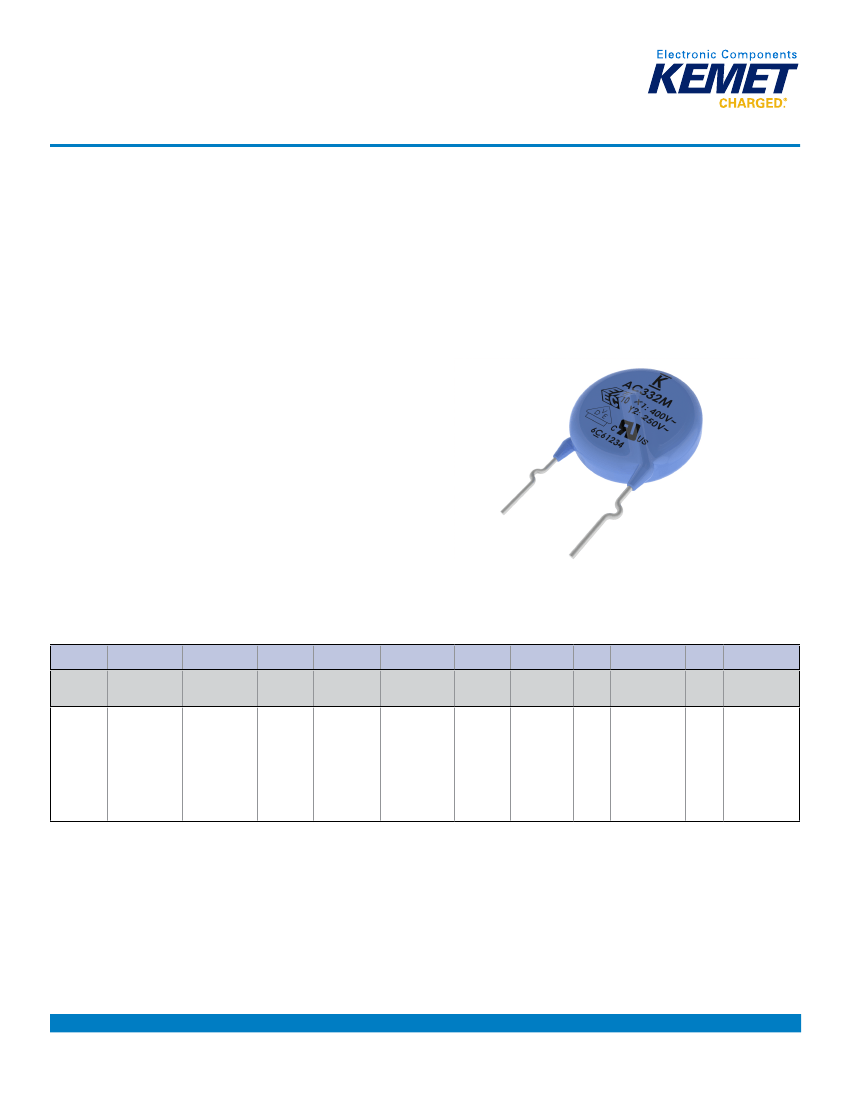

Radial Leaded Ceramic Disc Capacitors

Safety Standard Recognized, C900, Encapsulated,

AC Type, X1 400 VAC/Y2 250 VAC (Industrial Grade)

Overview

KEMET’s 900 encapsulated radial leaded ceramic disc

capacitors are specifically designed for interference-sup-

pression AC line filtering applications. Having internation-

ally recognized safety certifications, these capacitors are

well-suited for applications that require keeping potentially

disruptive or damaging line transients and EMI out of sus-

ceptible equipment. They are also an ideal solution when

needing to suppress line disturbances at the source.

Safety Certified Capacitors are classified as either X and/

or Y capacitors. Class X capacitors are primarily used in

line-to-line (across-the-line) applications. In this applica-

tion, there is no danger of electric shock to humans should

the capacitor fail, but could result in a risk of fire. The class

Y capacitor is primarily used in line-to-ground (line by-pass)

applications. In this application, failure of the capacitor

could lead to danger of electric shock.

With a working voltage of 400 VAC in line-to-line (Class X)

and 250 VAC in line-to-ground (Class Y) applications, these

safety capacitors meet the impulse test criteria outlined in

IEC Standard 60384. Meeting subclass X1 and Y2 require-

ments, these devices are certified to withstand impulses up

to 4 KV (X1) and 5 KV (Y2) respectively. These encapsulated

devices also meet the flame test requirements outlined in UL

Standard 94V–0.

Click image above for interactive 3D content

Ordering Information

Ceramic

Series

C9 =

Ceramic

900

Open PDF in Adobe Reader for full functionality

Body

Diameter

0 = 7.0 mm

1 = 8.0 mm

2 = 9.0 mm

3 = 10.0 mm

4 = 11.0 mm

6 = 13.0 mm

8 = 15.0 mm

Lead

Spacing

1,2,4

5 = 5.0 mm

7 = 7.5 mm

1 = 10.0 mm

Spec.

Safety

103

Lead

Config.

1,3,4

A = Straight

B = Vertical

Kink

C = Outside

Kink

D = Inside

Kink

Failure

Rate

N/A

7317

Packaging

(C-Spec)

See

"Packaging

C-Spec

Ordering

Options

Table"

below

Capacitance Capacitance

Code (pF)

Tolerance

Two

significant

digits and

number of

zeroes

J = ±5%

K = ±10%

M = ±20%

Rated

Dielectric/

Design

Voltage Temp. Char.

X1 400

VAC/

Y2 250

VAC

S = SL

Y = Y5P

W = Y5U

V = Y5V

Disc

Due to a high risk of arcing, "Inside Kink" lead configuration cannot be combined with the 5 mm lead spacing option. The "Inside Kink" option is only

available on capacitors with lead spacing of 7.5 mm or greater. A potential for arcing may exist when combining the "Inside Kink" lead configuration

with a 7.5 mm lead spacing option, especially in high humidity environments and/or when exposure to voltages and transients may impact creepage

and clearance requirements.

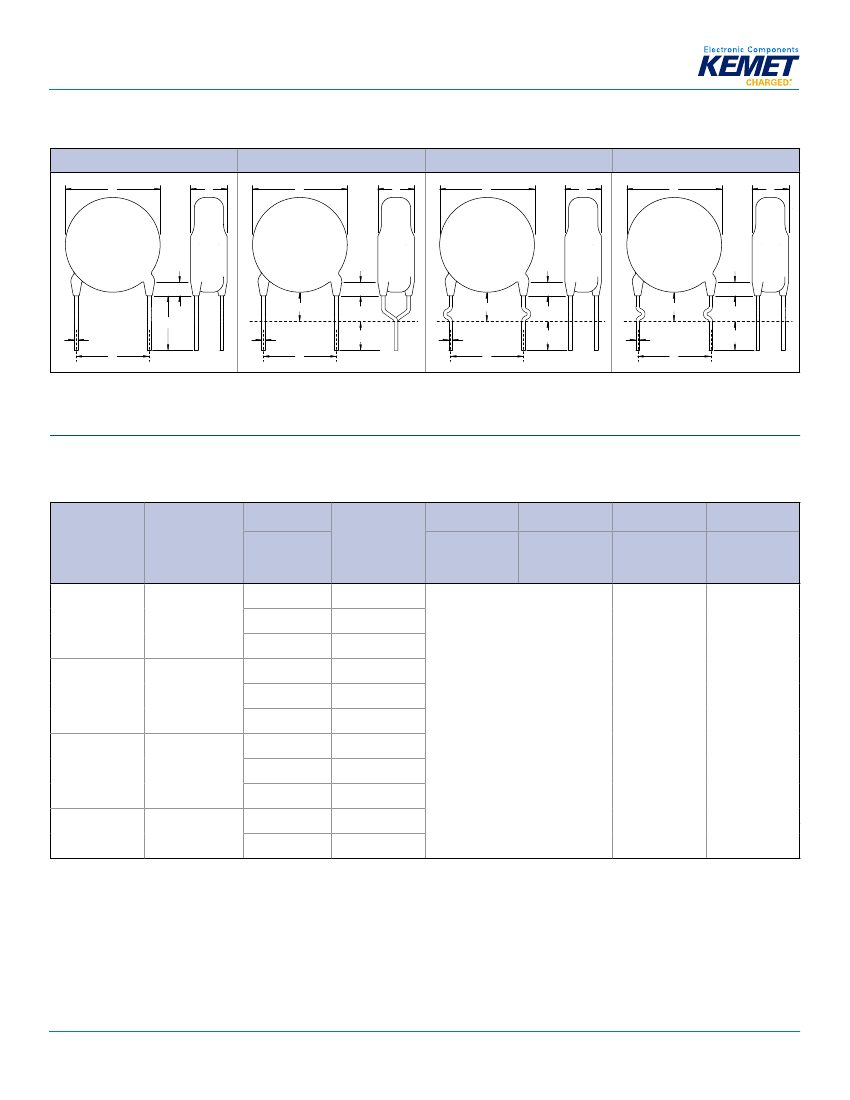

Capacitor body diameter will limit available lead spacing and packaging options. See "Dimensions" and "Product Ordering Codes and Ratings" sections

of this document to determine availability.

"Vertical Kink", "Outside Kink" and "Inside Kink" lead configurations cannot be combined with the bulk/20 mm lead length option (WL20). 20 mm lead

length is only available on capacitors with straight leads (lead configuration ordering code "A"). For nonstandard lead length inquiries, please contact

KEMET.

Bulk packaging lead length availability is dependent upon "Lead Configuration" and "Lead Spacing." See "Dimensions" section of this document to

verify availability of a specific lead length option. For nonstandard lead length inquiries, please contact KEMET.

One world. One KEMET

C1064_X1_400 VAC_Y2_250 VAC • 8/4/2017
