ECS-FREQ4-S-7SX-C-G-L-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-FREQ4-S-7SX-C-G-L-TR

ECS-FREQ4-S-7SX-C-G-L-TR: DescriptionSeries - Fundamental Quartz Crystal, 10MHz Min, 35.999MHz Max, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size162KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-FREQ4-S-7SX-C-G-L-TR Overview

Series - Fundamental Quartz Crystal, 10MHz Min, 35.999MHz Max, ROHS COMPLIANT, SMD, 4 PIN

ECS-FREQ4-S-7SX-C-G-L-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	10 ppm
Installation features	SURFACE MOUNT
Maximum operating frequency	35.999 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L12.5XB4.6XH3.7 (mm)/L0.492XB0.181XH0.146 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

Low Profile

Industry Standard Footprint

Extended Temp. Range Option

RoHS Compliant

ECX-3SX

SMD QUARTZ CRYSTAL

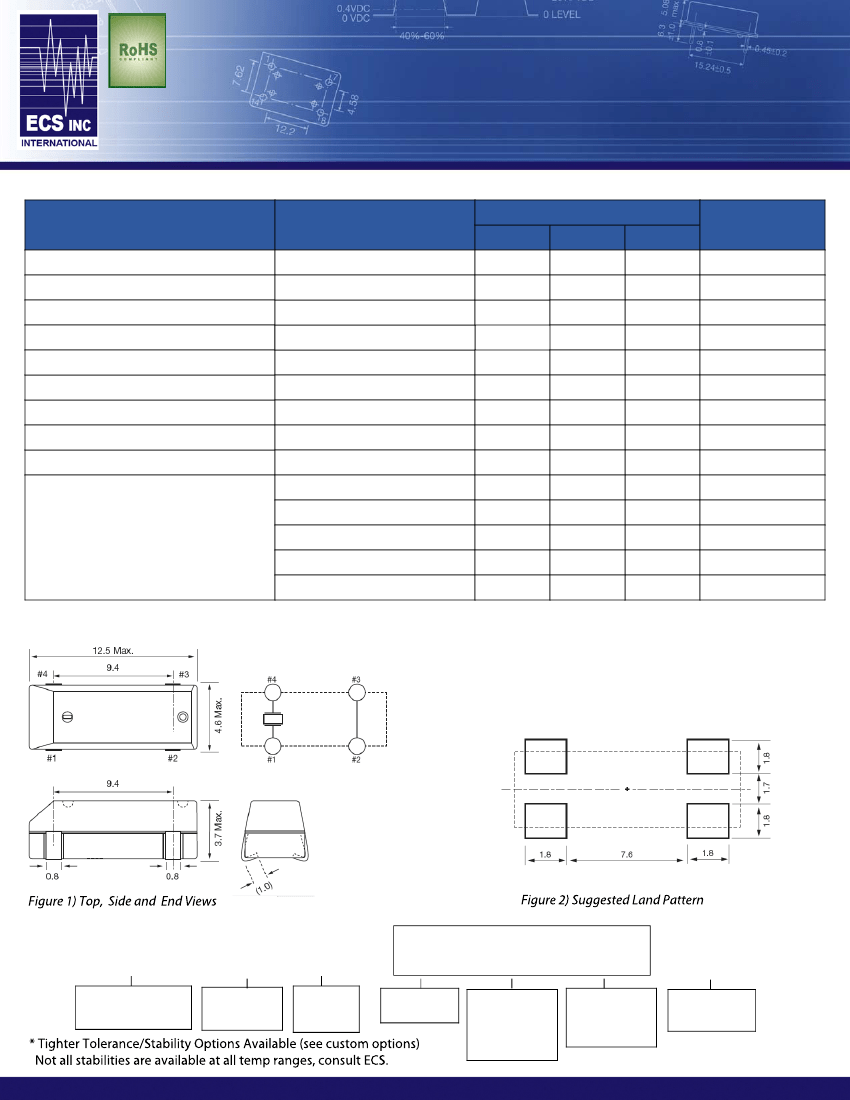

The wide frequency range SMD quartz crystal is an excellent

choice for surface mount applications. The ruggedized

moulded package is made from the same thermoplastic that

is an industry standard for integrated circuits.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability (ref @ 25°C)

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging Characteristics (Per Year)

opr

stg

@ +25°C ± 3°C

3.57 ~ 3.999 MHz (Fund)

4.00 ~ 5.999 MHz (Fund)

Equivalent Series Resistance/

Mode of Oscillation

6.00 ~ 9.999 MHz (Fund)

10.00 ~ 35.999 MHz (Fund)

27.00 ~ 70.00 MHz (3rd OT)

-10

-40

Specify in P/N

100

+70

+85

±5

200

150

100

CONDITIONS

@ +25°C

-10 ~ +70°C

ECX-3SX

MIN

3.570

TYP

MAX

70.000

± 30 *

± 50 *

7.0

UNITS

MHz

ppm

µW

°C

ppm

Ω

PACKAGE DIMENSIONS (mm)

PART NUMBERING GUIDE: Example ECS-160-20-7SX-TR

ECS - Frequency Abbreviation - Load -

160 = 16.000 MHz

See P/N Guide for

Std Frequencies

20 = 20.0 pF

S = Series

Custom Options

- Tolerance

A = ± 25 ppm

C = ± 10 ppm

Package Type

-7SX =

ECX-3SX

Stability - Temp Range

D = ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40~+105°C

Packaging

-TR =

Tape & Reel

1K/Reel

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
