85896-101,11 datasheet, PDF - EEWORLD Datasheet

85896-101,11: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85896-101,11 Overview

Board Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL
Contact completed and terminated	TIN LEAD (315)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85896
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

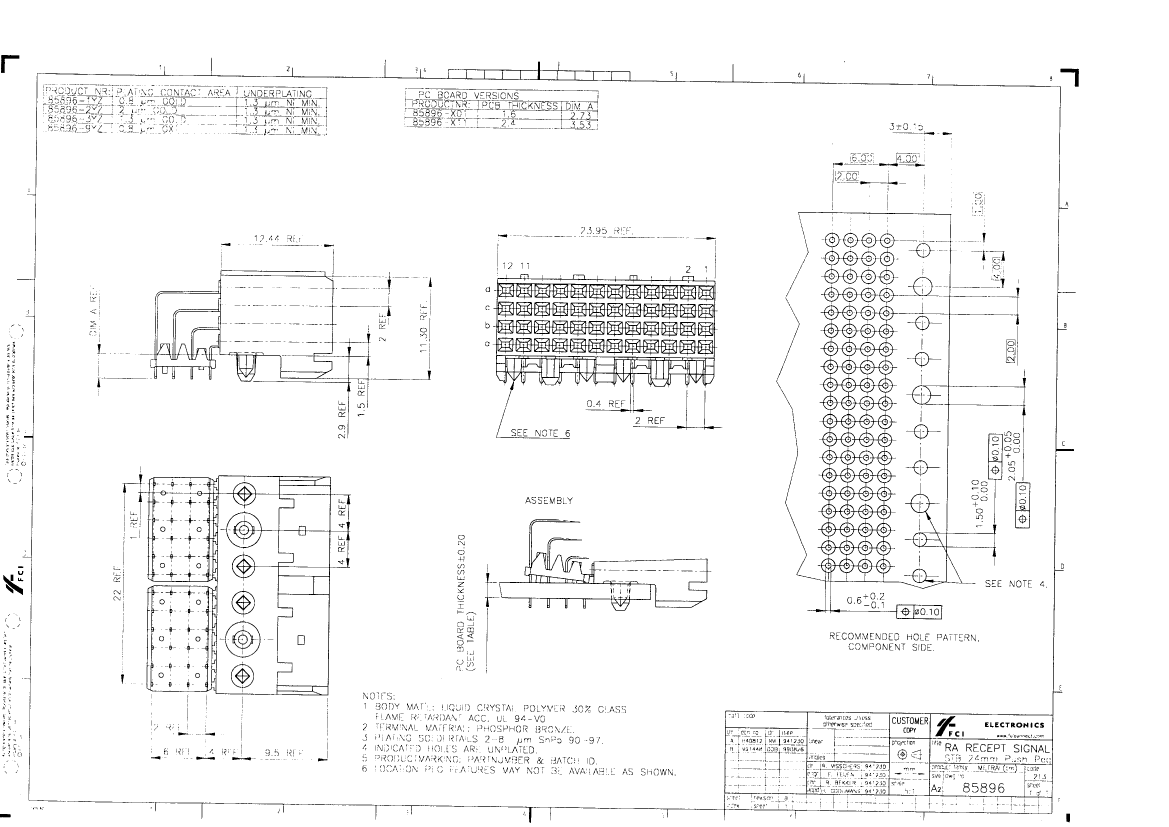

PDM: Rev:B

STATUS:

Released

Printed: May 19, 2011

.

	85896-101,11	85896-201,11	85896-301,11	85896-901,11
Description	Board Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 48 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL	GOLD (79) OVER NICKEL	GOLD (51) OVER NICKEL	GOLD FLASH (31) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)	TIN LEAD (315)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	85896	85896	85896	85896
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	48	48	48
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
