Pomona
®
Model 5772 & 5772-2
128 Pin EIAJ QFP Test Clip
0.80 mm Lead Pitch
These new test clips provide the user with an
easy means to connect instrumentation to the
fine pitch Plastic QFP chip leads.
•
•
•
•
Interfaces with high density EIAJ QFP
surface mount chip leads.
Two stage alignment assures positive
connections.
Gold plated connector pins and contacts
assure noise free connections.
Gold plated .025" square pins provide easy
connection with either ribbon cable or
discrete jumpers.
Pomona's EIAJ test clips are perfect for system design, field service testing, failure analysis, and for use with
logic analyzers.
Other clips are also available in other sizes to fit the most popular EIAJ chips now in use.
Pomona offers a test clip to fit the most commonly found variations on the EIAJ specifications.

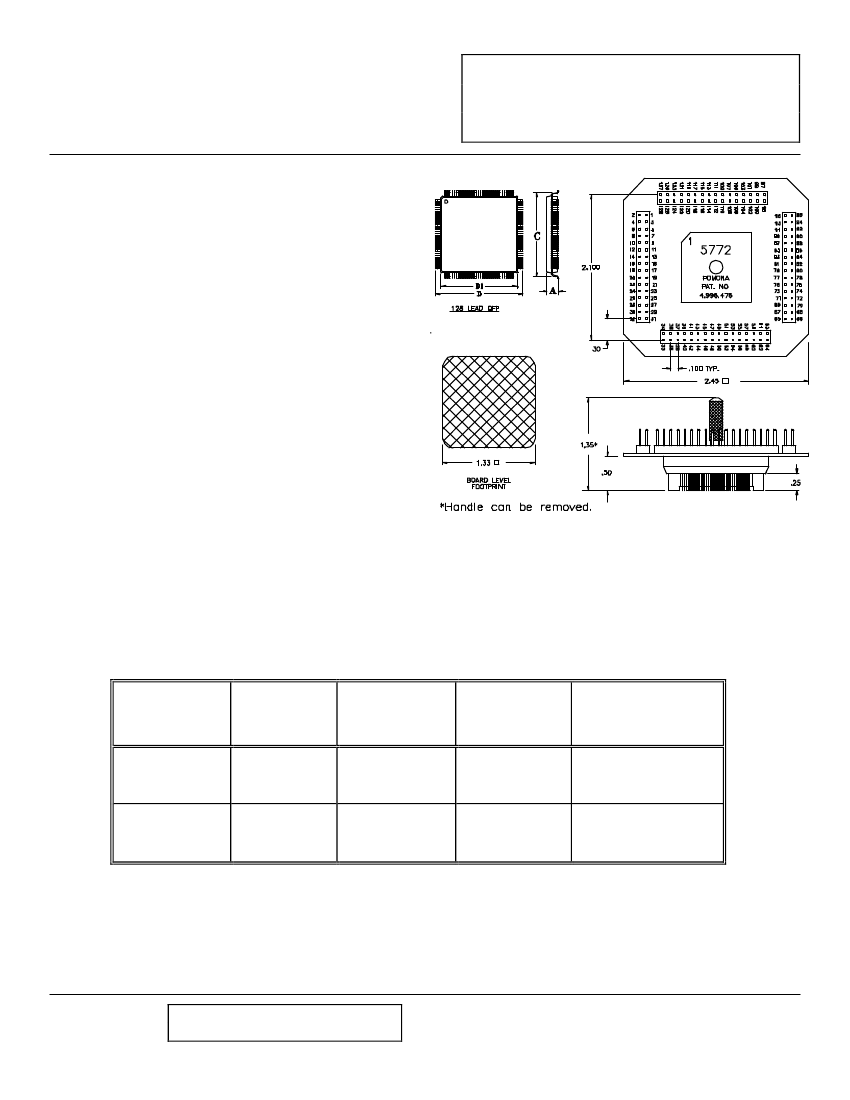

Critical
Dimension
C
30.3 mm
1.193"
29.6 mm
1.165"
Leads
D
31.9 mm
31.2 mm
Body
D1
28 mm
28 mm
Footprint
D-D1
3.9 mm
3.2 mm
Pomona
Part Number
5772
5772-2
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
