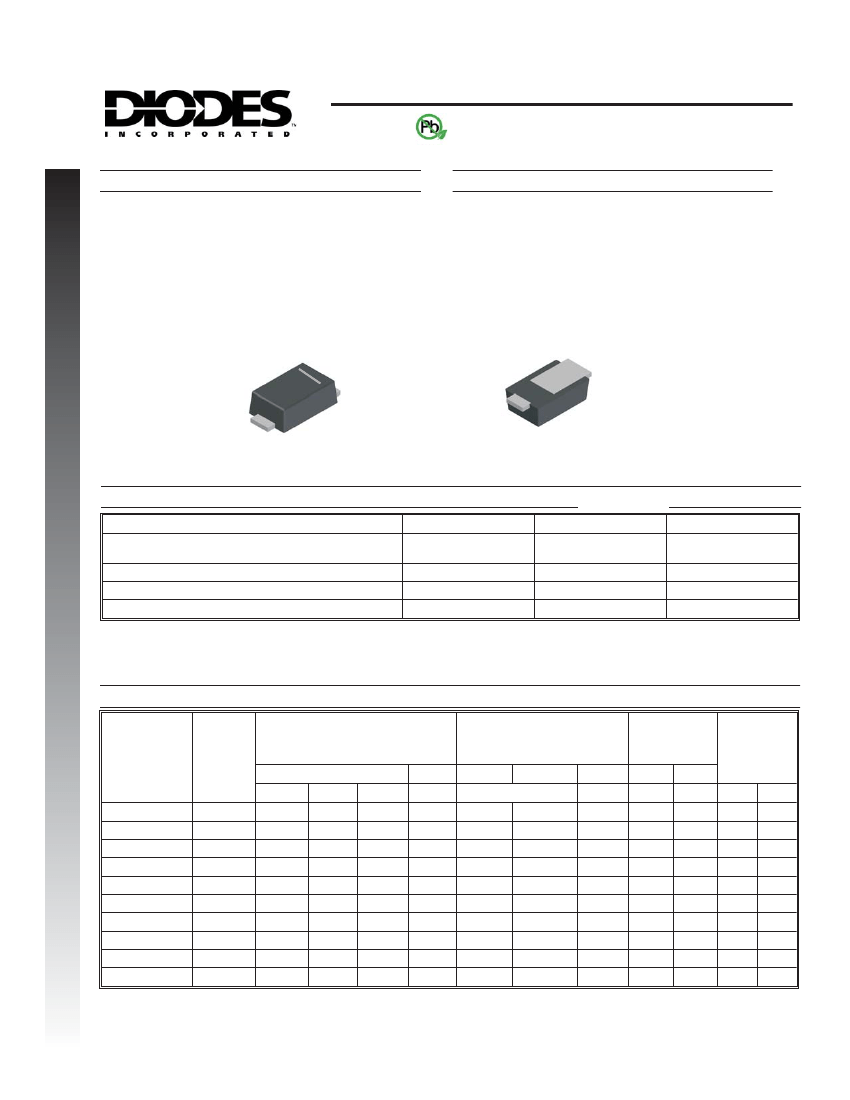

PD3Z284C5V1 - PD3Z284C12
Lead-free Green
0.5W SURFACE MOUNT ZENER DIODE
PowerDI
ä
323
Features
Mechanical Data
·
·
·
·
·
·
·
Case: PowerDI
ä
323
Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish
¾
Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Marking: Date Code & Type Code, See Page 3
Weight: 0.005 grams (approximate)
NEW PRODUCT
·
·
·
·
·
Planar Die Construction
Ultra-Small Surface Mount Package
Lead Free By Design, RoHS Compliant (Note 1)
"Green" Molding Compound (No Br, Sb)
Qualified to AEC-Q101 Standards for High Reliability
TOP VIEW
BOTTOM VIEW
Table 1
Value
0.9
1.1
500
250
-65 to +150
Unit
V
mW
°C/W
°C
Maximum Ratings
Forward Voltage
Power Dissipation (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
@ I
F
= 100mA
V
F
P
d
R
qJA
T
j,
T
STG
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 2)
Operating and Storage Temperature Range
Notes:
1. No purposefully added lead.
2. Part mounted on polymide PC board with recommended pad layout, as per http://www.diodes.com/datasheets/ap02001.pdf.
Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Maximum Zener Impedance
(Note 4)
I
ZT
Max (V)
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
(mA)
5
5
5
5
5
5
5
5
5
5
60
40
10
15
10
10
10
10
10
10
Z
ZT
@ I
ZT
Z
ZK
@ I
ZK
W
480
400
150
80
80
80
100
150
150
150
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Table 2
Maximum
Reverse
Current
(Note 3)
I
R
uA
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
V
R
V
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
Temperature
Coefficient of
Zener Voltage
@ I
ZT
= 5mA
mV/°C
Min
-2.7
-2.0
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
Max
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
Type
Number
Marking
Code
Zener Voltage Range
(Note 3)
V
Z
@ I
ZT
Nom (V)
Min (V)
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
PD3Z284C5V1
PD3Z284C5V6
PD3Z284C6V2
PD3Z284C6V8
PD3Z284C7V5
PD3Z284C8V2
PD3Z284C9V1
PD3Z284C10
PD3Z284C11
PD3Z284C12
Notes:
Z0G, 0G
Z0H, 0H
Z0K, 0K
Z0L, 0L
Z0M, 0M
Z0N, 0N
Z0P, 0P
Z0Q, 0Q
Z0R, 0R
Z0S, 0S
3. Short duration test pulse used to minimize self-heating effect.
4. f = 1kHz.
DS30702 Rev. 7 - 2
1 of 4
www.diodes.com
PD3Z284C5V1 - PD3Z284C12
ã
Diodes Incorporated
600
50
Note 2
T
j
= 25°C
C12
C5V6
C6V2
NEW PRODUCT
P
D
, POWER DISSIPATION (mW)
500
40
400
I
Z
, ZENER CURRENT (mA)
30
300
20
200
100
10
Test Current I
Z
5.0mA
0
0
40
80
120
160
200
0
0
8
6
12
10
4
V
Z
, ZENER VOLTAGE (V)

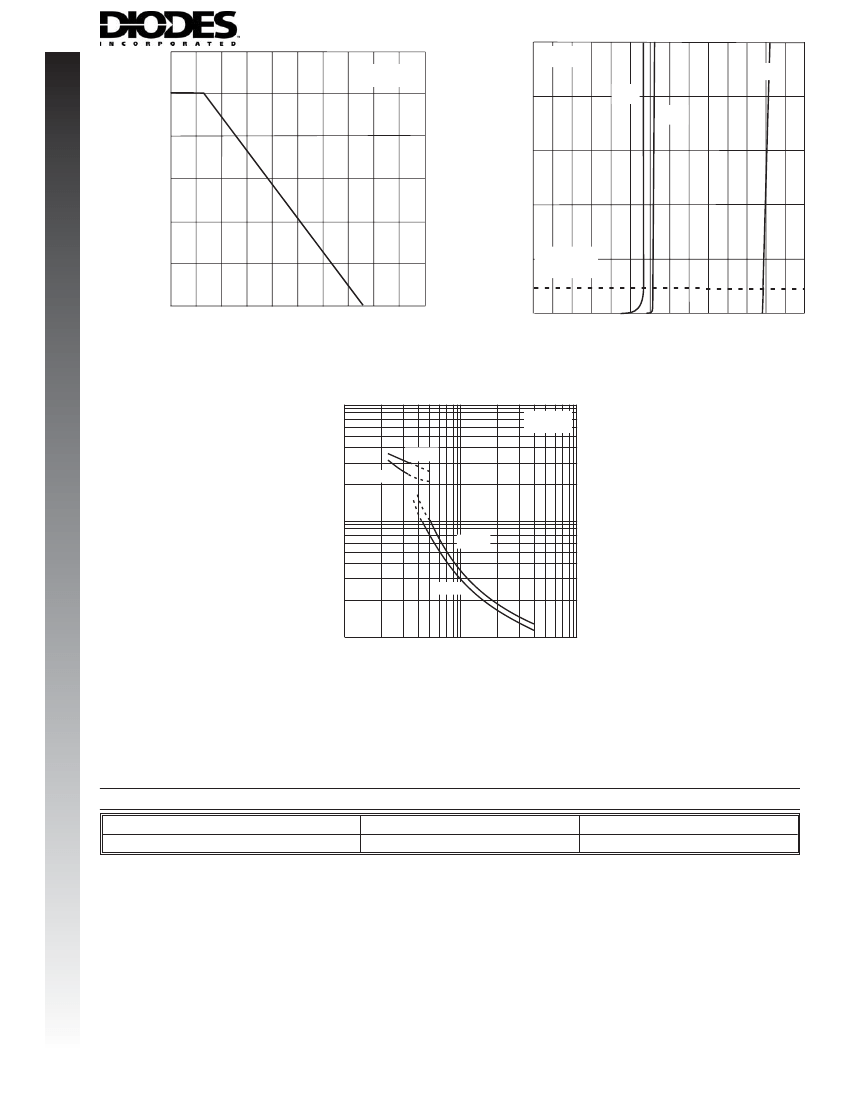

Fig. 2 Zener Breakdown Characteristics
2
14
T
A
, AMBIENT TEMPERATURE, °C
Fig. 1 Power Derating Curve
1000
T
j
= 25 °C
f = 1MHz
V
R
= 1V
V
R
= 2V
C
T
, TOTAL CAPACITANCE (pF)
100
V
R
= 1V
V
R
= 2V
10
1
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 3 Total Capacitance vs Nominal Zener Voltage
Ordering Information
Device
(Type Number)-7*
Notes:
(Note 5)
Packaging
PowerDI 323
ä
Table 3
Shipping
3000/Tape & Reel
5. *Add “-7” to the appropriate type number in Table 1 above example: 6.2V Zener = PD3Z284C6V2-7.
6. For Packaging Details, go to our website at: http://www.diodes.com/datasheets/ap02007.pdf.
DS30702 Rev. 7 - 2
2 of 4
www.diodes.com
PD3Z284C5V1 - PD3Z284C12
