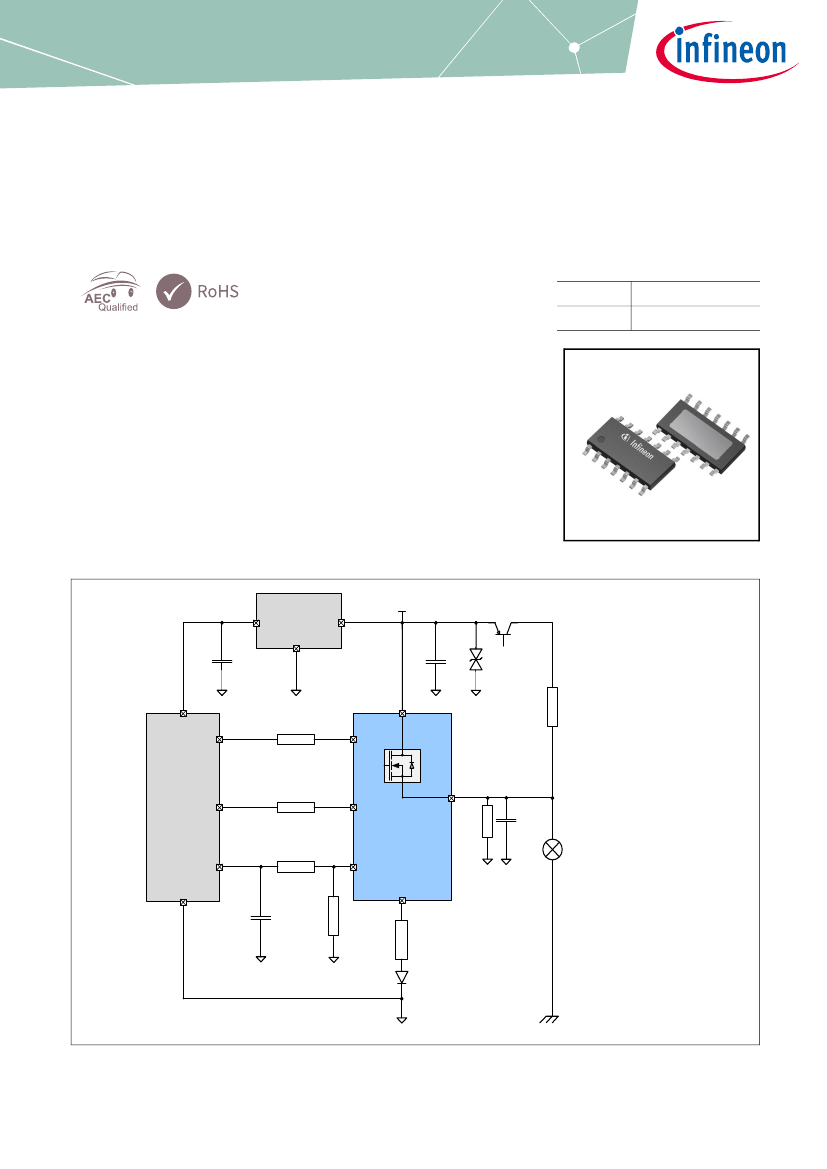

PROFET™ +24 V
BTT6010-1ERB
Smart High-Side Power Switch, Single Channel 10 mΩ
Package
Marking
PG-TDSO-14
6010-1ERB
1
Application
•
•
•
•
Overview
Suitable for resistive, inductive and capacitive loads
Replaces electromechanical relays, fuses and discrete circuits
Most suitable for loads with high inrush current, such as lamps
Suitable for 12 V and 24 V truck and transportation system
Voltage Regulator
OUT
GND
C
VDD
C
VS
D
Z
VS
V
BAT
T
1
R
OL
VDD
GPIO
R
DEN
DEN
VS
Microcontroller
OUT
GPIO
R
IN
IN
R
PD
C
OUT
Bulb
ADC IN
GND
R
SENSE
IS
GND
C
SENSE
R
IS
R
GND
D
Applicat ion_example_Single.emf
Application Diagram with BTT6010-1ERB
Datasheet
www.infineon.com
Rev. 1.00
2019-03-09
PROFET™ +24 V
BTT6010-1ERB
Overview
Basic Features
•
•
•
•
•
•
•
•
One channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent of load ground
Very low power DMOS leakage current in OFF state
Green product (RoHS compliant) and AEC qualified
Description
The BTT6010-1ERB is a 10 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14,
Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an
N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is
specially designed to drive lamps up to 5 x P21W 24V or 1x H55W 12V, as well as LEDs in the harsh automotive
environment.
Table 1
Parameter
Operating voltage range
Maximum supply voltage
Maximum ON state resistance at
T
J
= 150°C
Nominal load current
Typical current sense ratio
Minimum current limitation
Maximum standby current with load at
T
J
= 25°C
Diagnostic Functions
•
•
•
•
•
•
Proportional load current sense
Open load in ON and OFF
Short circuit to battery and ground
Overtemperature
Stable diagnostic signal during short circuit
Enhanced
k
ILIS
dependency with temperature and load current
Product Summary
Symbol
V
S(OP)
V
S(LD)
R
DS(ON)
I
L(NOM)
k
ILIS
I
L5(SC)
I
S(OFF)
Value
5 V ... 36 V
66 V
22 mΩ
9A
3900
68 A
1.4 µA
Protection Functions
•
•
•
•
•
•
•
Stable behavior during undervoltage
Reverse polarity protection with external components
Secure load turn-off during logic ground disconnect with external components
Overtemperature protection with latch
Overvoltage protection with external components
Voltage dependent current limitation
Enhanced short circuit operation for up to 40 m cables
2
Rev. 1.00
2019-03-09
Datasheet
PROFET™ +24 V
BTT6010-1ERB
Pin Configuration
3
3.1
Pin Configuration
Pin Assignment
NC
NC
GND
IN
DEN
IS
NC
1
2
3
4
5
6
7
14
13
12
11
10
9
8
NC
NC
OUT
OUT
OUT
NC
NC
Pinout single SO14.vsd
Figure 2
Pin Configuration
3.2
Table 2
Pin
Cooling Tab
3
4
5
6
10, 11, 12
Pin Definitions and Functions
Pin Definitions and Functions
Symbol Function
VS
GND
IN
DEN
IS
OUT
Voltage Supply;
Battery voltage
Not Connected;
No internal connection to the chip
GrouND;
Ground connection
INput channel;
Input signal for channel activation
Diagnostic ENable;
Digital signal to enable/disable the diagnosis of the device
Sense;
Sense current of the selected channel
OUTput;
Protected high side power output channel
1)
1, 2, 7, 8, 9, 13, 14 NC
1) All output pins must be connected together on the PCB. All pins of the output are internally connected together. PCB
traces have to be designed to withstand the maximum current which can flow.
Datasheet
4
Rev. 1.00
2019-03-09
PROFET™ +24 V
BTT6010-1ERB
Pin Configuration
3.3
Voltage and Current Definition
Figure 3
shows all terms used in this data sheet, with associated convention for positive values.
V
S
I
IN
V
IN
I
DEN
V
DEN
I
IS
V
IS
IN
VS
I
VS
V
DS
I
OUT
DEN
OUT
IS
GND
I
GND
V
OUT
voltage and current convention single.vsd
Figure 3
Voltage and Current Definition
Datasheet
5
Rev. 1.00
2019-03-09
