PT08SE-16-8PY datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PT08SE-16-8PY

Preview

PT08SE-16-8PY: DescriptionMIL Series Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT08SE-16-8PY Overview

MIL Series Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

PT08SE-16-8PY Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Factory Lead Time	7 weeks 1 day
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 10-314980-16P
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	CRIMP
Total number of contacts	8

Preview

Download Datasheet

View All

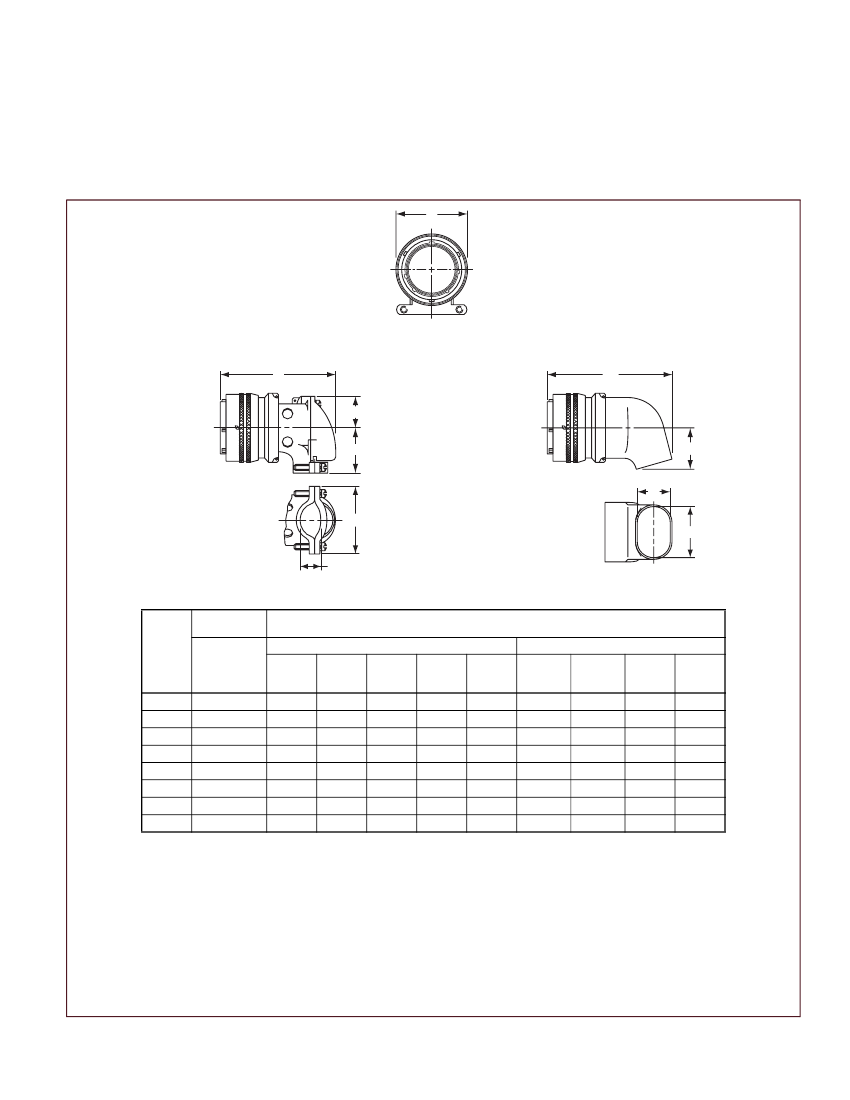

PT08 SE

SP08 SE

90 degree plug

G

TERMINATION ASSEMBLIES

“SE” Open Wire Seal, “SE” (SR) Strain Relief

“SP” Potting Boot 75 degrees

L

E

B

A

PT08SE-XX-XXX

SP08SE-XX-XXX

PT08SE-XX-XXX (SR)

SP08SE-XX-XXX (SR)

PT08SP-XX-XXX

SP08SP-XX-XXX

H

D

K

C

To complete part number see how to order on page 39.

All lockwire holes are .044 Dia. Min.

Plug

Front View

Class “SE”, “SE” (SR)

Shell

Size

G

Dia.

Max.

B

±.031

C

+.010

–.025

D

±.062

E

+.047

–.025

L

Max.

A

±.025

Plug

Side View

Class “SP”

H

±.015

K

±.015

L

Max.

10

12

14

16

18

20

22

24

.921

1.046

1.171

1.297

1.422

1.562

1.672

1.797

.749

.812

.905

1.030

1.015

1.077

1.139

1.250

.170

.264

.310

.330

.444

.510

.515

.656

1.191

1.254

1.316

1.562

1.625

1.719

1.750

.393

.450

.519

.583

.621

.683

.739

.787

2.137

2.222

2.370

2.572

2.680

2.753

2.799

3.037

.547

.625

.734

.750

.781

.859

.906

1.181

.438

.516

.625

.656

.703

.766

.812

.918

.562

.688

.781

.890

1.000

1.125

1.234

1.374

2.031

2.093

2.203

2.250

2.296

2.343

2.390

2.624

All dimensions for reference only.
