LPC-46T4M2: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

LPC-46T4M2 Overview

Board Connector, 46 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

LPC-46T4M2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.079 inch
body length	1.811 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	46

Preview

Download Datasheet

View All

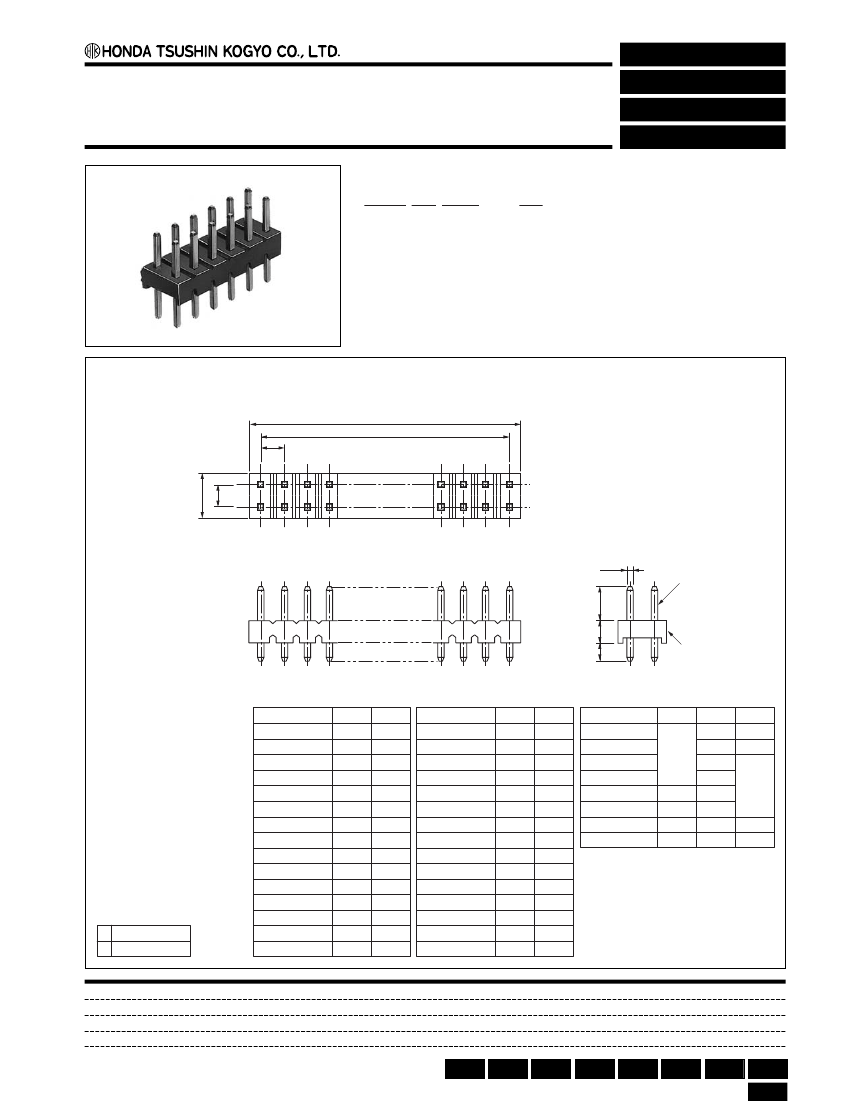

2 mm pitch connectors

Straight DIP type male connector for PCBs

LPC-( )(T )M2( )

●

Configuration of product Part No.

For PCBs

Straight DIP

LPC- ( ) (T ) M2 ( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 2-60

➂

Length No. of contact:

Refer to the table of dimensions below.

➃

Contact plating

Blank: Tin/Lead plating

: Gold plating

œ0.5

™

●

Dimensions

Part No.

LPC-2(T )M2( )

LPC-4(T )M2( )

LPC-6(T )M2( )

LPC-8(T )M2( )

LPC-10(T )M2( )

LPC-12(T )M2( )

LPC-14(T )M2( )

LPC-16(T )M2( )

LPC-18(T )M2( )

LPC-20(T )M2( )

LPC-22(T )M2( )

LPC-24(T )M2( )

LPC-26(T )M2( )

LPC-28(T )M2( )

LPC-30(T )M2( )

Because some combinations of

“Configurations of Product Part

No.”, are under consideration

for development, please contact

us for availability details.

●

Components

➀

Insulator

➁

Contacts

Part No.

LPC-32(T )M2(

LPC-34(T )M2(

LPC-36(T )M2(

LPC-38(T )M2(

LPC-40(T )M2(

LPC-42(T )M2(

LPC-44(T )M2(

LPC-46(T )M2(

LPC-48(T )M2(

LPC-50(T )M2(

LPC-52(T )M2(

LPC-54(T )M2(

LPC-56(T )M2(

LPC-58(T )M2(

LPC-60(T )M2(

)

Part No.

LPC-( )M2( )

LPC-( )T1M2( )

LPC-( )T2M2( )

LPC-( )T4M2( )

LPC-( )T7M2( )

LPC-( )T11M2( )

LPC-( )T17M2( )

LPC-( )T18M2( )

(2.6)

2.6

(12)

(4.5)

(1)

(2.5)

(14.8)

1.4

(1.8)

3.4

Mating connectors:

LPC series of female connectors or shunt plugs

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

DIP
