KMM332F204BT-L7: DescriptionEDO DRAM Module, 2MX32, 70ns, CMOS, DIMM-72; Categorystorage storage; File Size260KB，6 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KMM332F204BT-L7 Overview

EDO DRAM Module, 2MX32, 70ns, CMOS, DIMM-72

KMM332F204BT-L7 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	DIMM
package instruction	DIMM, DIMM72
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
Spare memory width	16
I/O type	COMMON
JESD-30 code	R-XDMA-N72
memory density	67108864 bit
Memory IC Type	EDO DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	25.4 mm
self refresh	YES
Maximum standby current	0.0008 A
Maximum slew rate	0.202 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

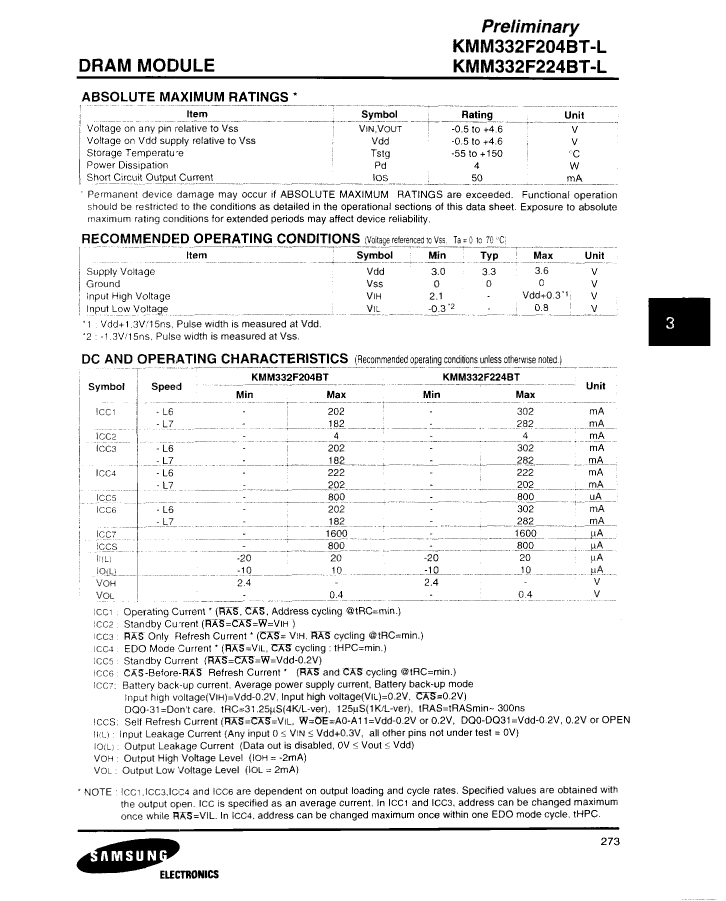

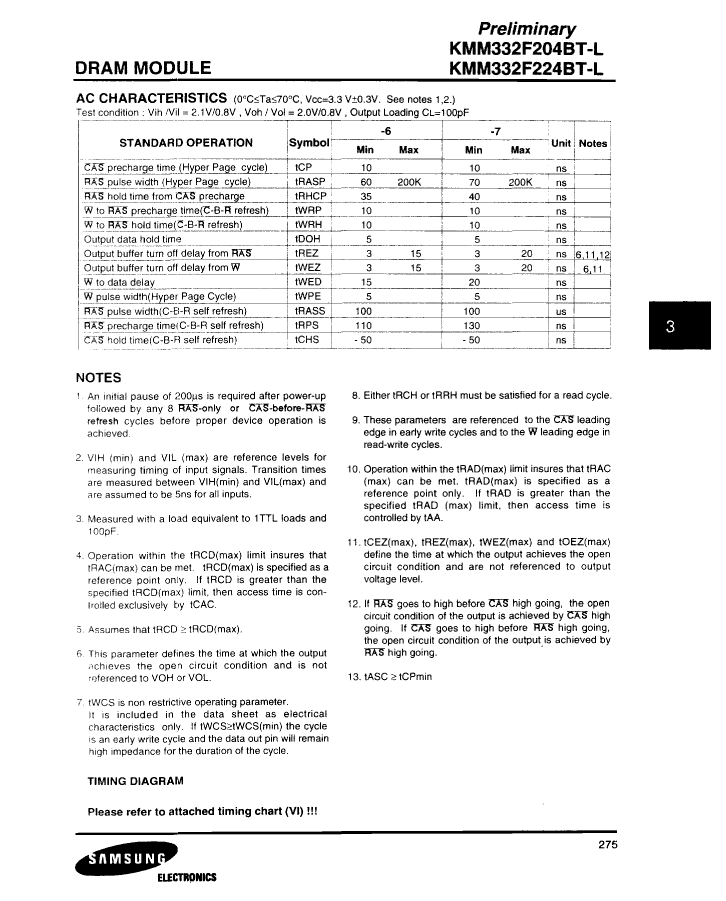

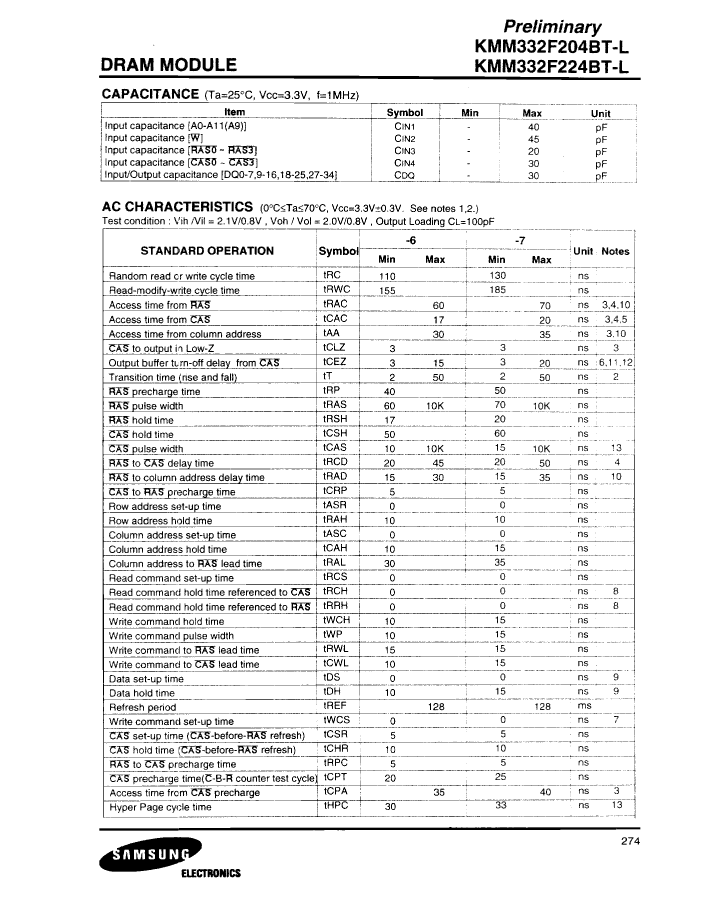

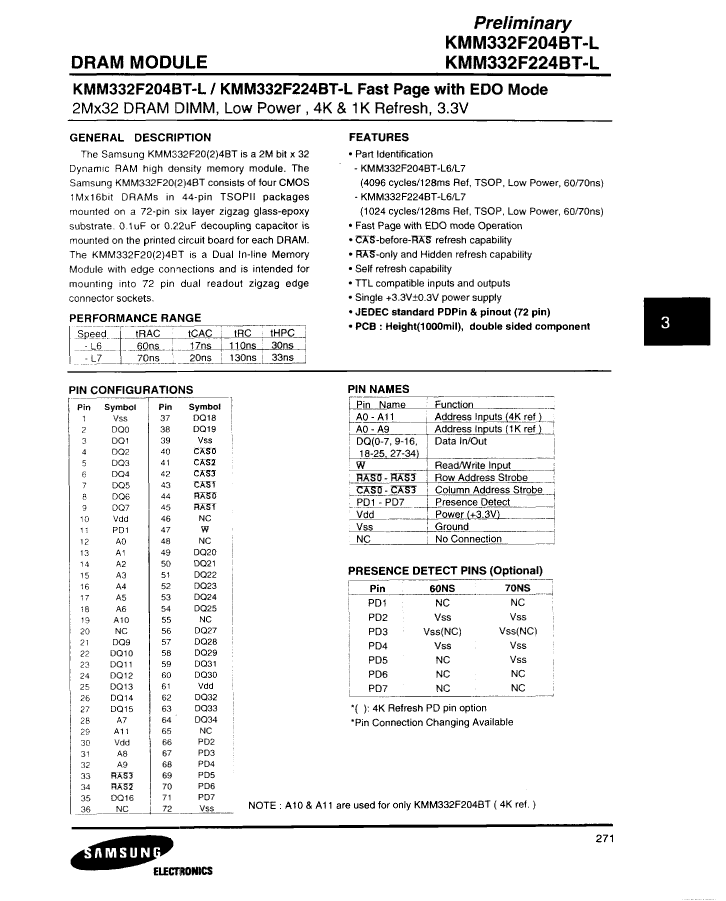

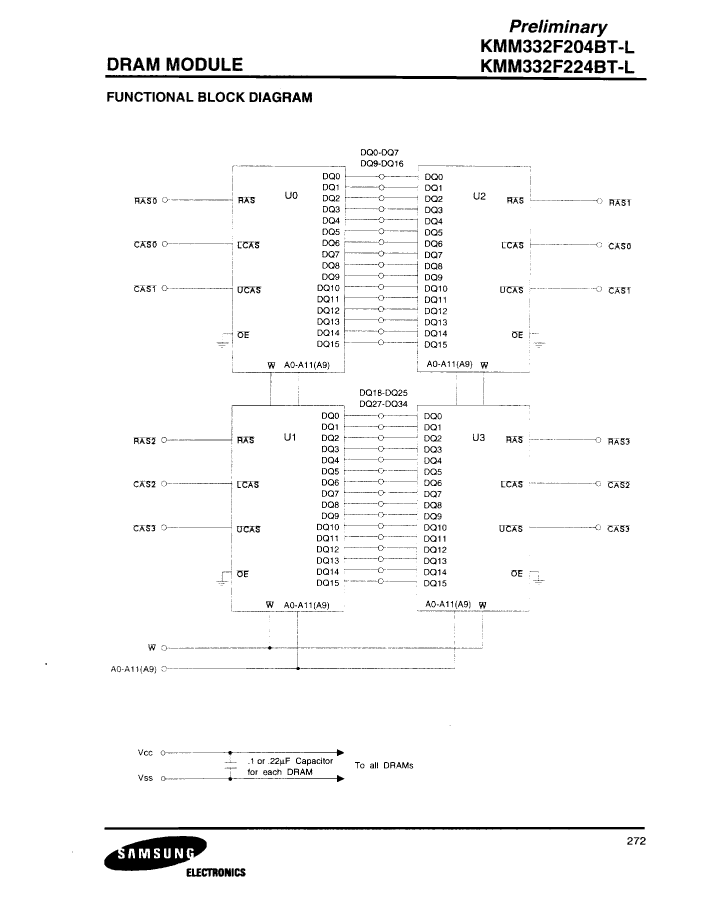

KMM332F204BT-L7 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KMM332F204BT-L7 Related Products

	KMM332F204BT-L7	KMM332F224BT-L6	KMM332F204BT-L6	KMM332F224BT-L7
Description	EDO DRAM Module, 2MX32, 70ns, CMOS, DIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, DIMM-72	EDO DRAM Module, 2MX32, 60ns, CMOS, DIMM-72	EDO DRAM Module, 2MX32, 70ns, CMOS, DIMM-72
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	DIMM	DIMM	DIMM	DIMM
package instruction	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72	DIMM, DIMM72
Contacts	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	70 ns	60 ns	60 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
Spare memory width	16	16	16	16
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72	R-XDMA-N72
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bi
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE	EDO DRAM MODULE
memory width	32	32	32	32
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	72	72	72	72
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX32	2MX32	2MX32	2MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM72	DIMM72	DIMM72	DIMM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	1024	4096	1024
Maximum seat height	25.4 mm	25.4 mm	25.4 mm	25.4 mm
self refresh	YES	YES	YES	YES
Maximum standby current	0.0008 A	0.0008 A	0.0008 A	0.0008 A
Maximum slew rate	0.202 mA	0.302 mA	0.222 mA	0.282 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
