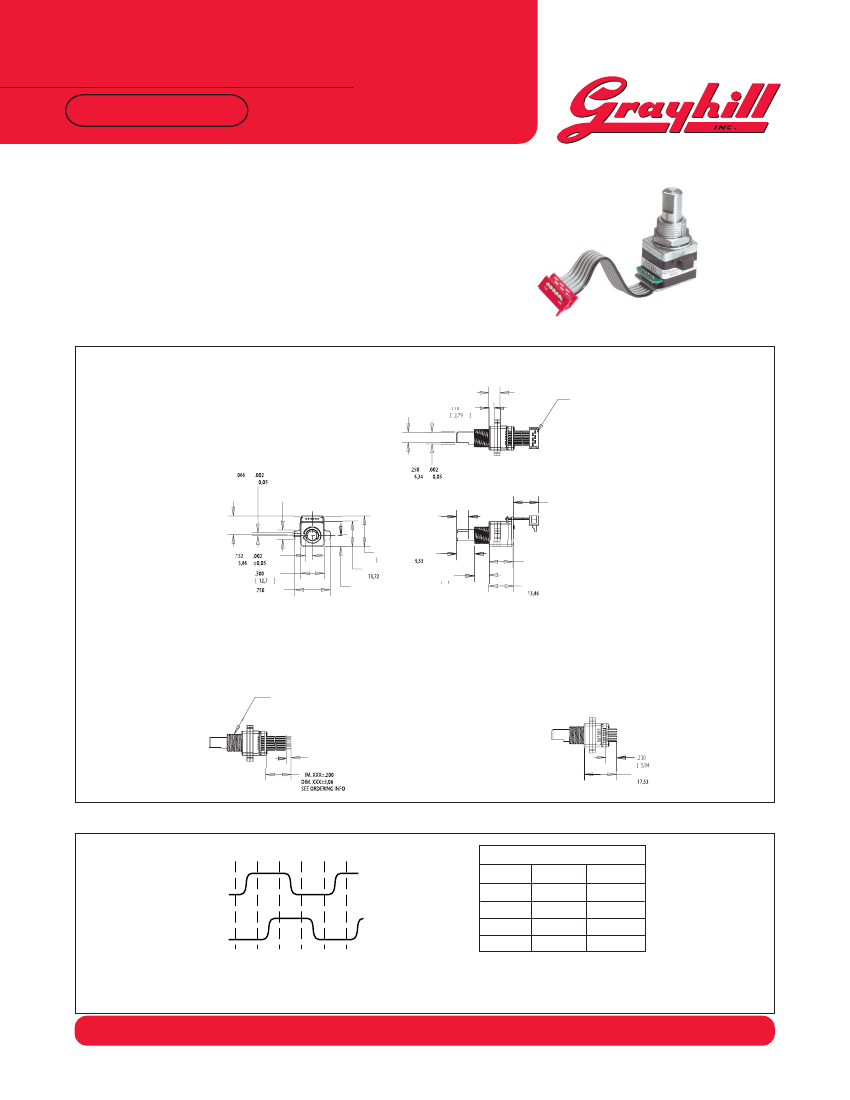

Bulletin #984
Optical Encoders
Series 62HS
High Torque
FEATURES
• High Rotational Torque Provides
Positive Tactile Feedback
• Optically Coupled for More than a
Million Cycles
• Optional Integral Pushbutton
• Compatible with CMOS, TTL and
HCMOS Logic
DIMENSIONS
In inches (and millimeters)
• Available in 8,12 and 16 Detent
Positions
• Choice of Cable Length and
Terminations
APPLICATIONS
• Avionics
Cable Version
.219 ±.002
[ 5,56 ±0,05
.236
[ 5,99 ]
]
110
CONNECTOR IS AMP
P/N 215083-6
OR EQUIVALENT
±
[ 1,68 ±
.400
[ 10,15
]
]
.200
[ 5,08 ]
±
[
±
]
.250
[ 6,35 ]
D IM. XXX±.200
DIM. XXX±5,08
SEE ORDERING INFO
±
[
]
.540
[
[ 19,05
]
.250
[ 6,35 ]
.650
16,5 ]
]
.375
[
]
.312
[ 7,92 ]
.511
[ 12,98
]
.530 ±.015
[
±0,38
]
Unless otherwise specified, standard
tolerance is ±.010 (0,25).
Stripped Version
3/8-32 UNEF-2A THREAD
THREADS TO BE WITHIN
.030 (0, 76) OF SHOULDER
Pin Version
.100
[ 2,54 ]
D
]
.690 ±.015
[
±0,38
]
WAVEFORM AND TRUTH TABLE
Clockwise Rotation
Position Output A Output B
1
2
3
4
1
2
3
4
5
6
POSITION NUMBER
OUTPUT
A
HIGH
LOW
HIGH
LOW
OUTPUT
B
•
•
•
•
•
Indicates logic high; blank indicates
logic low. Code repeats every 4
positions.
561 Hillgrove Avenue • LaGrange, IL 60525 • Phone: 708.354.1040 • Fax: 708.354.2820 • www.grayhill.com
Bulletin #984
Revised06162003
Grayhill Optical Encoders
Series 62HS
CIRCUITRY
PIN #
POWER +5V
R*
OUTPUT A
R*
OUTPUT B
4
5
100
Ω
6
Compact,
High Torque
1/2" Package
N.O.
PUSH-
BUTTON
SWITCH
3
2
GROUND
1
* External pull-up resistors required for operation (2.2 kΩ).
SPECIFICATIONS
Pushbutton Switch Ratings
Rating:
at 5 Vdc, 10 mA, resistive
Contact Resistance:
less than 10 ohms
(TTL or CMOS compatible)
Pushbutton Life:
3 million actuations
minimum
Voltage Breakdown:
250 Vac between
mutually insulated parts
Contact Bounce:
less than 4 mS at make
and less than 10 mS at break
Actuation Force:
1100 ±300g
Operating Torque:
5.0 in-oz +/- 1.5 in-oz
initial
Shaft Push Out Force:
45 lbs minimum
Mounting Torque:
15 in-lbs maximum
Terminal Strength:
15 lbs cable pull-out force
minimum
Operating Speed:
100 RPM maximum
Bushing:
Zinc casting
Shaft Retaining Ring:
Stainless steel
Detent Spring:
Stainless steel
Detent Ball:
Stainless steel
Detent Section:
Hiloy 610
Printed Circuit Boards:
NEMA grade FR-4
gold over nickel or palladium
Terminals:
Brass, tin-plated
Mounting Hardware:
One brass, nickel-plated
nut and stainless steel lockwasher supplied
with each switch. Nut is 0.094 inches thick by
0.562 inches across flats
Rotor:
Thermoplastic
Pushbutton Dome:
Stainless steel
Phototransistor:
Planar Silicon NPN
Infrared Emitter:
Gallium aluminum
arsenide
Flex Cable:
28 AWG, stranded/top coated
wire, PVC coated on .050" centers (cabled
version)
Header Pins:
Brass, tin-plated
Spacer:
Hiloy 610
Shim:
Stainless Steel
Backplate/Strain Relief:
Stainless steel
Environmental Ratings
Operating Temperature Range:
-40°C to 85°C
Storage Temperature Range:
-55°C to 100°C
Vibration Resistance:
Harmonic motion with
amplitude of 15G, within a varied 10 to 2000
Hz frequency for 12 hours
Mechanical Shock:
Test 1: 100G, 6 mS, half
sine, 12.3 ft/s; Test 2: 100G, 6 mS, sawtooth,
9.7 ft/s
Relative Humidity:
90–95% at 40°C for 96
hours
Encoder Ratings
Coding:
2-bit quadrature coded output
Operating Voltage:
5.0 ±.25 Vdc
Supply Current:
30 mA maximum@5.0 Vdc
Logic Output Characterisitics:
Logic High:
3.0 Vdc minimum
Logic Low:
1.0 Vdc maximum
Mechanical Life:
1,000,000 cycles minimum
(One cycle is a rotation through all positions
and a full return)
Minimum Sink Current:
2.0 mA for 5 Vdc
Power Consumption:
150mW maximum
Output:
open collector phototransistor
Logic Rise and Fall:
less than 30 mS max
Materials and Finishes
Code Housing:
Reinforced thermoplastic
Shaft:
Stainless Steel
ORDERING INFORMATION
Series
Style:
HS = High Torque
Angle of Throw:
45 = 45° or 8 positions,30 = 30° or 12 positions,
22 = 22.5° or 16 positions
62HSXX-XX-XXXX
Termination:
S = stripped cable, C = connector, P = pins
Cable Length*:
020 = 2.0 inches min. to 250 = 25.0 inches max.
Provided in increments of 1/2 inch.
Example: 035 = 3.5", 060 = 6"
*
Eliminate cable length if ordering
pins.
(Ex: 62HS22-H9-P)
Pushbutton Option:
0 = w/o pushbutton, 9 = 900g
pushbutton
Rotational Torque:
H = High Torque
561 Hillgrove Avenue • LaGrange, IL 60525 • Phone: 708.354.1040 • Fax: 708.354.2820 • www.grayhill.com
Bulletin #984
Revised 06162003
