SFMX-135-T2-S-D-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SFMX-135-T2-S-D-TR

SFMX-135-T2-S-D-TR: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size870KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SFMX-135-T2-S-D-TR Overview

Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

SFMX-135-T2-S-D-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.145 inch
subject depth	0.18 inch
body length	1.905 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	.695 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SFMX
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.7432 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
Evacuation force-minimum value	.556 N

SFMX-135-T2-S-D-TR Preview

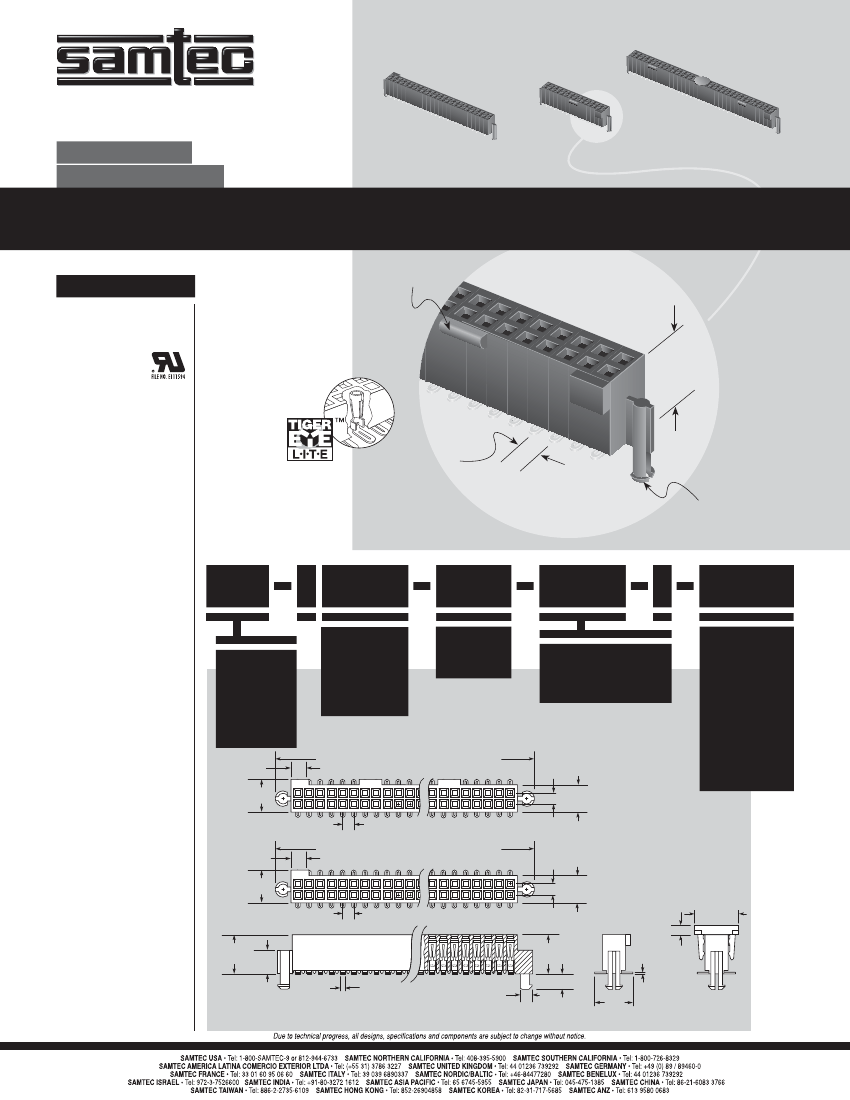

F-213 SUPPLEMENT

SFMX–115–T2–S–D

SFLX–125–T2–S–D

(1,27 mm) .050"

SFLX, SFMX SERIES

SFMX–135–T2–S–D–K

FLEX LOCK/LATCH SOCKET STRIP

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?SFMX

or www.samtec.com?SFLX

Insulator Material:

Black Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50µ" (1,27 µm) Ni

Current Rating:

2A per contact

@ 80°C ambient

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

15 mΩ

Insertion Depth:

(3,05 mm) .120" to

(4,06 mm) .160"

Insertion Force:

(Single contact only)

2.5 oz (0,69 N) avg.

Withdrawal Force:

(Single contact only)

2.0 oz (0,57 N) avg.

SFMX Unmating Force:

Withdrawal force per

contact: 2.0 oz (0,57 N) avg;

Incremental unmating force

with latching mechanism:

10 & 15 pins/row (One Latch)

increases withdrawal force by

4 x avg; 20-30 pins/row (Two

Latches) increases withdrawal

force by 3 x avg; 35-50 pins/

row (Three Latches) increases

withdrawal force by 1.7 x avg

RoHS Compliant:

Yes

Mates with:

TFML, TFM (SFLX only),

FTSH

Latching feature increases

withdrawal force

Polyimide ﬁlm

pick-and-place pad

available

(4,57 mm)

.180"

(1,27 mm)

.050"

Locks into stiffeners

behind circuit

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

SFLX

= Flex Lock

(No latch)

10, 15, 20,

25, 30, 35,

40, 45, 50

(Call Samtec for

other sizes)

–T2

= Tiger Eye

™

LITE Contact

–S

= 30µ" (0,76 µm)

Gold on contact,

Matte Tin on tail

–K

= (4,00 mm) .157"

DIA Polyimide ﬁlm

Pick & Place Pad

Processing:

SFMX

= Latching Flex

Lock

(2,03)

.080

(3,68)

.145

–P

= Plastic Pick &

Place Pad

(SFLX only)

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (10-25)

(0,15 mm) .006" max (30-50)

(1,27) .050 x No. of Positions + (3,94) .155

(1,27)

.050

(3,05)

.120

–TR

= Tape & Reel

(1,27) .050 TYP

(2,03)

.080

(3,68)

.145

(1,27) .050 TYP

SFMX

(1,27)

.050

(3,05)

.120

(10,00 x 5,72)

.394 x .225

(1,27) .050 x No. of Positions + (3,94) .155

SFLX

(4,57)

.180

(0,51)

.020

(1,36)

.054

(0,13)

.005

TYP

(1,57)

.062

(4,57)

.180 (2,79)

.110

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(1,78)

.070

(4,19)

.165

–P OPTION

WWW.SAMTEC.COM

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
