KPT-3216QBC-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPT-3216QBC-F

KPT-3216QBC-F: DescriptionSingle Color LED, Blue, Water Clear, 1.2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size230KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPT-3216QBC-F Overview

Single Color LED, Blue, Water Clear, 1.2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

KPT-3216QBC-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.20 X 1.60 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	150.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE AND REEL
peak wavelength	461 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg

Preview

Download Datasheet

View All

3.2mmx1.6mm SMD CHIP LED LAMP

Part Number: KPT-3216QBC-F

Blue

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Features

3.2mmx1.6mm SMT LED, 0.75mm thickness.

Low power consumption.

Wide viewing angle.

Ideal for backlight and indicator.

Various colors and lens types available.

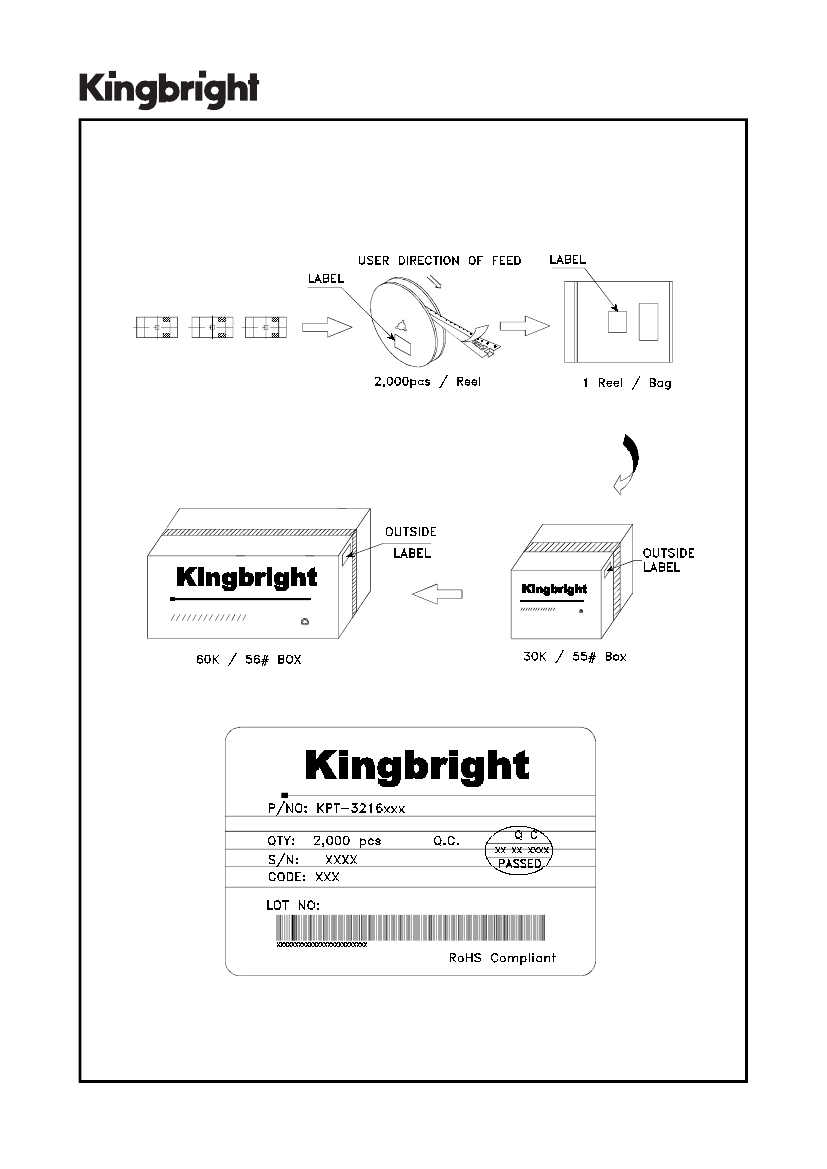

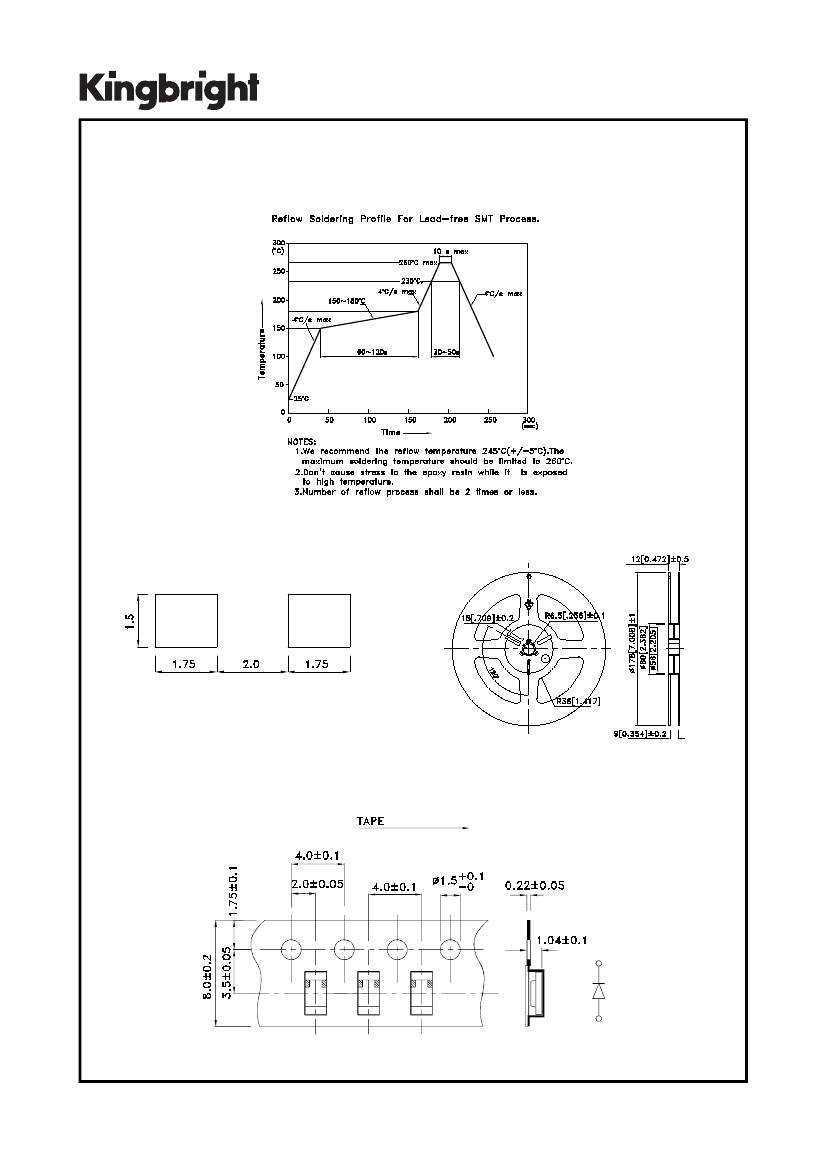

Package : 2000pcs / reel.

Moisture sensitivity level : level 3.

RoHS compliant.

Description

The Blue source color devices are made with InGaN Light

Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

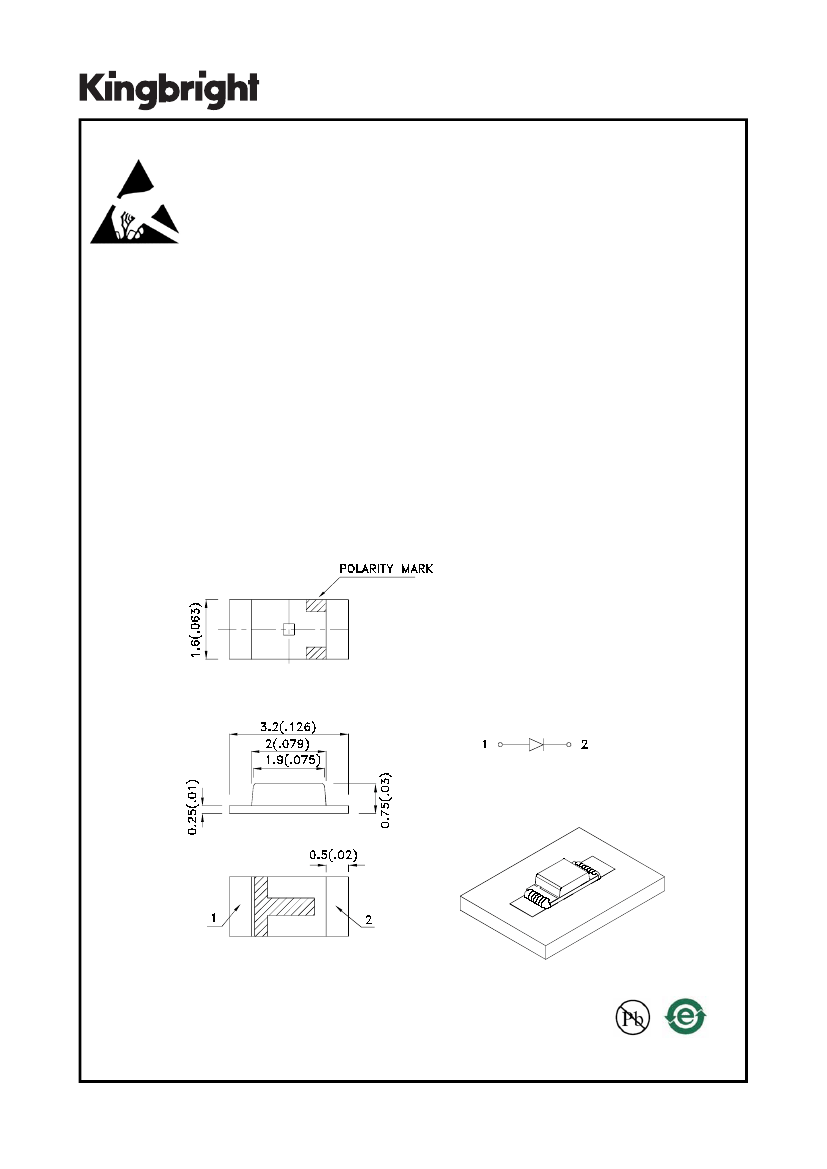

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.

SPEC NO: DSAJ8290

APPROVED: WYNEC

REV NO: V.3

CHECKED: Allen Liu

DATE: APR/30/2010

DRAWN: XULINA

PAGE: 1 OF 5

ERP: 1203010084
