KM2520A01HT001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KM2520A01HT001

KM2520A01HT001: DescriptionSingle Color LED, Bright Red, Red Transparent, 1.9mm,; CategoryLED optoelectronic/LED photoelectric; File Size782KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Parametric Compare View All

KM2520A01HT001 Overview

Single Color LED, Bright Red, Red Transparent, 1.9mm,

KM2520A01HT001 Parametric

Parameter Name	Attribute value
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	RED TRANSPARENT
Nominal luminous intensity	5 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.8 mm
method of packing	BULK
peak wavelength	700 nm
shape	ROUND
size	1.9 mm
surface mount	NO
perspective	30 deg

Preview

Download Datasheet

View All

Kingbright

Features

SUBMINIATURE

SUBMINIATURE SOLID STATE LAMPS

KM2520A01xxx001 SERIES

KM2520A01xxx002 SERIES

KM2520A01xxx004 SERIES

Description

The Super Bright Green source color devices are made with

Gallium Phosphide Green Light Emitting Diode.

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diodes.

The Super Bright Yellow source color devices are made with

PACKAGE.

WIDE VIEWING ANGLE.

AXIAL LEADS, RIGHT ANGLE LEADS

ARE AVAILABLE.

LONG LIFE SOLID STATE RELIABILITY.

LOW PACKAGE PROFILE.

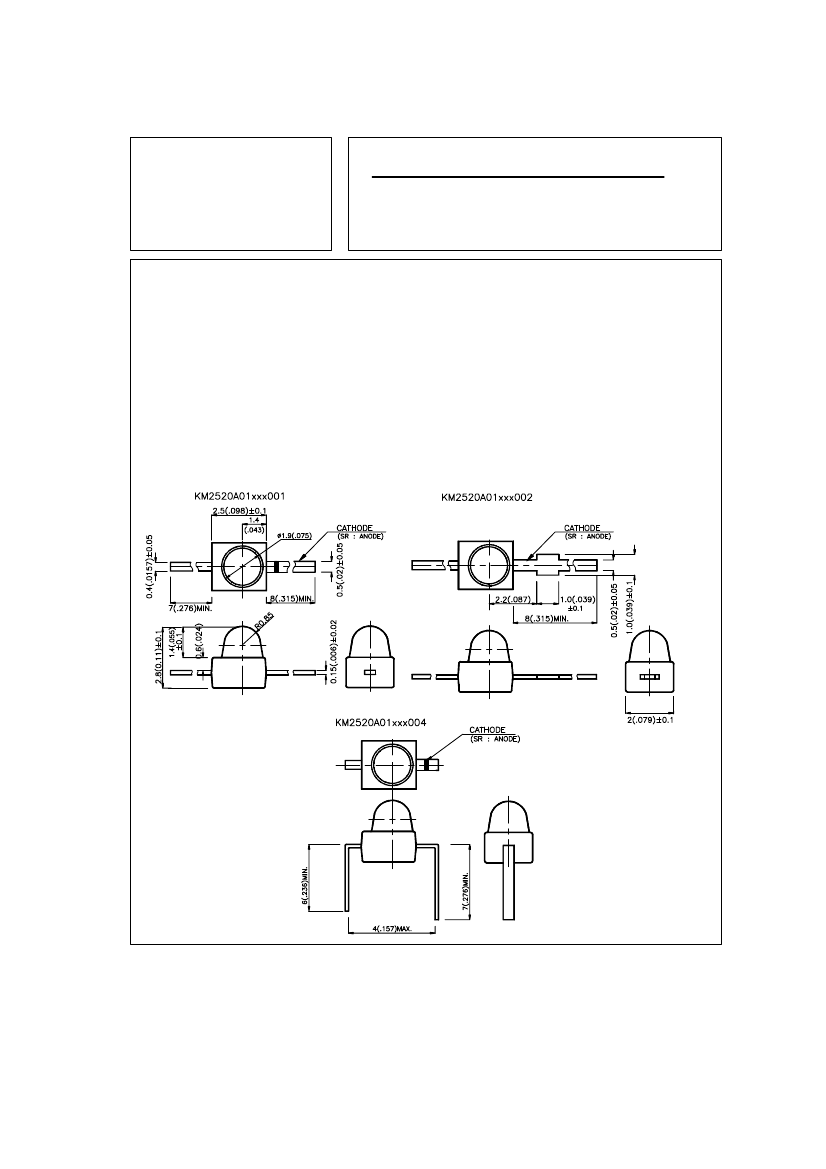

Package Dimensions

DH InGaAlP on GaAs substrate Light Emitting Diode.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

0.25(0.01") unless otherwise

noted.

3. Lead spacing is measured where the lead

emerge package.

4. Specifications are subjected to change without

notice.

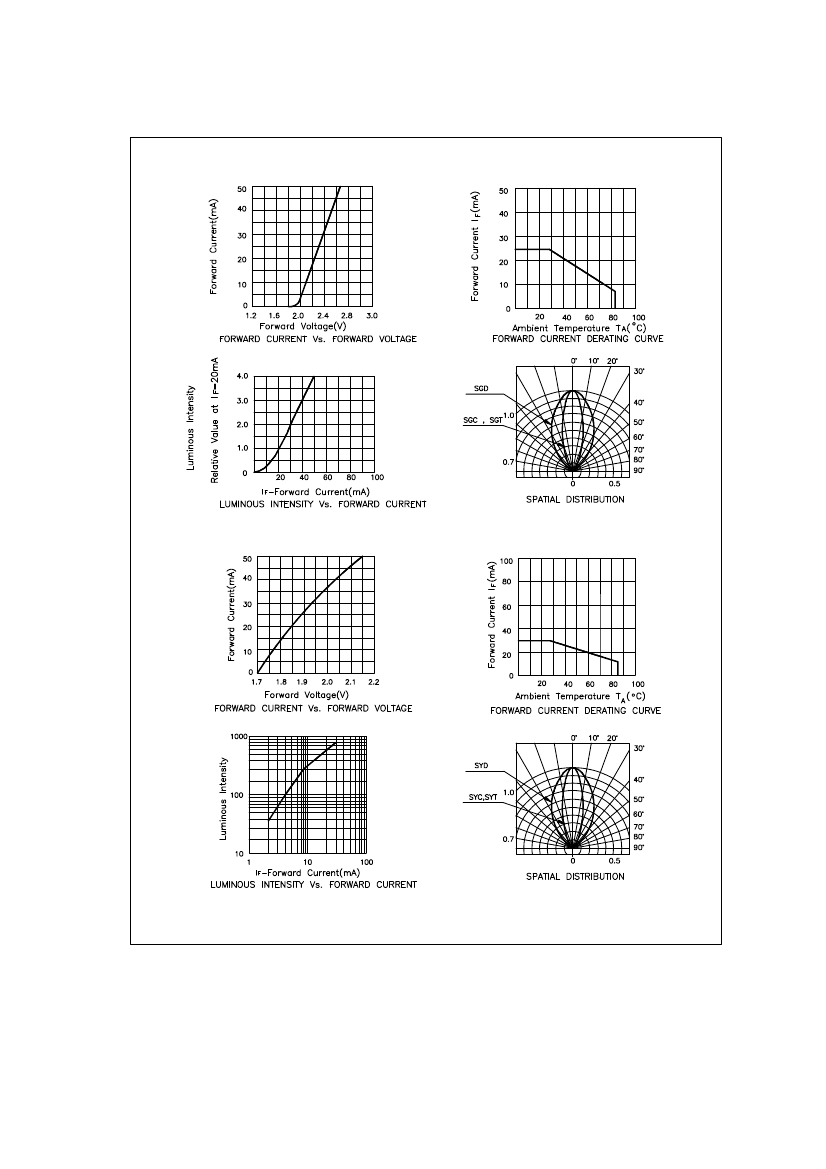

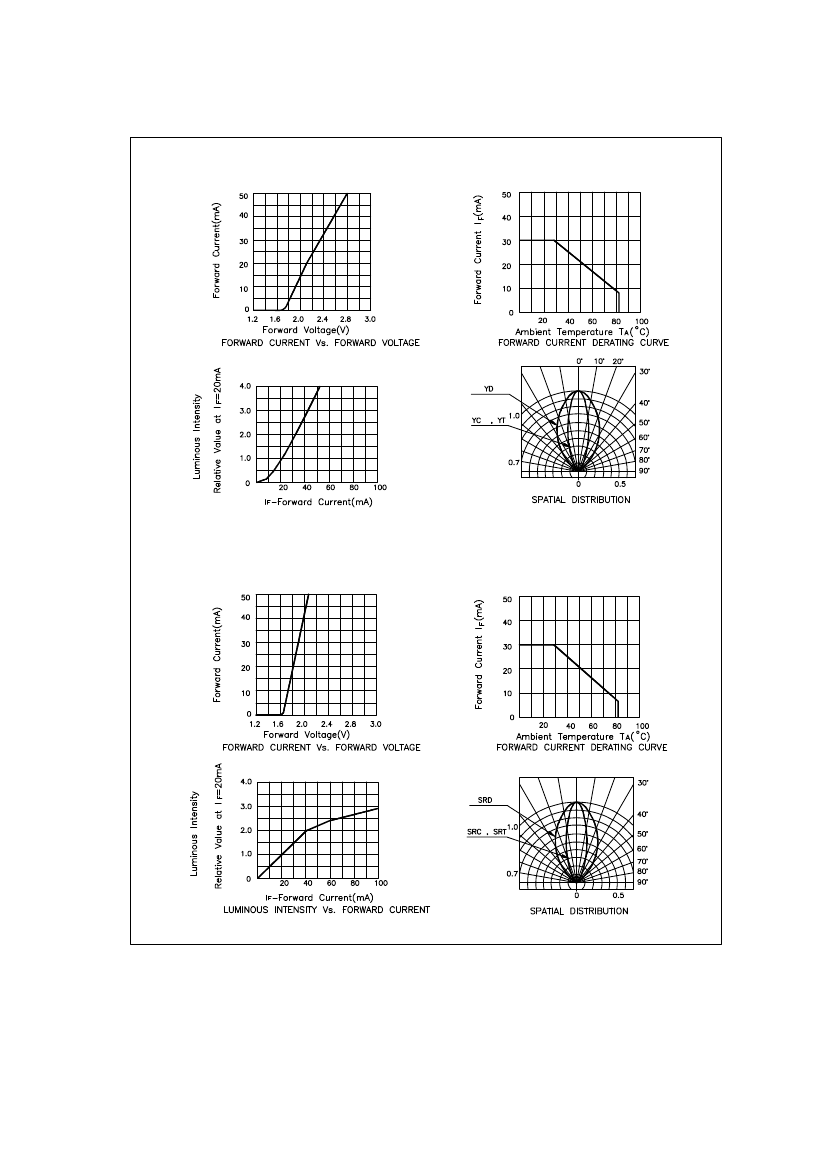

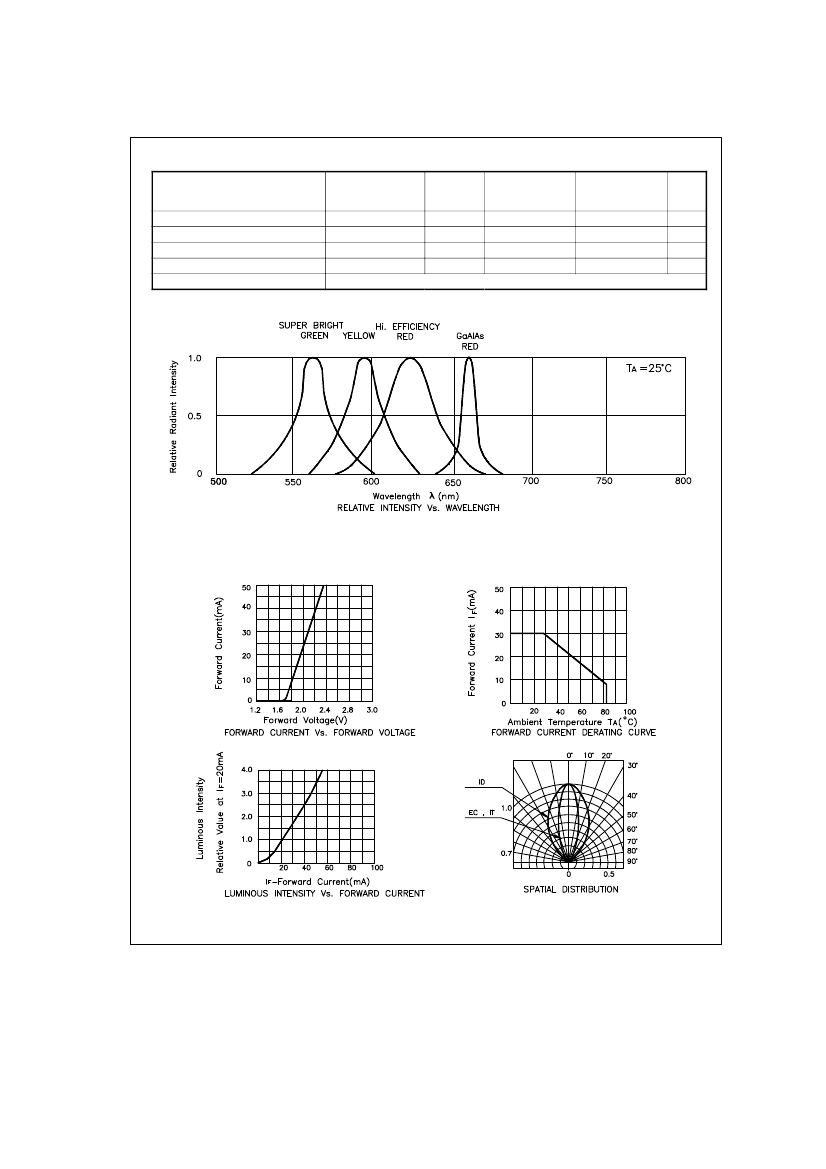

2-KM25-1

KM2520A01HT001 Related Products

	KM2520A01HT001	KM2520A01HC001	KM2520A01HD001
Description	Single Color LED, Bright Red, Red Transparent, 1.9mm,	Single Color LED, Bright Red, Water Clear, 1.9mm,	Single Color LED, Bright Red, Red Diffused, 1.9mm,
Maker	Kingbright	Kingbright	Kingbright
Reach Compliance Code	compliant	compliant	compli
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	BRIGHT RED	BRIGHT RED	BRIGHT RED
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A
Lens type	RED TRANSPARENT	WATER CLEAR	RED DIFFUSED
Nominal luminous intensity	5 mcd	5 mcd	0.87 mcd
Installation features	AXIAL MOUNT	AXIAL MOUNT	AXIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.8 mm	2.8 mm	2.8 mm
method of packing	BULK	BULK	BULK
peak wavelength	700 nm	700 nm	700 nm
shape	ROUND	ROUND	ROUND
size	1.9 mm	1.9 mm	1.9 mm
surface mount	NO	NO	NO
perspective	30 deg	30 deg	60 deg
ECCN code	EAR99	EAR99	-
