BSW-130-24-T-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BSW-130-24-T-M

BSW-130-24-T-M: DescriptionBoard Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BSW-130-24-T-M Overview

Board Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

BSW-130-24-T-M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TIGER BUY CONTACT; LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BSW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

F-212

BSW–124–04–T–S–S

BSW–115–04–G–D

BSW–110–24–L–S

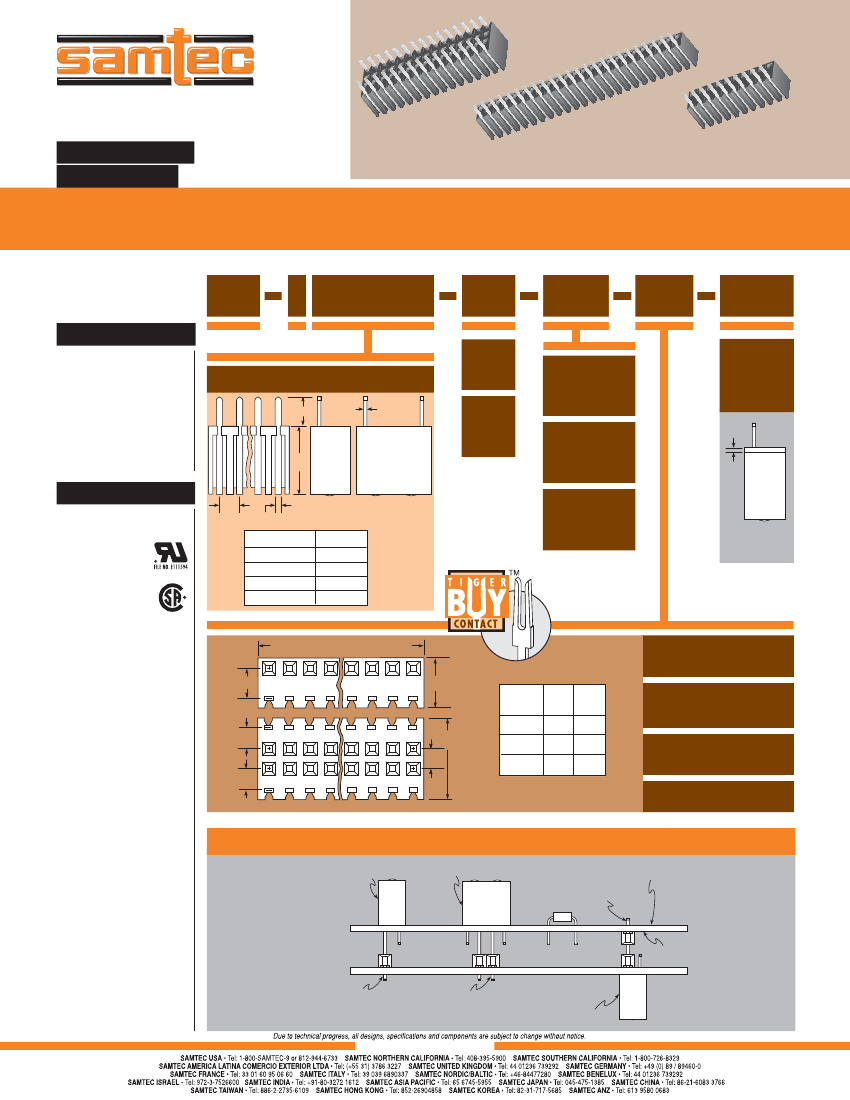

(2,54mm) .100"

BSW SERIES

BOTTOM MOUNT SOCKET STRIPS

Mates with:

TSW, MTSW, MTLW,

EW, ZW, TSM

BSW

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

FEATURES

•

Bottom mount socket

strips accept .025" SQ

terminals.

•

Ideal for soldering and

plugging from the same

side of the board.

•

For low proﬁle

connections and high

temperature soldering.

–04

02 thru 36

(0,41)

.016

TYP

= Standard

Lead

–L

= 10µ" (0,25µm)

Gold contact,

Matte Tin on tail

–S

= Standoffs

for single

and double

rows only.

–24

= Low

Insertion

Force

–G

= 20µ" (0,51µm)

Gold contact,

Gold Flash on tail

(0,38)

.015

(8,89)

.350

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?BSW

Insulator Material:

Black

Thermoplastic

Insulation Resistance:

5000 MΩ min

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Withstanding Voltage:

1000 VRMS @ 60 Hz

Contact Resistance:

10 mΩ max

Insertion Depth:

(3,68mm) .145" to

(6,35mm) .250"

Insertion Force:

(Single contact only)

Standard = 8oz (2,23N) avg.

Low Insertion Force = 3oz

(0,83N) avg.

Withdrawal Force:

(Single contact only)

Standard = 8oz (2,23N) avg.

Low Insertion Force = 3oz

(0,83N) avg.

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

(2,54)

.100

TYP

–S, –M, –E

(0,79) .031

TYP

–D

–T

= Matte Tin

(N/A with Low

Insertion Force)

(–S & –D only)

Row Option

–S*

–M

–E

–D*

(4,31) .170

(3,43) .135

(2,54) .100

(4,32) .170

Less

(0,38mm)

.015" with

standoffs

(No. of Pos. X (2,54) .100) + (0,51) .020

–S

–M

–E

–S

= Single Row

Row

Option

–S

(2,54)

.100

(3,81)

.150

(4,31)

.170

(5,08)

.200

(6,35)

.250

(6,86)

.270

Row

–M

= SinglePlug Space

(2,54)

.100

(10,16)

.400

(2,54)

.100

–M

–E

–D

–E

= Single Row Space

Extended Plug

–D

= Double Row

(2,54)

.100

Body design may vary slightly

from drawing shown.

APPLICATIONS

BSW

(SINGLE ROW)

BSW

(DOUBLE ROW)

(SINGLE ROW)

COMPONENT

SIDE

BOARD

SOLDER

SIDE

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

BOARD

TSW

(SINGLE ROW)

TSW

(DOUBLE ROW)

BSW

(SINGLE ROW)

WWW.SAMTEC.COM
