JEWEL HILL ELECTRONIC CO.,LTD.
JEWEL HILL ELECTRONIC CO.,LTD.
SPECIFICATIONS FOR
LCD MODULE
Module No.
JHB1602I
Addr.: 3
rd
Floor , Changxingfa Factory , No.17 , Junxin Road , Junzibu
Village ,Guannan Town , Baoan District , Shenzhen .China .
TEL : (86)-755-28057016
FAX: (86)-755-28161715
E-mail:
sales@jhlcd.com
Website:
www.jhlcd.com
JHB1602I
VER: 4.0
-
0-
Issue date: 2009/12/03
JEWEL HILL ELECTRONIC CO.,LTD.
TABLE OF CONTENTS
LCM NUMBER SYSTEM ..................................................................... 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
GENERAL DESCRIPTION ........................................................... 3
FEATURES...................................................................................... 3
MECHANICAL SPECIFICATION .............................................. 3
MECHANICAL DIMENSION....................................................... 4
MAXIMUM RATINGS .................................................................. 5
ELECTRICAL CHARACTERISTICS ......................................... 5
MODULE FUNCTION DESCRIPTION ...................................... 6
ELECTRO-OPTICAL CHARACTERISTICS .......................... 12
RELIABILITY............................................................................... 16
10. PRECAUTIONS FOR USING LCD MODULES ...................... 17
11. USING LCD MODULES .............................................................. 19
12. ROHS TEST DATA REPORT..................................................... 21
13. REVISION HISTORY .................................................................. 22
SAMPLE APPROVED REPORT ....................................................... 23
JHB1602I
VER: 4.0
-
1-
Issue date: 2009/12/03
JEWEL HILL ELECTRONIC CO.,LTD.
LCM Number System
JH B 16
02 I S B T N L W W D A-V00
VERSION NUMBER: V00½V99
IC TYPE:
A: BONDING IC, WITH CONTROLLER
B: BONDING IC, WITHOUT CONTROLLER
C: SMT IC, WITH CONTROLLER
D: SMT IC, WITHOUT CONTROLLER
O: OTHER TYPE
VIEWING DIRECTION:
U: UPPER(12:00); D: DOWN(6:00)
L: LEFT(9:00); R: RIGHT(3:00);
O: OTHER
TEMPERATURE RANGE:
N: NORMAL TEMPERATURE RANGE
M: MIDDLE TEMPERATURE RANGE
W: WIDE TEMPERATURE RANGE
S: SUPER WIDE TEMPERATURE RANGE
BACKLIGHT COLOR:
A: AMBER; B: BLUE; Y: YELLOW-GREEN;
G: GREEN;
R: RED;
W: WHITE; O: THER COLOR
BACKLIGHT TYPE:
E: EL; L: LED; C: CCFL; N: NONE; O: OTHER
LCD DISPLAY MODE:
P: POSITIVE;
N: NEGATIVE
LCD POLARIZER TYPE:
R: REFLECTIVE;
T: TRANSMISSIVE;
E: TRANSFLECTIVE;
O: OTHER
LCD COLOR MODE:
G: GRAY; Y: YELLOW-GREEN; B: BLUE;
W: BLACK-WHITE; O: OTHER
LCD TYPE:
N: TN; H: HTN; S: STN; F: FSTN; O: OTHER
SERIAL NUMBER: A½Z
GRAPHIC MODULEs: NUMBER OF COMMONs
CHARACTER MODULEs: NUMBER OF LINE
GRAPHIC MODULEs:NUMBER OF SEGMENTs
CHARACTER MODULEs:
B: COB & SMT LCM;
T: TAB LCM; G: COG LCM;
JEWEL HILL ELECTRONIC CO.,LTD.
JHB1602I
VER: 4.0
-
2-
Issue date: 2009/12/03
JEWEL HILL ELECTRONIC CO.,LTD.
1. GENERAL DESCRIPTION
The JHB162I is a 16C x 2L Character LCD module. It has a STN panel composed of 80 segments and
16 commons. The LCM can be easily accessed by micro-controller via parallel interface.
2. FEATURES
Display Mode
Display Format
Input Data
Bias
Backlight
Transmissive and Negative
STN(Blue) module
Character 16C x 2L
8/4-bit parallel data input from MPU
1/5 Bias
LED(White)
Multiplexing Ratio 1/16 Duty
Viewing Direction 6 O’clock
3. MECHANICAL SPECIFICATION
Item
Dimensional outline
Resolution
Active area
Char. pitch
Char. pitch
Dots pitch
Dots size
Specifications
80.0 x 36.0 x 11.0(max)
80segs x 16coms
56.21(W) x 11.5(H)
3.55(W) x 5.94(H)
2.96(W) x 5.56(H)
0.6 (W)×0.7(H)
0. 56(W)×0.66(H)
Unit
mm
dots
mm
mm
mm
mm
mm
JHB1602I
VER: 4.0
-
3-
Issue date: 2009/12/03
JEWEL HILL ELECTRONIC CO.,LTD.
1
16

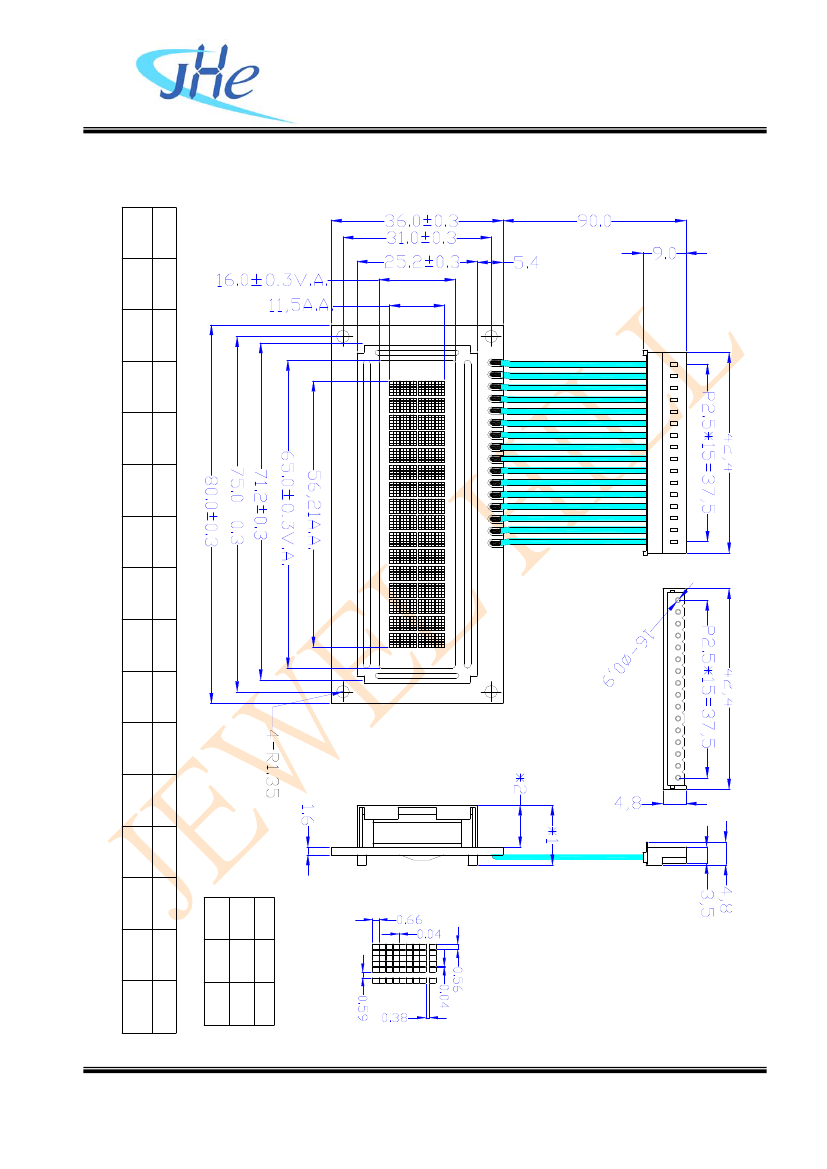

4. MECHANICAL DIMENSION
TYPE
*1
*2
±
R&EL
---
---
LED
6.8
11.0
1
2
3
4
5
6
7
8
9
10
11
12
13
VSS
VCC
VEE
RS
R/W
E
DB0
DB1
DB2
DB3
DB4
DB5
14
15
16
DB6
DB7
LED+ LED-
JHB1602I
VER: 4.0
-
4-
Issue date: 2009/12/03
