RL95-100M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RL95-100M

RL95-100M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element; CategoryPassive components inductor; File Size16KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric View All

RL95-100M Overview

General Purpose Inductor, 10uH, 20%, 1 Element

RL95-100M Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.04 Ω
Nominal inductance(L)	10 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	RL95
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	2.25 MHz
Tolerance	20%

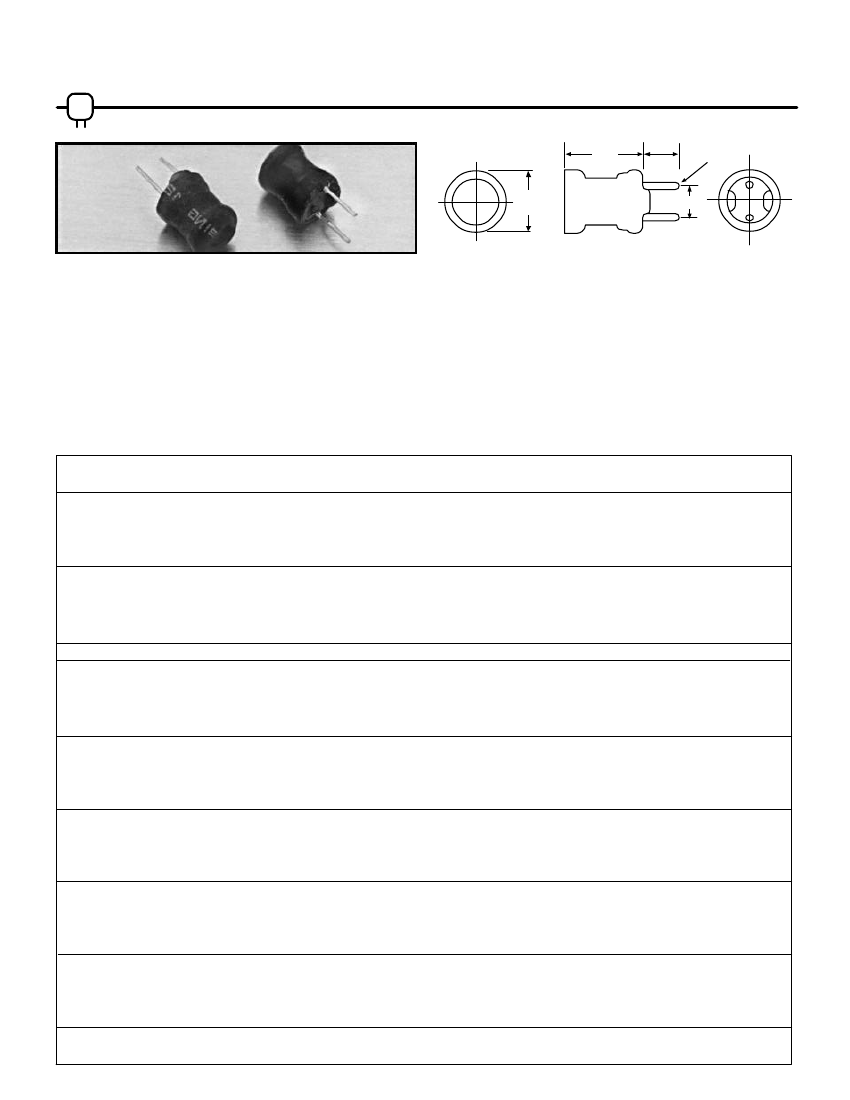

Preview

Download Datasheet

View All

RL95

Radial

Leaded R.F.

0.43

Max.

0.34

Max.

0.20

0.32

0.20

MARKING Inductance value

PACKAGING Bulk or tape and reel

INDUCTANCES 10µH to 47,000µH

OPERATING TEMPERATURE RANGE -55°C to +125°C

CURRENT RATING Based on maximum of 10% drop from

initial value.

PART

NUMBER

RL95-100M

RL95-120M

RL95-150K

RL95-180K

RL95-220K

RL95-270K

RL95-330K

RL95-390K

RL95-470K

RL95-560K

RL95-680K

RL95-820K

Notes:

(1) Inductance Range: 10µh to 82µh measur ed on HP4342A Q-meter a t

2.5Mhz.

(2) Inductance Range: 100µH - 1.000µH measur ed on GenRad 1658 Dig i-

Bridge.

(3) Rated DC tested at 1kHz, I, dc is the minimum current at which the

inductance will be decreased by 10% fr om its initial (zero-DC) value

because of satura tion.

(4) DCR measur ed with GenRad 1658 Digi-Bridge.

INDUCTANCE

(µhy)

TEST

FREQUENCY

(Mhz)

2.25

DC RESISTANCE

OHMS

MAXIMUM (Ω )

0.04

0.05

0.06

0.07

0.08

0.10

0.11

0.14

0.16

RATED DC

CURRENT MAX

(mA)

2600

2100

2000

1700

1600

1400

1300

1200

1100

1000

(Khz)

RL95-101K

RL95-121K

RL95-151K

RL95-181K

RL95-221K

RL95-271K

RL95-331K

RL95-391K

RL95-471K

RL95-561K

RL95-681K

RL95-821K

RL95-102K

RL95-122K

RL95-152K

RL95-182K

RL95-222K

RL95-272K

RL95-332K

RL95-392K

RL95-472K

RL95-582K

RL95-682K

RL95-822K

RL95-103K

RL95-123K

RL95-153K

RL95-183K

RL95-223K

RL95-273K

RL95-333K

RL95-393K

RL95-473K

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

12000

15000

18000

22000

27000

33000

39000

47000

1.0

0.19

0.22

0.27

0.31

0.38

0.53

0.61

0.68

0.89

1.01

1.18

1.57

1.84

2.1

2.8

3.21

4.21

4.94

6.16

6.84

7.89

11.5

13.2

15.3

29.1

38.9

44.9

55.2

64.2

74.2

96.4

900

820

740

710

640

570

510

480

430

400

350

320

300

270

230

210

190

170

150

140

130

110

120

100
