EFOBMFREQ1E0

Description
Ceramic Resonator, 12MHz Min, 20MHz Max, CERAMIC PACKAGE-3
CategoryPassive components    Crystal/resonator
File Size458KB，4 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric Compare View All

EFOBMFREQ1E0 Overview

Ceramic Resonator, 12MHz Min, 20MHz Max, CERAMIC PACKAGE-3

EFOBMFREQ1E0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPanasonic
package instructionCERAMIC PACKAGE-3
Reach Compliance Codeunknown
Other featuresTAPE AND REEL; BULIT-IN CAPACITOR
Crystal/Resonator TypeCERAMIC RESONATOR
frequency stability0.3%
frequency tolerance10000 ppm
JESD-609 codee3/e4
Manufacturer's serial numberEFOBM
Installation featuresSURFACE MOUNT
Maximum operating frequency20 MHz
Minimum operating frequency12 MHz
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
physical sizeL4.1XB2.9XH1.2 (mm)/L0.161XB0.114XH0.047 (inch)
surface mountYES
Terminal surfaceTIN/GOLD

EFOBMFREQ1E0 Preview

Ceramic Resonators (Chip Type)
Ceramic Resonators, Chip Type
(3 Array Type)
Type:
EFOS
Type:
EFOB
Type:
EFOSS
Type:
EFOSM
Type:
EFOBM
Type:
EFOJM
■
Features
●
Encased in a ceramic package
●
High reliability against soldering heat and mechanical
stress
●
Moisture-proof sealing
●
1.2 mm maximum in thickness (SS/SM/BM/JM)
●
Designed for reflow soldering
●
Flat-bottom plate for better mountings
●
Simplifies oscillation circuits by reducing the number
of circuit parts
■
Recommended Applications
●
Clock generator for microprocessors
●
Carrier circuit between telecommunication equipment
(Telephone to telephone, personal computer to printer)
■
Safety Precautions
(See Page 237 to 238)
■

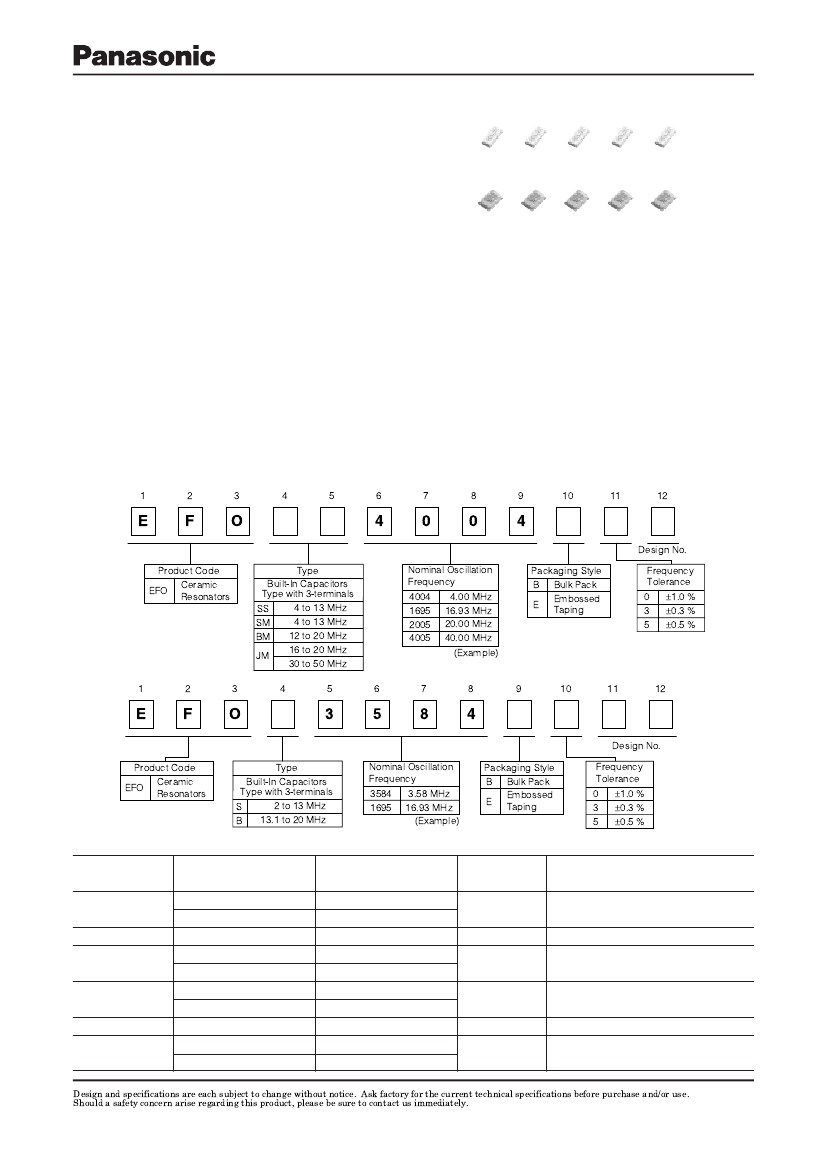

Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
F
Product Code
EFO Ceramic
Resonators
O
Type
Built-In Capacitors
Type with 3-terminals
4 to 13 MHz
SS
4 to 13 MHz
SM
12 to 20 MHz
BM
16 to 20 MHz
JM
30 to 50 MHz
3
4
5
4
0
0
4
Design No.
Packaging Style
B Bulk Pack
Embossed
E Taping
Frequency
Tolerance
0
±
1.0 %
3
±
0.3 %
5
±
0.5 %
Nominal Oscillation
Frequency
4004
4.00 MHz
1695 16.93 MHz
2005 20.00 MHz
4005 40.00 MHz
(Example)
6
7
8
9
1
2
10
11
12
E
F
O
3
5
8
4
Design No.
Packaging Style
B Bulk Pack
Embossed
E Taping
Frequency
Tolerance
0
±
1.0 %
3
±
0.3 %
5
±
0.5 %
Product Code
EFO Ceramic
Resonators
Type
Built-In Capacitors
Type with 3-terminals
2 to 13 MHz
S
13.1 to 20 MHz
B
Nominal Oscillation
Frequency
3584 3.58 MHz
1695 16.93 MHz
(Example)
Part Number
EFOS
EFOB
EFOSS
EFOSM
EFOBM
EFOJM
Frequency range
(MHz)
2.00
8.40
13.1
4.00
8.40
4.00
8.40
12.0
16.0
30.0
to
to
to
to
to
to
to
to
to
to
8.39
13.0
20.0
8.39
13.0
8.39
13.0
20.0
20.0
50.0
Frequency Temperature Characteristics Built-in Capacitors
(-20 to +80 °C)
(Reference)
±0.2
±1.0
±0.5
±0.2
±0.3
±0.2
±1.0
±0.3
±0.5
±0.2
%
%
%
%
%
%
%
%
%
%
33 pF
33 pF
21 pF
33 pF
18 pF
10 pF
Note
Product weight 0.110 g/pcs.
Product weight 0.072 g/pcs.
Product weight 0.028 g/pcs.
Product weight 0.077 g/pcs.
Product weight 0.035 g/pcs.
Product weight 0.050 g/pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2005

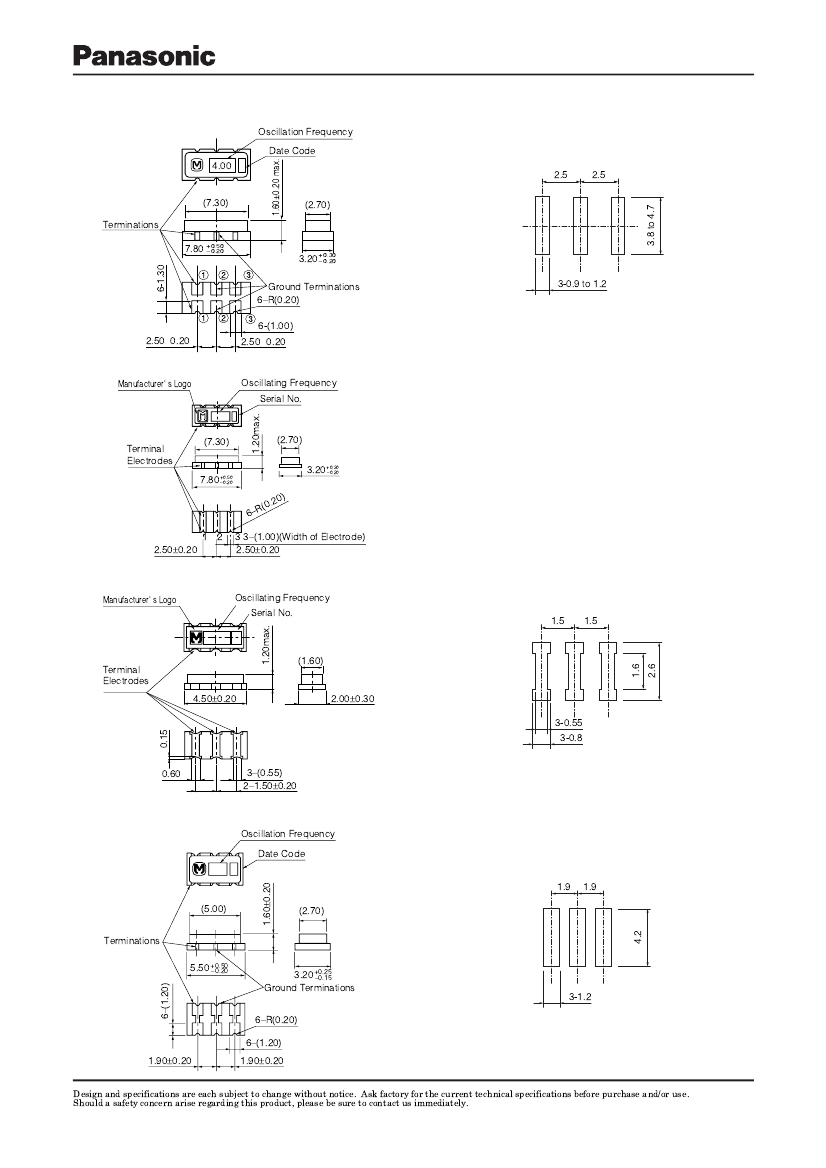

Ceramic Resonators (Chip Type)
■
Dimensions in mm (not to scale)
Recommended Land Dimensions
[Type EFOS]·····2.0
to 13.0 MHz
1.60±0.20 max.
4.00
(7.30)
Terminations
7.80
+0.50
-0.20
Oscillation Frequency
Date Code
(2.70)
+0.30
3.20
-0.20
[Type EFOS, EFOSM]
2.5
2.5
3.8 to 4.7
6-1.30


!
2.50
±
0.20
Manufacturer' s Logo
2.50
±
0.20
!
6-(1.00)
Ground Terminations
6ÐR(0.20)
3-0.9 to 1.2
[Type EFOSM]·····4.0
to 13.0 MHz
Oscillating Frequency
Serial No.
1.20max.
Terminal
Electrodes
(7.30)
7.80
+0.50
Ð0.20
(2.70)
3.20
+0.30
Ð0.20
.20)
(0
6ÐR
2.50
±
0.20
Manufacturer' s Logo
1 2 3 3Ð(1.00)(Width of Electrode)
2.50
±
0.20
[Type EFOSS]
1.5
1.5
[Type EFOSS]·····4.0
to 13.0 MHz
Oscillating Frequency
Serial No.
1.20max.
Terminal
Electrodes
4.50
±
0.20
0.15
2.00
±
0.30
3-0.55
3-0.8
0.60
3Ð(0.55)
2Ð1.50
±
0.20
[Type EFOB]·····13.1
to 20.0 MHz
Oscillation Frequency
Date Code
1.60
±
0.20
[Type EFOB]
1.9
1.9
(5.00)
Terminations
5.50
+0.50
Ð0.20
6Ð(1.20)
(2.70)
4.2
3.20
+0.25
Ð0.15
Ground Terminations
6ÐR(0.20)
6Ð(1.20)
1.90
±
0.20
3-1.2
1.90
±
0.20
1.6
2.6
(1.60)
(Unit:mm)
Mar. 2005
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

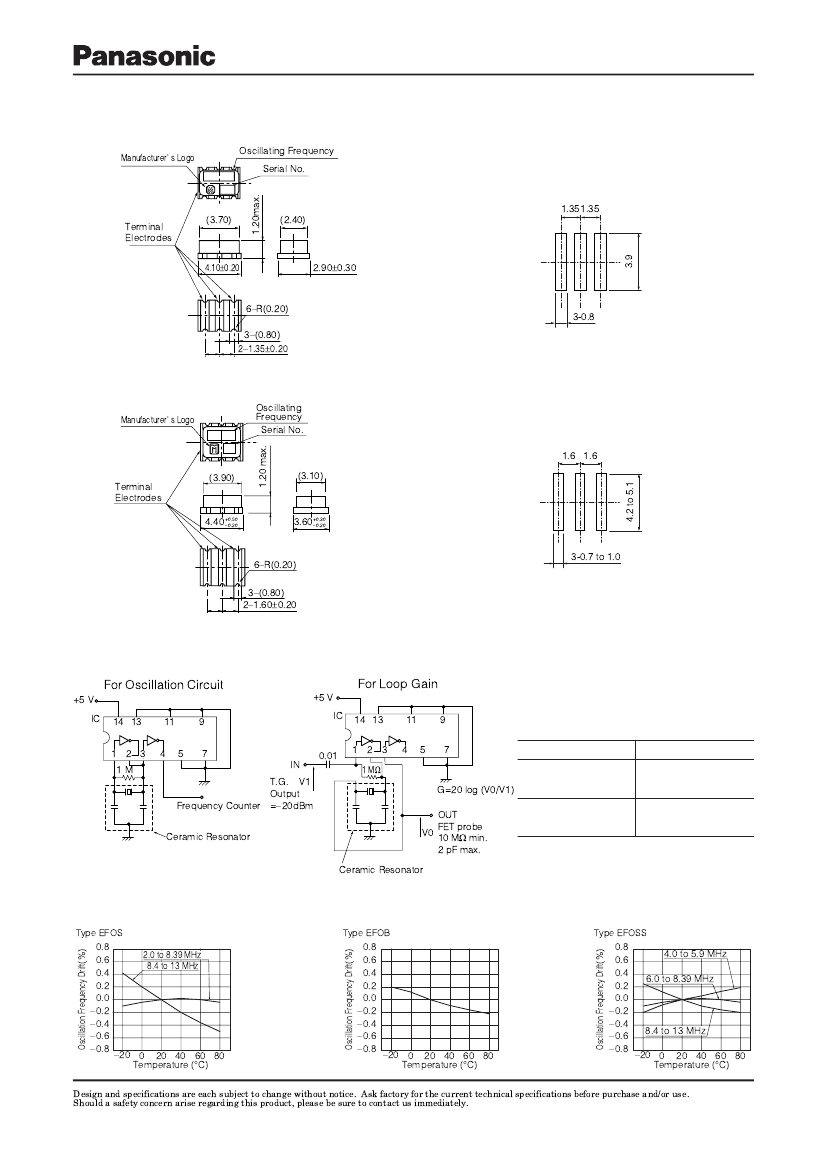

Ceramic Resonators (Chip Type)
■
Dimensions in mm (not to scale)
Recommended Land Dimensions
[Type EFOBM]·····12.0
to 20.0 MHz
Manufacturer' s Logo
Oscillating Frequency
Serial No.
[Type EFOBM]
1.20max.
Terminal
Electrodes
(3.70)
(2.40)
1.351.35
4.10
±
0.20
6ÐR(0.20)
3Ð(0.80)
2Ð1.35
±
0.20
2.90
±
0.30
3-0.8
[Type EFOJM]·····16.0
to 20.0, 30.0 to 50.0 MHz
Manufacturer' s Logo
Oscillating
Frequency
Serial No.
1.20 max.
[Type EFOJM]
1.6 1.6
4.40
+0.50
Ð0.20
3.60
+0.30
Ð0.20
3-0.7 to 1.0
6ÐR(0.20)
3Ð(0.80)
2Ð1.60
±
0.20
4.2 to 5.1
Terminal
Electrodes
(3.90)
(3.10)
3.9
(Unit:mm)
■
Test Circuits Diagram
+5 V
IC 14 13
For Oscillation Circuit
11
4 5
9
7
+5 V
IC 14 13
0.01
For Loop Gain
11
4 5
9
7
G=20 log (V0/V1)
Frequency
2.00 to 8.39 MHz
8.40 to 50.0 MHz
IC
µPD 4069UBC
or equivalent
µPD 74HCU04
or equivalent
1 2 3
1 M
Ω
IN
T.G. V1
Output
Frequency Counter
=Ð20dBm
1 2 3
1 M
9
Ceramic Resonator
OUT
V0 FET probe
10 M
9
min.
2 pF max.
Ceramic Resonator
■
Typical Characteristics
·····
Temperature Characteristics
Type EFOS
0.8
2.0 to 8.39 MHz
0.6
8.4 to 13 MHz
0.4
0.2
0.0
-
0.2
-
0.4
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Type EFOB
0.8
0.6
0.4
0.2
0.0
-
0.2
-
0.4
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Type EFOSS
0.8
4.0 to 5.9 MHz
0.6
0.4
6.0 to 8.39 MHz
0.2
0.0
-
0.2
-
0.4
8.4 to 13 MHz
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Mar. 2005
Oscillation Frequency Drift(%)
Oscillation Frequency Drift(%)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Oscillation Frequency Drift(%)
Ceramic Resonators (Chip Type)
■
Typical Characteristics
·····
Temperature Characteristics
Type
EFOSM
0.8
2.0 to 8.39MHz
0.6
8.4 to 13MHz
0.4
0.2
0.0
-
0.2
-
0.4
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Type
EFOBM
0.8
0.6
0.4
0.2
0.0
-
0.2
-
0.4
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Type
EFOJM
0.8
30 to 50 MHz
0.6
16 to 20 MHz
0.4
0.2
0.0
-
0.2
-
0.4
-
0.6
-
0.8
-
20 0 20 40 60 80
Temperature (¡C)
Oscillation Frequency Drift(%)
Oscillation Frequency Drift(%)
■

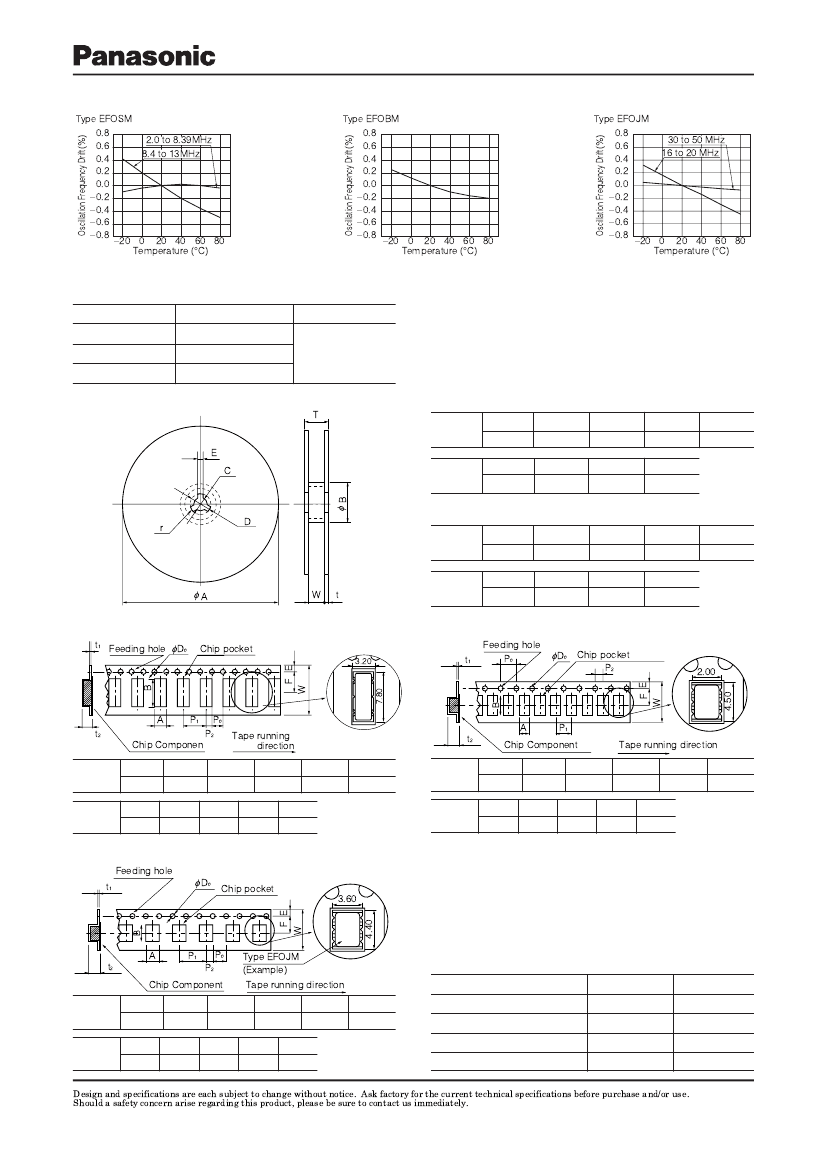

Packaging Specifications
●
Standard Packing Quantity
Type
EFOS, EFOSM
EFOSS
EFOB , EFOBM, EFOJM
Embossed Taping
2500 pcs./reel
2000 pcs./reel
1000 pcs./reel
6
Bulk
500 pcs./bag
●
Dimensions for Reel in mm (not to scale)
[Type EFOS, EFOSM]
Dim.
(mm)
fA
330±5
W
16.4
+2.0
0
fB
80 min.
T
22.4 max.
Oscillation Frequency Drift(%)
C
13.0±0.5
t
3 max.
D
21.0±0.8
r
1.0
E
2.0±0.5
-
+
B
*
Dim.
(mm)
H
,
[Type EFOSS, EFOB, EFOBM, EFOJM]
Dim.
(mm)
Dim.
fA
180±5
W
12.4
+2.0
0
fB
60 min.
T
18.4 max.
C
13.0±0.5
t
3 max.
D
21.0±0.8
r
1.0
E
2.0±0.5
B
)
9
J
(mm)
[Type EFOS, EFOSM]
t
1
Feeding hole
B
D
0
Chip pocket
[Type EFOSS]
F E
3.20
t
1
7.80
Feeding hole
P
0
B
D
0
Chip pocket
P
2
2.00
F E
W
B
W
t
2
Dim.
(mm)
Dim.
(mm)
A
P
1
Chip Componen
A
B
P
2
P
0
Tape running
direction
W
F
E
P
1
Dim.
(mm)
Dim.
(mm)
7.5±0.1 1.75±0.10 8.0±0.1
t
1
0.3
t
2
3.5 max.
t
2
A
A
B
P
1
Tape running direction
W
F
E
P
1
5.5±0.1 1.75±0.10 4.0±0.1
t
1
t
2
Chip Component
2.6±0.2 5.1±0.2 12.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
3.7±0.2 8.3±0.2 16.0±0.3
P
2
P
0
fD
0
1.5
+0.1
0
2.0±0.1 4.0±0.1
2.0±0.1 4.0±0.1
0.6 max. 3.0 max.
[Type EFOB, EFOBM, EFOJM]
Feeding hole
t
1
B
D
0
Chip pocket
3.60
F E
W
t
2
Dim.
(mm)
Dim.
(mm)
A
1
P
2
A
P
1
P
2
P
0
Chip Component
B
2
P
0
W
Type EFOJM
(Example)
Tape running direction
F
E
P
1
5.5±0.1 1.75±0.10 8.0±0.1
t
1
t
2
4.40
B
Dim. (mm)
A
1
B
2
6.0±0.2
4.6±0.2
4.9±0.2
12.0±0.3
fD
0
1.5
+0.1
0
Type EFOB
Type EFOBM
Type EFOJM
3.7±0.2
3.4±0.2
4.1±0.2
2.0±0.1 4.0±0.1
0.6 max. 3.0 max.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2005
4.50
B
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

EFOBMFREQ1E0 Related Products

EFOBMFREQ1E0 EFOBMFREQ1B5
Description Ceramic Resonator, 12MHz Min, 20MHz Max, CERAMIC PACKAGE-3 Ceramic Resonator, 12MHz Min, 20MHz Max, CERAMIC PACKAGE-3
Is it Rohs certified? conform to conform to
Maker Panasonic Panasonic
package instruction CERAMIC PACKAGE-3 CERAMIC PACKAGE-3
Reach Compliance Code unknown unknown
Other features TAPE AND REEL; BULIT-IN CAPACITOR BULK; BULIT-IN CAPACITOR
Crystal/Resonator Type CERAMIC RESONATOR CERAMIC RESONATOR
frequency stability 0.3% 0.3%
frequency tolerance 10000 ppm 5000 ppm
JESD-609 code e3/e4 e3/e4
Manufacturer's serial number EFOBM EFOBM
Installation features SURFACE MOUNT SURFACE MOUNT
Maximum operating frequency 20 MHz 20 MHz
Minimum operating frequency 12 MHz 12 MHz
Maximum operating temperature 80 °C 80 °C
Minimum operating temperature -20 °C -20 °C
physical size L4.1XB2.9XH1.2 (mm)/L0.161XB0.114XH0.047 (inch) L4.1XB2.9XH1.2 (mm)/L0.161XB0.114XH0.047 (inch)
surface mount YES YES
Terminal surface TIN/GOLD TIN/GOLD

Recommended Resources

DAC0832 single-bipolar voltage output interface circuit

300A-18V three-phase thyristor voltage regulating electrolytic power supply circuit

Simple buzzer circuit one c

Mechanical power slide control circuit with reverse working feed

Practical ultrasonic remote control transmitter circuit

Pulse stretching circuit (1)

Application Problems of Single Chip Microcomputer Based on GSM Module
I am working on a GSM-based home security system. I need a GSM module and a video module based on HT46 to send unsafe information to the homeowner via SMS. I would like to ask (1) where should I start...
zhaoheping Embedded System
z-turn board CD information
232172 Link: http://pan.baidu.com/s/1booVp4V Password: 8veq...
574433742 FPGA/CPLD
CPU card programming process
Assume that all files of CPU cards and ESAM modules can be read freely, but permission authentication is required when writing files. When the single-chip microcomputer control circuit detects that a ...
Aguilera Microcontroller MCU
Complete knowledge of electronic components (I)
Complete knowledge of electronic components (I)...
安_然 Analog electronics
Please tell me the purpose of s3c44b0 pseudo instruction OPT
The function of the OPT pseudo-instruction is to set the output selection of the source code list, including forced page break, forced line number to zero, etc. 1. Where is the code list generated aft...
kknd21cn Embedded System
Detecting muscle electrical signals to achieve gesture control (IoTT Caravan) - EEWORLD University
Detecting muscle electrical signals to achieve gesture control (IoTT Caravan) : https://training.eeworld.com.cn/course/2220...
chenyy DIY/Open Source Hardware
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. GUS-SS8BLF-01-9101-JG
  2. 8LT025F61AD
  3. PIC7ER-220-MT
  4. 745C1021783FP
  5. 07R4514T20000
  6. M39003/01-2452D/HR
  7. GUS-QS0BLF-031541-BB
  8. 272E-8250-FB10Q
  9. P4SMAJ13
  10. A2549WRK-2x14P
  11. A2543WVA-12P-WH-N11-G20
  12. SPH4018H470MT

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Special 29: How to measure the time between two signals
  2. S3C2440—1. Familiarity with bare metal development board
  3. Espressif Systems Creates Bluetooth Mesh Solutions to Unleash the Unlimited Potential of IoT
  4. Anybus Wireless Bolt CAN: CAN communication via Wi-Fi or Bluetooth
  5. Function and importance of SF6 moisture meter
  6. Focusing on the development of high-precision 3D cameras, Zhixiang Optoelectronics completed a round B financing of tens of millions of yuan
  7. How to use MF47 pointer multimeter
  8. ONLYOFFICE announces new partner program to expand online presence in the Chinese market
  9. Hechuang Capital: Helping semiconductor technology companies win the battle of domestic substitution
  10. Analysis of software or hardware causes of PLC crash

Technical ResourceMore

  1. EWB Electronics Lab Software Multimedia Video Tutorial
  2. Protel DXP typical example (an example file).
  3. DEMIG Automatic Diffusion Module
  4. Internet Application Basics Electronic Lesson Plan Tutorial
  5. Agilent Microwave Training Materials
  6. XAPP514-Audio and video connectivity solutions for the broadcast industry
  7. How to ensure the quality of optical fiber links: testing
  8. Constant pressure water supply system circuit diagram
  9. Discussion on information security issues of cloud computing
  10. A microstrip-fed dual-notch ultra-wideband antenna

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 491  2156  2725  2254  1280  10  44  55  46  26
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
