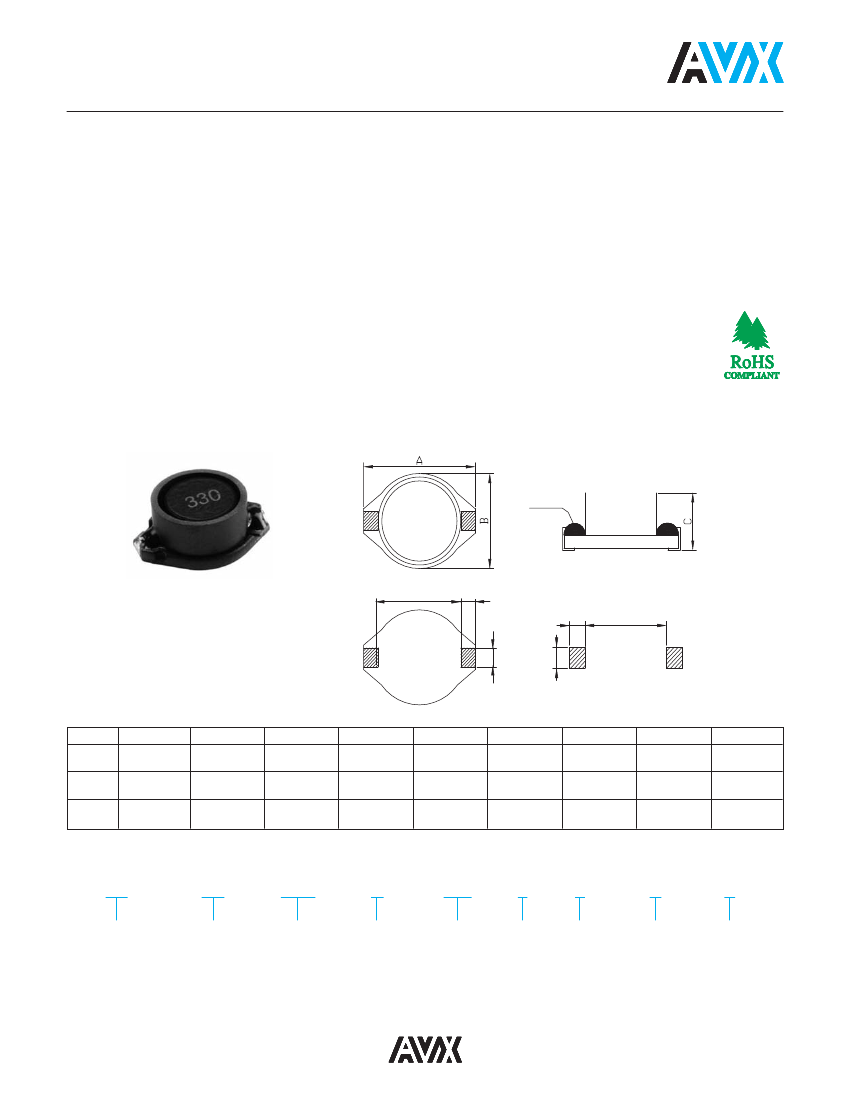

LMax SMD Power Inductor
LMXS Series – Shielded Style D
FEATURES
• Magnetically shielded against radiation
• 0704 can help achieve longer battery life significantly in
handheld communication devices.
• 1309 / 1915 designed for the higher current requirements of
portable computers.
• 0704 hasceramic base with gold–plating
• 1309 / 1915 has LCP plastic base
CHARACTERISTICS
• Saturation Rated Current (IDC): The DC current when the
inductance becomes 10% lower than its initial value. (Ta=25°C)
• Temperature Rise Current (I rms): The actual current when
temperature of coil becomes Δ40°C. (Ta=25°C)
• Operating temperature range: -40
~
85°C
APPLICATIONS
• Portable Telephones
• Personal Computers
• Other Various Electronic Appliances
• DC/DC Converters, etc.
INDUCTANCE AND RATED
CURRENT RANGES
• 0704
1.0
~
10000μH
3.0
~
0.02A
• 1309
1.0
~
1000μH
5.0
~
0.17A
• 1915
10
~
1000μH
3.9
~
0.53A
• Electrical specifications at 25°C
DIMENSIONS
680
D
F
EPOXY
I
E
J
H
mm (inches)
Type
0704
1309
1915
A max.
6.60
(0.260)
12.95
(0.510)
18.54
(0.730)
B max.
4.45
(0.175)
9.40
(0.370)
15.24
(0.600)
C max.
2.92
(0.115)
5.21
(0.205)
7.62
(0.300)
D
4.32
(0.170)
7.62
(0.300)
12.70
(0.500)
E
1.27
(0.050)
2.54
(0.100)
2.54
(0.100)
F
1.02
(0.040)
2.54
(0.100)
2.54
(0.100)
H
3.56
(0.140)
2.79
(0.110)
2.79
(0.110)
I
1.40
(0.055)
2.92
(0.115)
2.92
(0.115)
J
4.06
(0.160)
7.37
(0.290)
12.45
(0.490)
HOW TO ORDER
LM
Family
LM = Power Inductor
XS
Series
XS = Shielded
0704
Size
0704 = 7x4xh
1309 = 13x9xh
(h = see catalog)
M
Tolerance
M = ±20%
R04
Inductance
R04 = 0.039μH
R39 = 0.390μH
3R9 = 3.900μH
390 = 39.00μH
391 = 390.0μH
392 = 3900μH
D
Style
T
Termination
T = Sn Plate
A
Special
A = Standard
S
Packaging
S = 13" Reel
21
