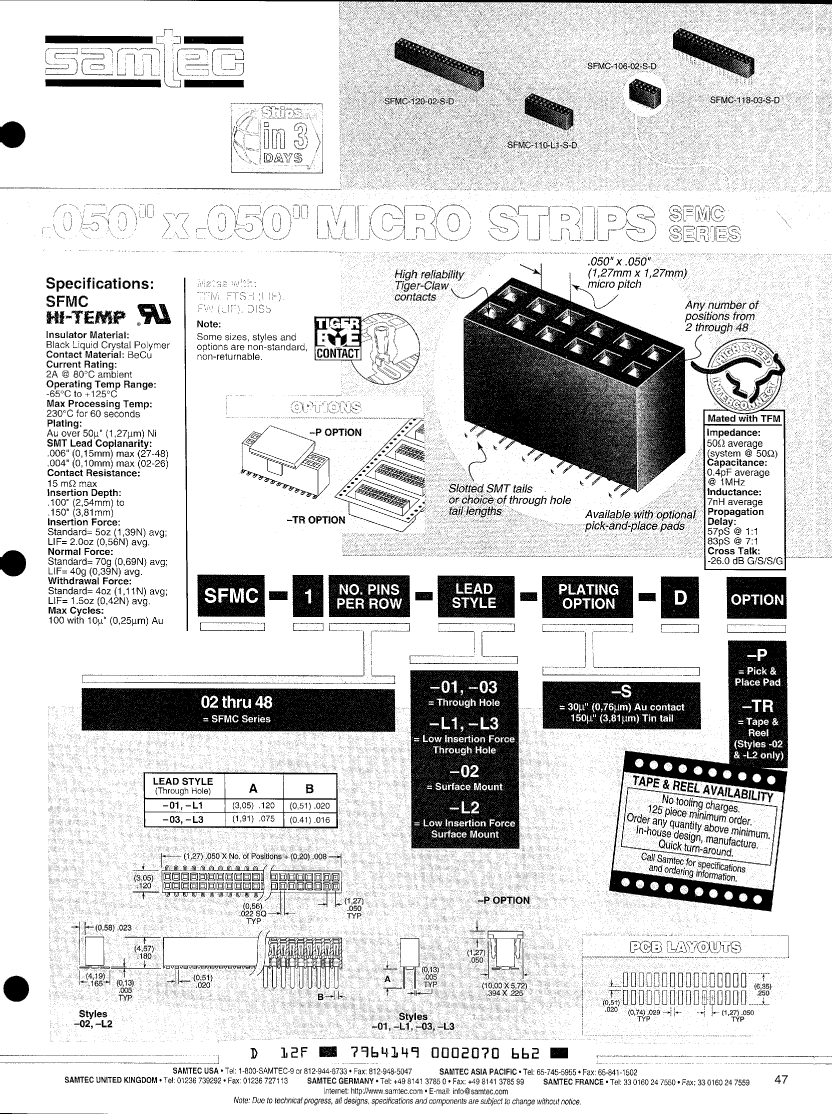

SFMC-125-L3-F-D-P datasheet, PDF

SFMC-125-L3-F-D-P: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug,; CategoryThe connector The connector; File Size305KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SFMC-125-L3-F-D-P Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Other features	PICK & PLACE PAD
Board mount options	MOUNTING FLANGE
body width	0.145 inch
subject depth	0.18 inch
body length	1.265 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	RIGHT
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.4448 N
