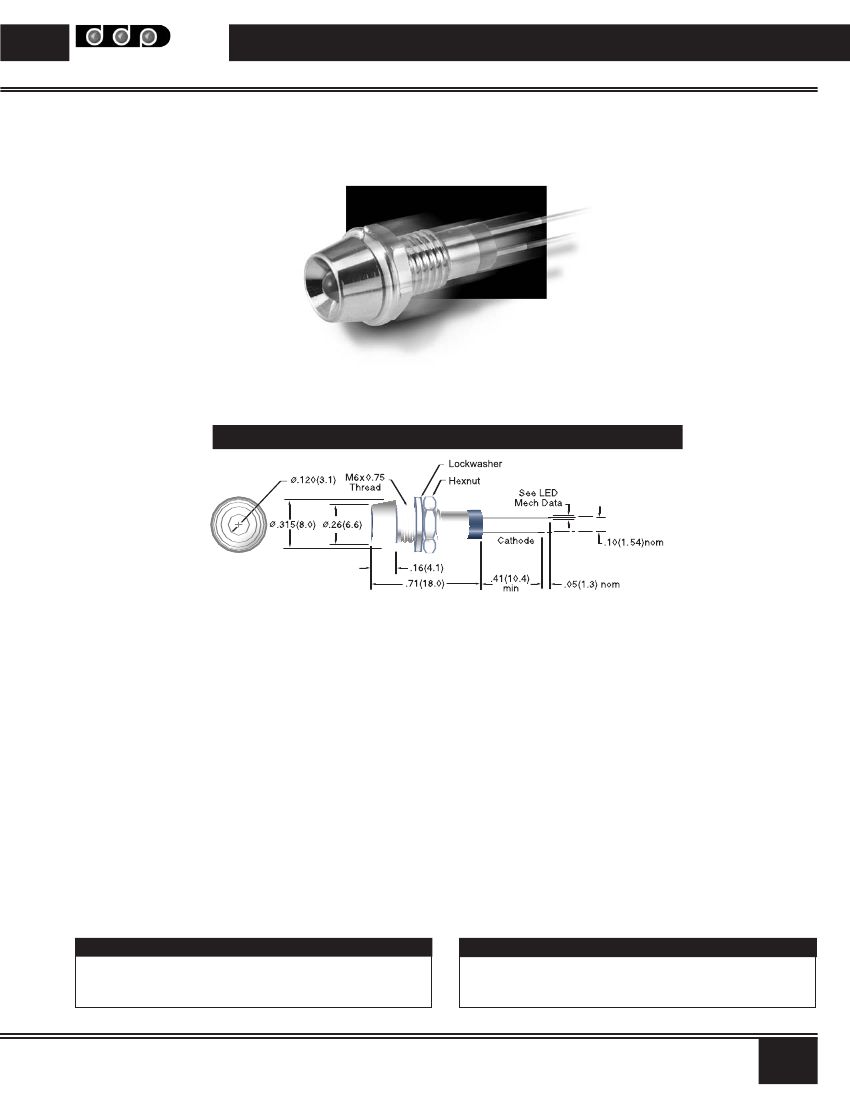

.230" PANEL MOUNT REFLECTOR

T-1, Water-Tight Optional

- Reflective Chrome-Plated Body - Mounting Hardware Provided

- For Detailed LED Data, See Discrete Section, MODEL 125

Data Display Products

®

- Maximum Panel Thickness .125"(PMRL125); .070"(PMRL125, Water-Tight)

1

Model

PMRL125

Wires

W

(optional)

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each numbered category in the tables below.

Water

Tight

1

PMRL125

Model

Wire

W

2

-BCG

3

LED

Voltage

12H

4

§

Part Number

PMRL125W-BCG12H

2

LED

-BR

-BA

-BG

STANDARD INTENSITY - DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

Voltage/Current

Design

Max

Vf/If

V/C Table I

5V/22mA

5.5V/28mA

12V/20mA

14V/25mA

15V/24mA

16.5V/28mA

24V/17mA

26V/20mA

28V/16.5mA

30V/18mA

48V/15mA

50V/16mA

60V/9mA

65V/10mA

120VAC/3.5mA

130VAC/4mA

Voltage/Current

Design

Max

Vf/If

V/C Table II

5V/15mA

5.5V/23mA

12V/15mA

14V/20mA

15V/15mA

16.5V/18mA

24V/15mA

26V/18mA

28V/15mA

30V/17mA

48V/9.5mA

50V/10mA

60V/7mA

65V/8mA

120VAC/3.5mA

130VAC/4mA

Iv

[1]

(mcd)

Viewing

V/C

Table

[2]

3

Voltage

[3]

2

5H

12H

15H

24H

28H

48H

60H

120

[4]

Angle

60

635

583

565

14

I

MEDIUM INTENSITY - TINTED ENCAPSULATION

LED

-BCR

-BCA

-BCG

λpk

Color

RED

AMB

GRN

(nm)

Iv

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

45

635

583

565

60

30

44

I

4

Water

Tight

[5]

-WT

(optional)

HIGH INTENSITY - WATERCLEAR ENCAPSULATION

LED

-NWR

-NWA

-NWG

-NWB

-NWW

λpk

Color

RED

AMB

GRN

BLU

WHT

(nm)

Iv

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

35

45

55

634

592

520

465

2180

2000

600

1100

I

II

SPECIALTY LEDs - DIFFUSED ENCAPSULATION

LED

-RLP

[6]

-ALP

[6]

-GLP

[6]

-RG

λpk

Color

RED

AMB

GRN

RED/GRN

(nm)

Iv

[1]

(mcd)

Viewing

V/C

Table

[2]

Angle

50

72

Description

Low Power

Bi-Color, Red Cathode

635

583

565

630/565

2.1

1.6

2.1

5.0/5.0

I

[1] Iv = typical luminous intensity @ If = 20mA(Ta =25°C). For Low Power LEDs, If = 2mA.

[2] See Voltage/Current table for design specifications. Design current for low power LEDs = 2mA.

[3] Ta = 25°C. Votalge "2" indicates external resistor required. Voltages 5H through 60H are VDC. For

AC operation, insert D after Voltage (e.g. 24HD). D indicates built-in rectifier, not required for 5H or

120VAC. DC operation not available for 120VAC. Bi-Color not available in AC voltages.

[4] Select high intensity LEDs only.

[5] Drip-proof (not submersible), supplied with two neoprene gaskets.

[6] Omit H when selecting a voltage (e.g. PMRL125-RLP12).
