TCXO-205CA-14.40MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TCXO-205CA-14.40MHZ

TCXO-205CA-14.40MHZ: DescriptionOscillator,; CategoryPassive components oscillator; File Size35KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

TCXO-205CA-14.40MHZ Overview

Oscillator,

TCXO-205CA-14.40MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AVX
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	14.4 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	9mm x 7mm x 2mm
Maximum slew rate	2 mA
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
technology	SINE

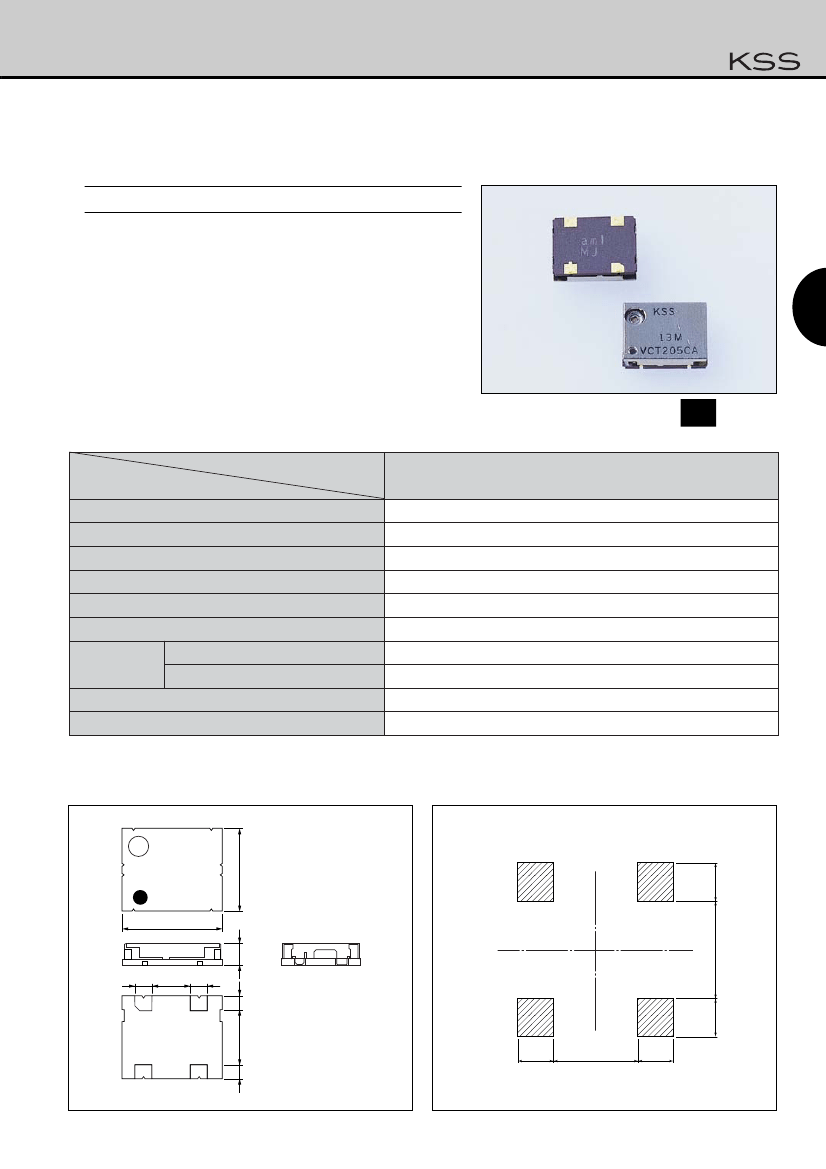

TCXO-205CA-14.40MHZ Preview

Crystal Oscillator

(VC-)TCXO-205CA

TCXO，VC-TCXO

■

Features

¡VC-TCXO

for Personal Cellular Phone.

¡Because

it is leadless type, automatic mounting is possible.

¡Small

size. (9×7×2mm)

¡Reflow

Soldering.

¡Low

power consumption.

Original Size

■

Specifications

Type

Item

Standard Frequency

Frequency Stability

Frequency Deviation/Voltage (only VC-TCXO)

Aging

Supply Voltage

Supply Current

Load

Output

Level

Start up time

Capacity／Weight

※1

Please contact us for reflow.

TCXO-205CA

※1

VC-TCXO-205CA

12.8、13.0、14.4、16.8、19.2、19.68、19.8MHz

±2.5×10

−

/−30~+75:

8~12×10

−

/V (Positive)

±1×10

−

MAX./year

+3V±5%

2.0mA MAX.

10k

Ω

//10pF

0.8V

P-P

MIN. (DC Blocked)

5m sec MAX.

0.13cc、0.33g

■

Outline

(VC-)TCXO-205CA

■

Land Pattern(reference)

7±0.2

9±0.2

2.0 MAX.

4.2

1.4

3.7

1.4

1.2

4.6

CONNECTION

1:VC VC-TCXO

NC TCXO

2:GND

3:OUTPUT

4:+DC

1.5

3.58

1.5

1.2

Dimensions(mm)

- 64 -

1.6

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TCXO-205CA-14.40MHZ Related Products

	TCXO-205CA-14.40MHZ	VC-TCXO-205CA-12.80MHZ	VC-TCXO-205CA-13.00MHZ	VC-TCXO-205CA-14.40MHZ	VC-TCXO-205CA-16.80MHZ	VC-TCXO-205CA-19.20MHZ	VC-TCXO-205CA-19.68MHZ	VC-TCXO-205CA-19.80MHZ	TCXO-205CA-16.80MHZ	TCXO-205CA-13.00MHZ
Description	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,	Oscillator,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX	AVX
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4	4	4	4	4	4
Nominal operating frequency	14.4 MHz	12.8 MHz	13 MHz	14.4 MHz	16.8 MHz	19.2 MHz	19.68 MHz	19.8 MHz	16.8 MHz	13 MHz
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Oscillator type	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
physical size	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm	9mm x 7mm x 2mm
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Maximum supply voltage	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V
Minimum supply voltage	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V	2.85 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Frequency offset/pull rate	-	12 ppm	12 ppm	12 ppm	12 ppm	12 ppm	12 ppm	12 ppm	-	-
