D15P23B6GL00 datasheet, PDF - EEWORLD Datasheet

D15P23B6GL00: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15P23B6GL00 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

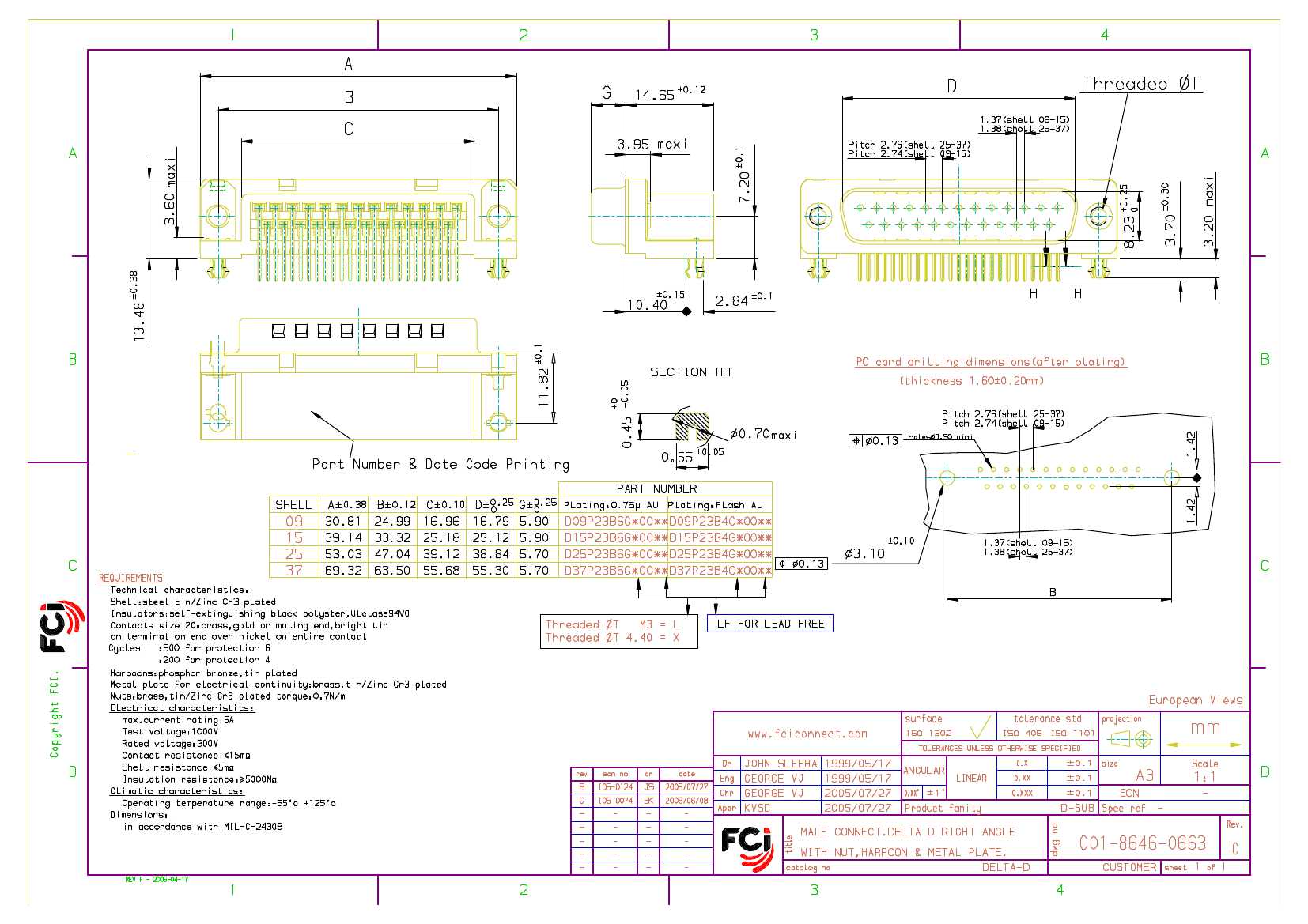

PDM: Rev:C

STATUS:

Released

Printed: Feb 17, 2010

.

	D15P23B6GL00	D09P23B6GL00	AMU2481	D15P23B4GX00	D15P23B6GX00	D09P23B4GX00
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal	Audio Mixer	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol	-	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	-	compliant	compliant	unknown
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	-	MALE	MALE	MALE
DIN compliance	NO	NO	-	NO	NO	NO
empty shell	NO	NO	-	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO
insulator material	POLYESTER	POLYESTER	-	POLYESTER	POLYESTER	POLYESTER
MIL compliance	NO	NO	-	NO	NO	NO
Mixed contacts	NO	NO	-	NO	NO	NO
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	-	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	-	STEEL	STEEL	STEEL
Housing size	2/A	1/E	-	2/A	2/A	1/E
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	-	15	15	9
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	94V-0
