HFR-PAT3060PLF50R0-20 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> HFR-PAT3060PLF50R0-20

HFR-PAT3060PLF50R0-20: DescriptionFixed Attenuator, 0MHz Min, 10000MHz Max, LEAD FREE PACKAGE-2; CategoryWireless rf/communication Radio frequency and microwave; File Size126KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

HFR-PAT3060PLF50R0-20 Overview

Fixed Attenuator, 0MHz Min, 10000MHz Max, LEAD FREE PACKAGE-2

HFR-PAT3060PLF50R0-20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	TT Electronics plc
Reach Compliance Code	unknown
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	40 dBm
JESD-609 code	e3
Maximum operating frequency	10000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	TIN
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

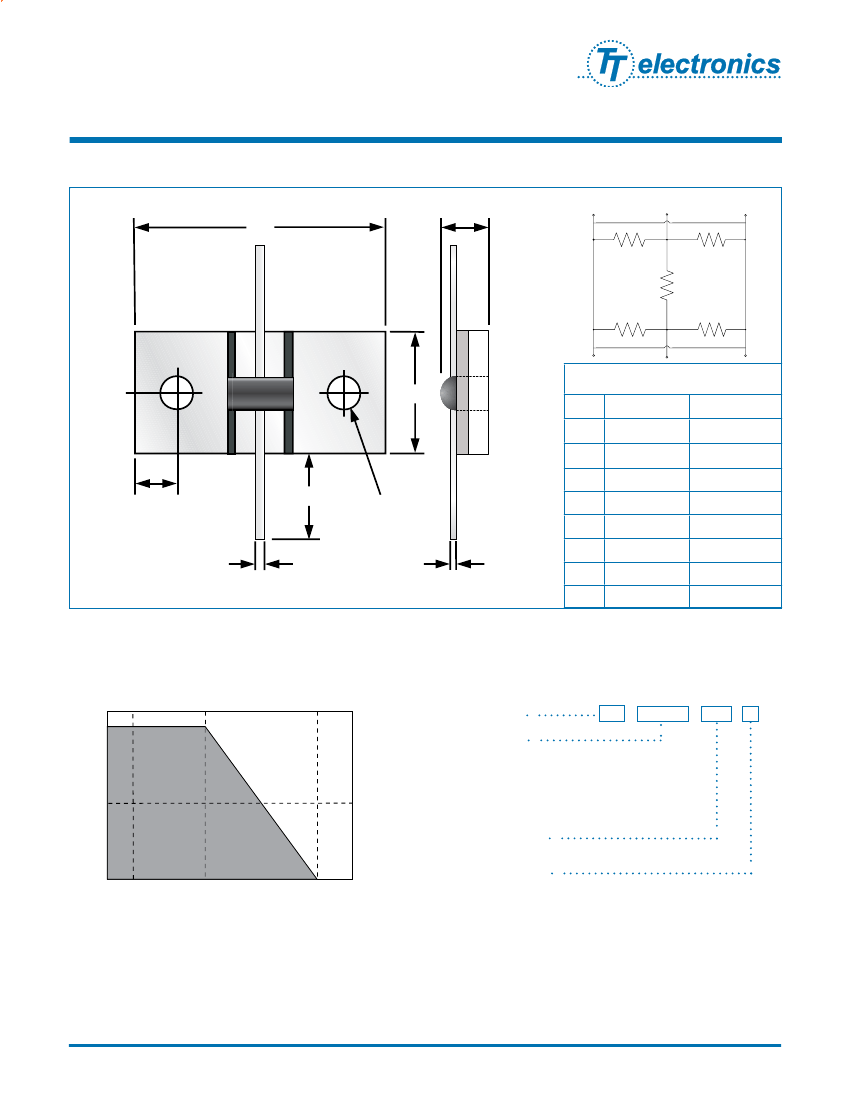

High Power

Flanged Attenuators

PAT-P Series

•

Power dissipation to 10W

•

High frequency operation to 10GHz

•

Flanged Package for heat sink mounting

IRC Advanced Film Division

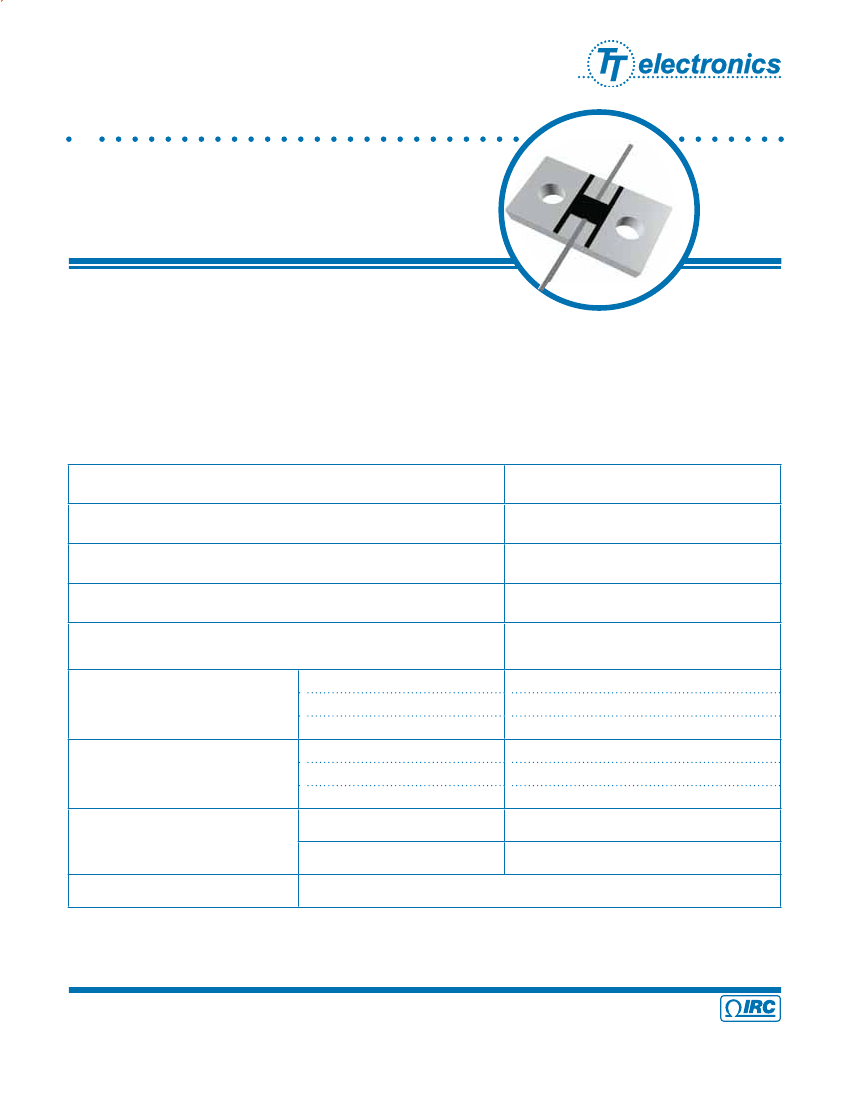

The PAT-P series power attenuator has a very low VSWR from DC to

10 GHz. High frequency performance combined with high power dissipa-

tion make this an ideal RF power attenuator. Typical applications are power meters and ampliﬁers where a

reduction in power is needed while maintaining transmission line characteristic impedances.

Electrical Data

Impedance

Frequency Range

Operating Temperature Range

Thermal Impedence

DC - 10GHz

-55°C to +125°C

5°C/W

Attenuation (dB)

DC to 2GHz

Attenuation

Tolerance

2GHz to 5GHz

5GHz to10GHz

DC to 2GHz

VSWR

2GHz to 5GHz

5GHz to10GHz

PAT3042P

Power Rating @70°C

PAT3060P

Terminations

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16, 20

±0.2 dB

±0.3 dB

±0.5 dB

1.1

1.2

1.3

1W (Max. 5W Heatsinked)

1.5W (Max. 10W Heatsinked)

90/10 Sn/Pb or 100% Sn

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

PAT-P Series Issue October 2006 Sheet 1 of 2

• Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
