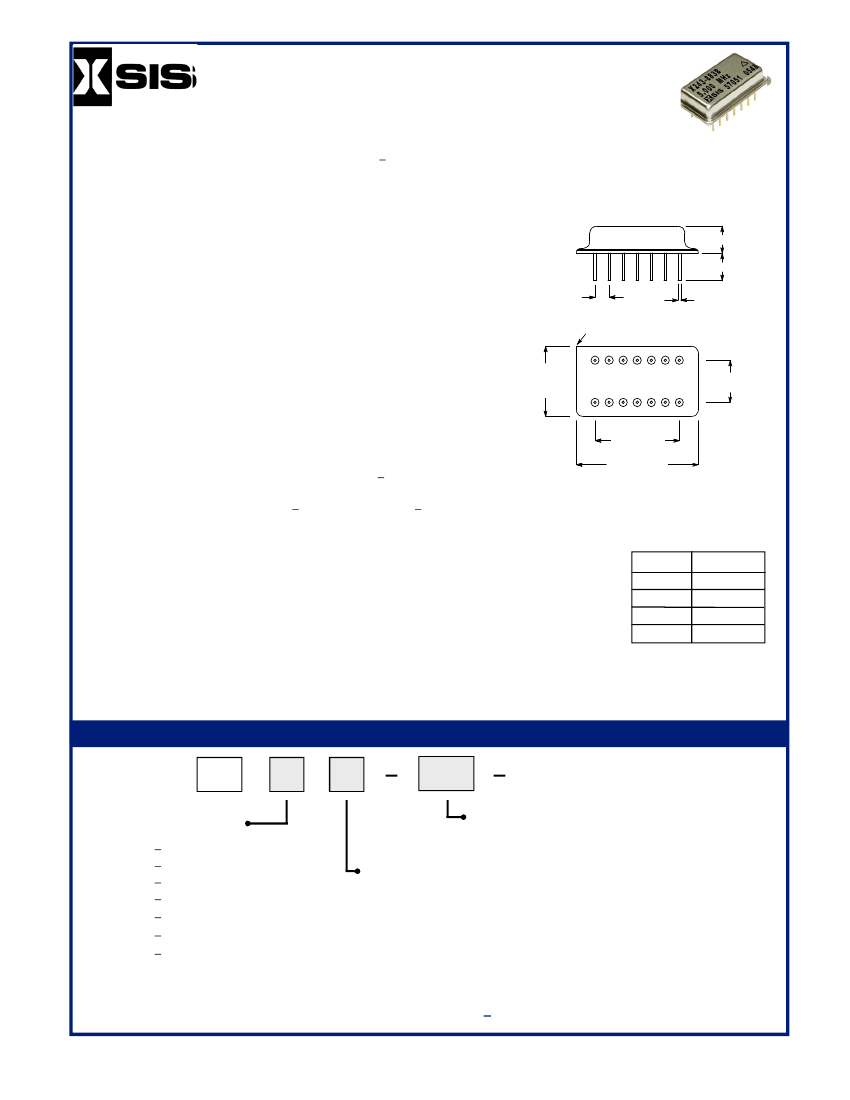

X200 SERIES, CMOS
High Reliability Hybrid Microcircuit Crystal Oscillators
( Similar to M55310/18 )
Frequency Range
Frequency Accuracy at + 25 C
Frequency Stability Vs. Temperature
Operating Temperature Range
Input Voltage (
See note below
)
Input Current
O
5.25 Hz to 12 MHz
+ 15 PPM Max.
See Options Below
See Options Below
+ 5 VDC to + 15 VDC + 10%
5 mA Max. @ + 5 VDC
25 mA Max. @ + 15 VDC
CMOS
200 K½ // 50 pf
60/40%
150 nS Max. @
+ 5 VDC
•
Ruggedized crystal mount
•
High Shock & Vibration
•
Low Profile Package
•
Gated Output Available
.200 Max
(5.08)
.225 + .025
–
(5.72 + .64)
–
.100 + .005
–
(2.54 + .13)
–
Pin 1 is identified
with a Sq. Corner
1
.507 Max
(12.88)
14
7
.300 + .005
–
(7.62 + .13)
–
.018 + .002
–
(4.57 + .05)
–
Output
Load
Symmetry ( at 50% Output Level )
Rise & Fall Times
( 10% to 90% Output Level )
Start-up Time
< 10 MHz
> 10 MHz
Frequency Stability Vs. 10% change in Voltage
Aging at +70
O
C
Package & Hermeticity
Terminations
Lead Soldering, Temp./Time
Package Weight & Thermal Resistance ( θ
JC
)
50 nS Max. @ + 15 VDC
8
.600 + .005
–
(15.24 + .13)
–
.877 Max
(22.28)
20 mS Max.
15 mS Max.
+ 4 PPM Max.
+ 3 PPM Max. first year, + 2 PPM Max./ Yr. thereafter
Conforms to the Requirements of MIL-PRF-55310
Dimensions: Inches (mm)
50 to 80 Microinches gold over 100 to 250 microinches Nickel,
Hot Solder Tinning per MIIL-PRF-55310 is optional at additional cost.
260 C Max for 10 Seconds Max.
O
Pin #
14
7
8
All Others
Function
B+
GND/CASE
OUTPUT
N/C
XXX
Gms typical,
50
O
C / Watt
Note:
Input Voltage must be specified. Minimum input voltage required depends upon the output
frequency and operating temperature range. Consult factory for your specific application.
Contact Xsis Engineering
for any other special requirements.
ORDERING INFORMATION ( Select from options below ) :
X2
Model #
FREQUENCY
883B
= Mil-Screening, Leave Blank Otherwise
H
= Hi-Rel Screening, Leave Blank Otherwise
Frequency Stability
1 = + 0.1%
2 = + 0.05%
3 = + 100 PPM
4 = + 50 PPM
5 = + 20 PPM
*
6 = + 10 PPM
*
7 = + 25 PPM
*
Operating Temperature Range
1=
2=
3=
4=
5=
6=
0 C to + 70 C
o
o
- 40 C to + 85 C
o
o
- 55 C to +125 C
o
o
- 55 C to +105 C
o
o
- 40 C to + 95 C
o
o
- 20 C to + 70 C
o
o
o
o
*
Options 5, 6 & 7 are not available for all
operating temperature range options
EXAMPLE:
X243 - 883B - 4.000 MHz = CMOS Output, + 50 PPM over -55 C to +125 C,
Mil-Screened , and 20.000 MHz
10/12
Xsis Electronics, Inc.
12620 W. 63rd St., Shawnee, KS 66216 Tel. 913-631-0448 Fax. 913-631-1170 email xsis@xsis.com
