FSA831 — USB2.0 High-Speed (480Mbps) Charger Detector with Isolation Switch

November 2011

FSA831 — USB2.0 High-Speed (480Mbps) Charger

Detection with Isolation Switch

Features

USB Detection

USB Battery Charging Rev. 1.2

Supports Data Contact Detect (DCD)

Dead Battery Provision (DBP)

with 30-Minute Timer

Isolation Switch Closes for

Charging Downstream Port (CDP)

Standard Downstream Port (SDP)

28V Over-Voltage Tolerance

-2V Under-Voltage Tolerance

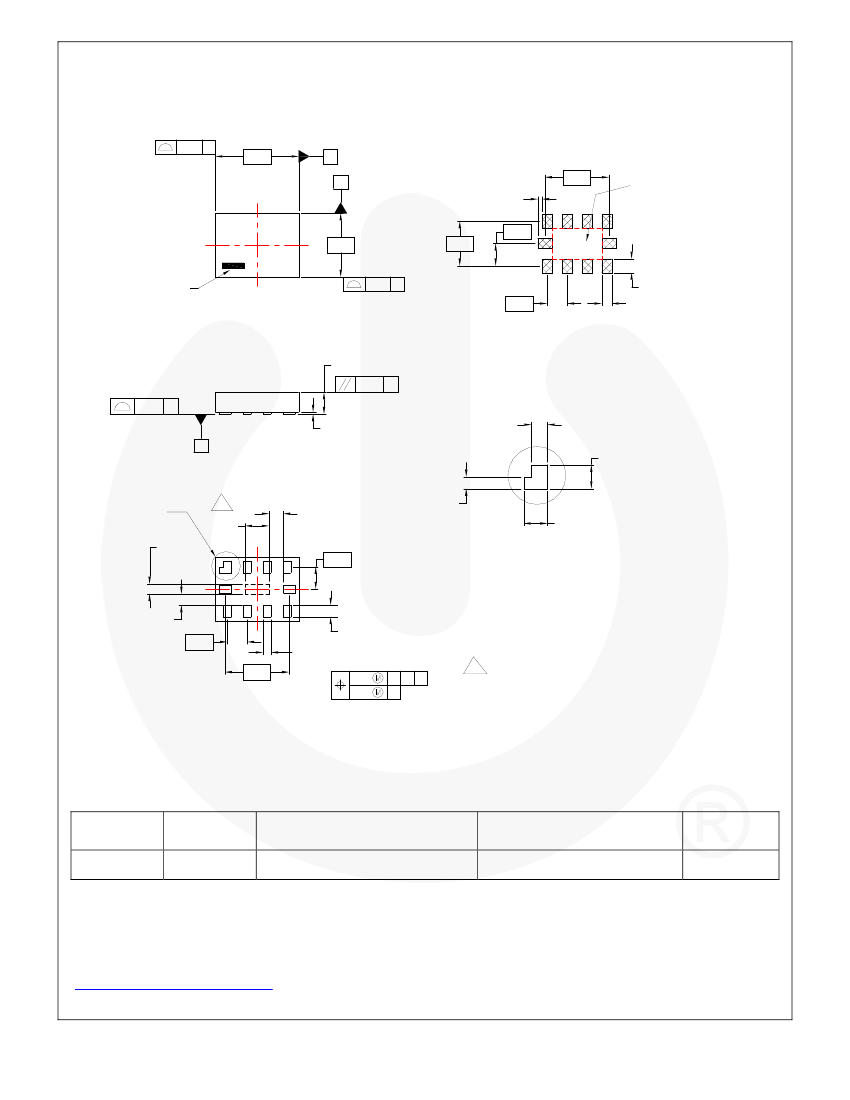

10-Lead MicroPak™

1.6 x 2.1mm, 0.5mm Pitch

FSA831L10X

Description

The FSA831 is a charger-detection IC with an integrated

isolation switch for use with a micro/mini USB port. The

FSA831 detects battery chargers and is compliant with USB

Battery Charging Specification, Rev 1.2 (BC1.2). The

algorithm incorporates Data Contact Detection (DCD), which

ensures that the shorter, inner pins of the USB connector are

making contact prior to continuing with battery charger

detection. The device determines if a Dedicated Charging

Port (DCP), Charging Downstream Port (CDP), or a typical

PC host, called a Standard Downstream Port (SDP), is

connected. If a charger is detected, the FSA831 determines

whether the charger is a DCP or CDP. For SDP and CDP

detection, an internal isolation switch is closed to connect

the D+/D- lines of the USB cable to the resident USB

transceiver within the portable device. The FSA831

conforms to all the constraints for the Dead Battery Provision

(DBP) within the BC1.2 specification, including a 30-minute

timer that cannot exceed 45 minutes, per BC1.2.

Switch Type

BUS

Package

Ordering

Information

Applications



MP3, Mobile Internet Device (MID), Cell Phone, PDA,

Digital Camera, Notebook and Netbook

Related Resources



For samples and questions, please contact:

analogswitch@fairchildsemi.com.

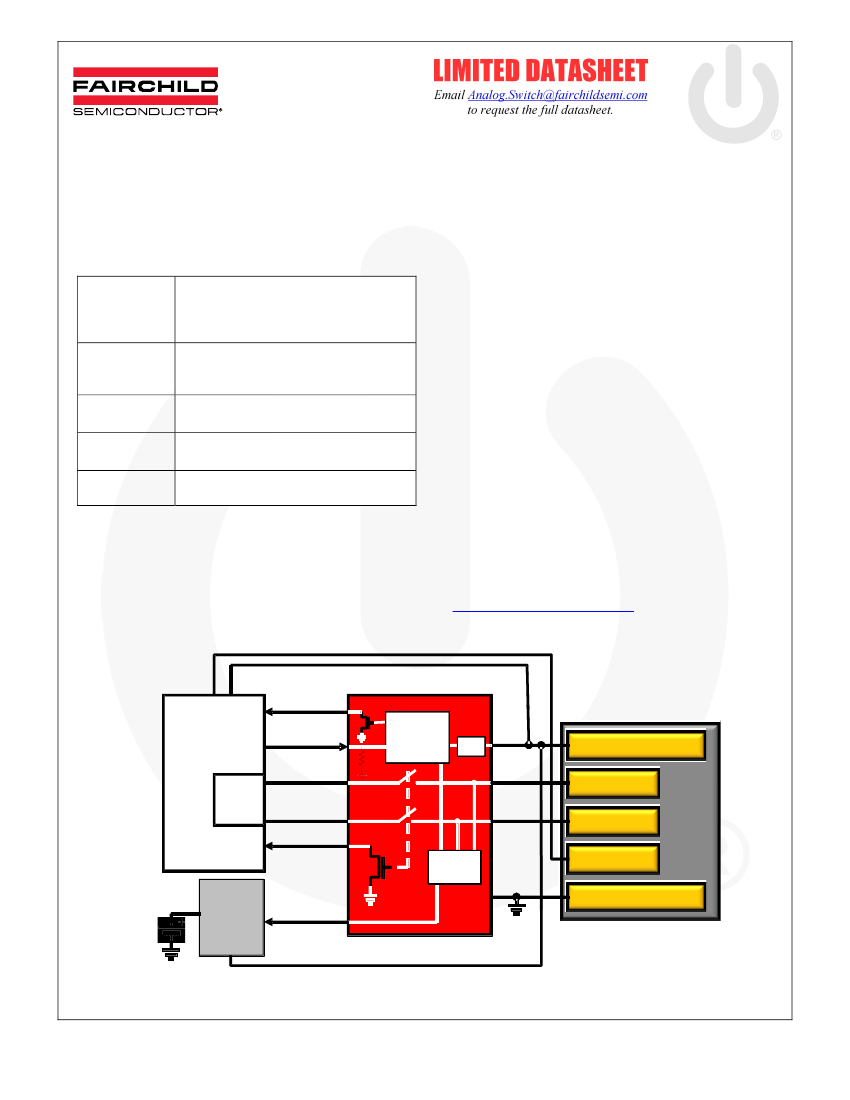

Typical Application

CHG_AL_N

FSA831

Regulator

and Switch

Control

System on

Chip (SoC)

USB

PHY

USB Port

OVT

GOOD_BAT

DM_HOST

DP_HOST

SW_OPEN

BUS

DM_CON

DP_CON

BUS_IN

D-

D+

Charger

Detect

CHG_DET

GND

Li+

Bat

Charger

Figure 1. Mobile Phone Example

FSA831 • Rev. 1.0.2

www.fairchildsemi.com
