MC7473P

Description
J-K Flip-Flop, TTL/H/L Series, 2-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP14, PLASTIC, DIP-14
Categorylogic    logic
File Size87KB,4 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

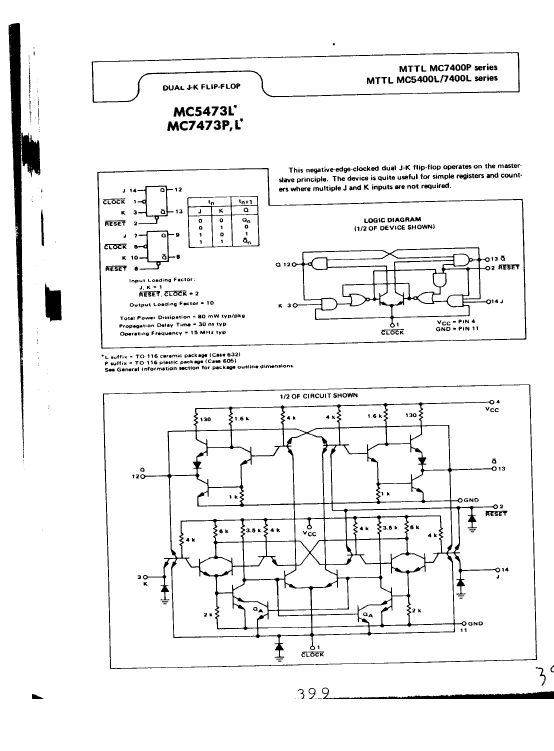

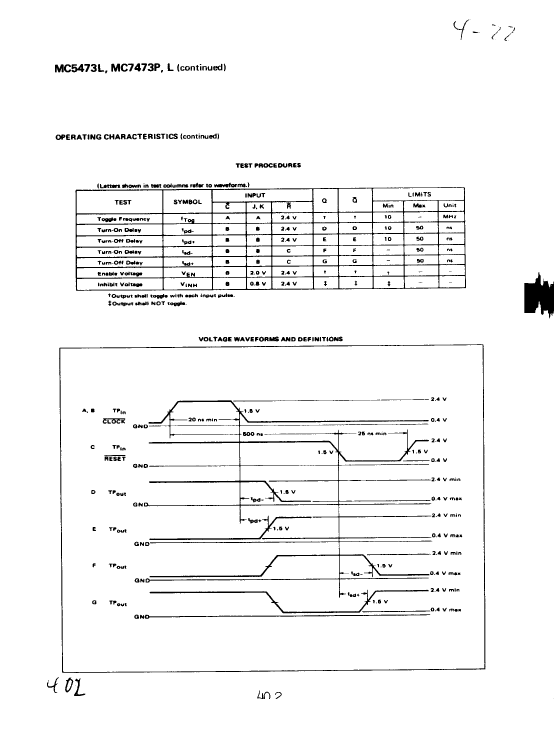

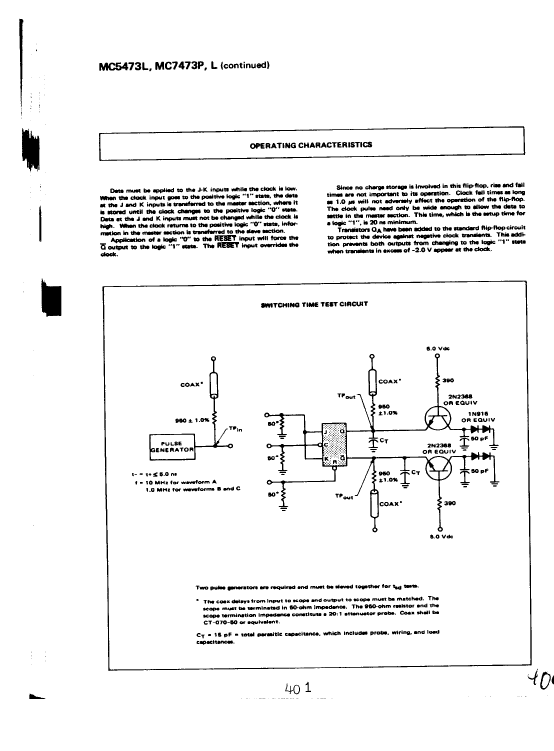

MC7473P Overview

J-K Flip-Flop, TTL/H/L Series, 2-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP14, PLASTIC, DIP-14

MC7473P Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionDIP,
Reach Compliance Codeunknown
seriesTTL/H/L
JESD-30 codeR-PDIP-T14
JESD-609 codee0
Logic integrated circuit typeJ-K FLIP-FLOP
Number of digits4
Number of functions2
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Output polarityCOMPLEMENTARY
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)30 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
This Material Copyrighted By Its Respective Manufacturer

MC7473P Related Products

MC7473P MC5473L
Description J-K Flip-Flop, TTL/H/L Series, 2-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDIP14, PLASTIC, DIP-14 J-K Flip-Flop, TTL/H/L Series, 2-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified? incompatible incompatible
Maker Motorola ( NXP ) Motorola ( NXP )
package instruction DIP, DIP,
Reach Compliance Code unknown unknown
series TTL/H/L TTL/H/L
JESD-30 code R-PDIP-T14 R-CDIP-T14
JESD-609 code e0 e0
Logic integrated circuit type J-K FLIP-FLOP J-K FLIP-FLOP
Number of digits 4 4
Number of functions 2 2
Number of terminals 14 14
Maximum operating temperature 70 °C 125 °C
Output polarity COMPLEMENTARY COMPLEMENTARY
Package body material PLASTIC/EPOXY CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
propagation delay (tpd) 30 ns 30 ns
Certification status Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.25 V 5.5 V
Minimum supply voltage (Vsup) 4.75 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO NO
technology TTL TTL
Temperature level COMMERCIAL MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Trigger type POSITIVE EDGE POSITIVE EDGE
