REVISION L
DO NOT
SCALE FROM
THIS PRINT

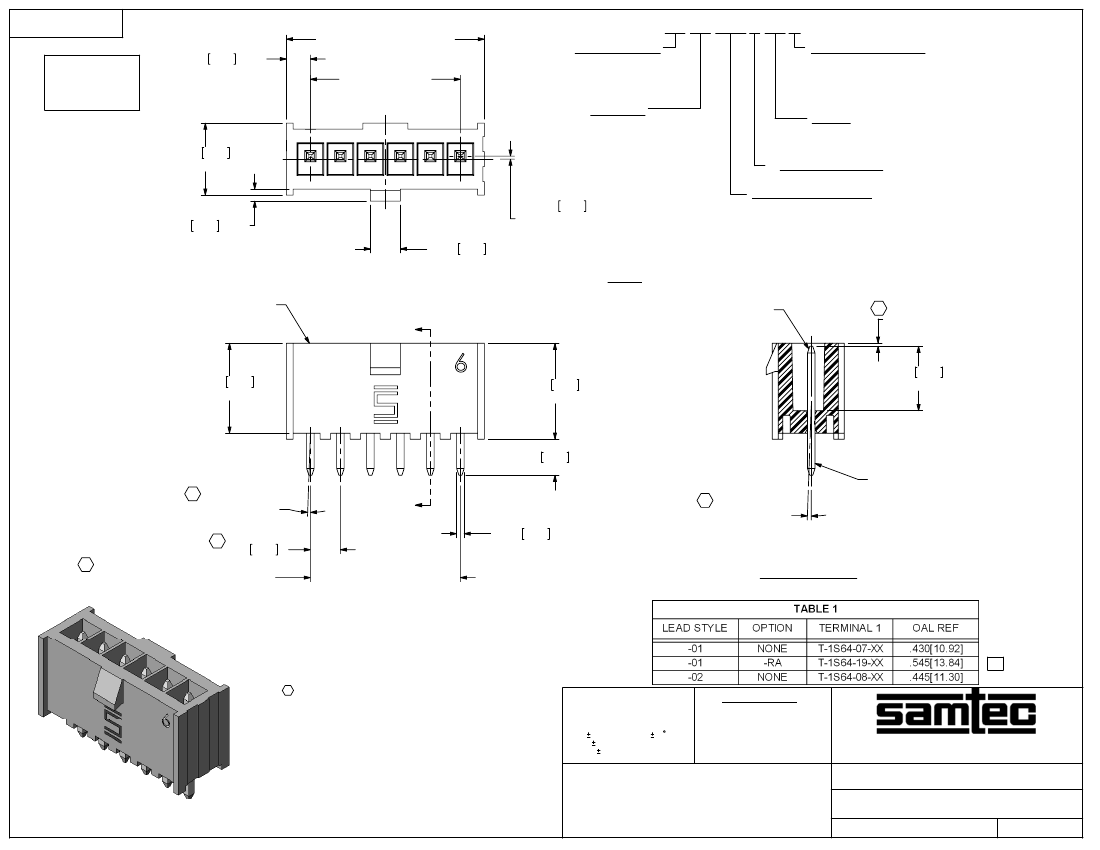

.080 2.03 REF
(No OF POS x .100[2.54])
+.060[1.52] REF
(No OF POS -1)
x .100[2.54] REF
01
02
IPL1-1XX-XX-XXX-S-XX-X
No OF POSITIONS
-02 THRU -25
POLARIZATION OPTION
-K: KEYED POLARIZATION
(USE IPL1-XX-S-K)
(SEE FIG. 4, SHEET 3)
(LEAVE BLANK FOR NO POLARIZATION, SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS AS OF REV J)
OPTION
-RA: RIGHT ANGLE (SEE FIG. 3, SHT 3)
(AVAILABLE WITH -01 LEAD STYLE ONLY)
ROW SPECIFICATION
-S: SINGLE (USE IPL1-XX-S)
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE T-1S64-XX-F)
-L: LIGHT SELECTIVE (USE T-1S64-XX-L)
-S: SELECTIVE (USE T-1S64-XX-S)
-H: HEAVY GOLD (USE T-1S64-XX-H)
-FM: FLASH SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-F)
-LM: LIGHT SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-L)
-SM: SELECTIVE/MATTE TIN TAILS (USE T-1S64-XX-S)
-STL: LIGHT SELECTIVE TIN/LEAD (USE T-1S64-XX-STL)
SEE NOTE 4
C4
.240 6.10
REF
C
L
LEAD STYLE
-01: THROUGH HOLE
(USE T-1S64-XX-XX)
-02: SURFACE MOUNT
(SEE FIG. 2, SHT 2)
(USE T-1S64-XX-XX)
.040 1.02 REF
C
L
.010 0.25 REF
TERMINAL OFFSET
FOR POLARIZATION
.100 2.54 REF
IPL1-106-01-XXX-S SHOWN
FIG. 1
IPL1-XX-S
"A"
SEE NOTE 7
.300 7.62
REF
.320 8.13
REF
.215 5.46
REF
.120 3.05 REF
T-1S64-07-XXX
C3
2° MAX SWAY
(TYP)
C2
"A"
.025 0.64 SQ REF
C5
2° MAX SWAY
(TYP)
.100 2.54
C1
((No OF POS - 1) x .100[2.54])±.008[0.20]
SECTION "A"-"A"
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM TERMINAL RETENTION: 1 LB [4.45 N].
3. PARTS TO BE MOLDED TO POSITION.
4. POST MUST BE WITHIN .005[0.13] OF EACH OTHER.
5. ALL PIN TO PIN DIMENSIONS TO BE MEASURED
FROM TIP TO TIP.
6. DIMENSION TO BE MEASURED AT BEND.
7. TIP TO BE FLUSH TO .015[0.38] BELOW TOP OF SHROUD.
8. NOTE DELETED.
9. PACKAGE ALL POSITIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[0.3]
.XXX: .005[0.13]
.XXXX: .0020[0.051]
MATERIAL:
L
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
STANDARD INSULATOR: LCP, COLOR: BLACK
-K INSULATOR: LCP, COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-S-XX-X-MKT.SLDDRW
.100[2.54] SINGLE ROW TERMINAL ASSEMBLY
DWG. NO.
BY:
D PURVIS
IPL1-1XX-XX-XXX-S-XX-X
05/02/2005
SHEET
1
OF
3
REVISION L
01

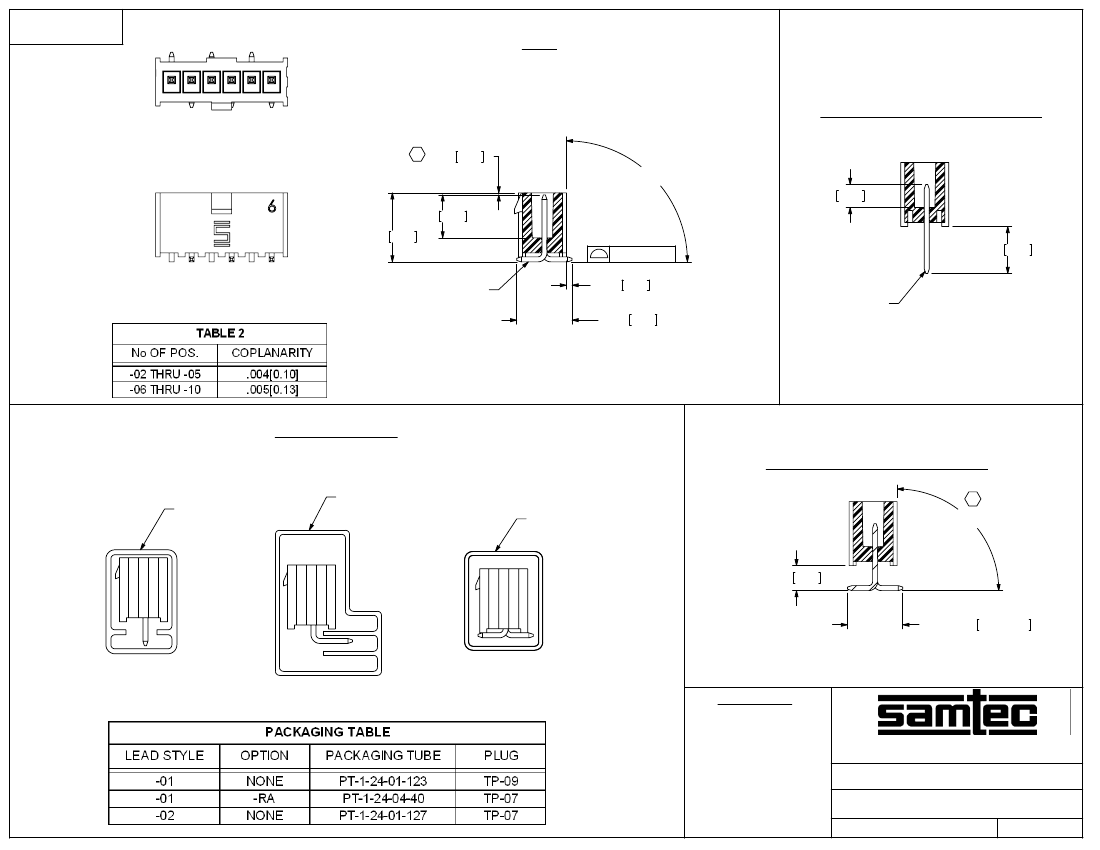

STYLE -02: SURFACE MOUNT
IPL1-106-02-XXX-S SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
02
FIG. 2
-02: SURFACE MOUNT IN-PROCESS 1
C6
.010 0.25
90°
- 4°
.115 2.92 REF
+0°
.215 5.46
.345 8.76
SEE TABLE 2
T-1S64-08-XXX
.028 0.72 REF
T-1S64-08-XXX
.277 7.04 REF
.235 5.97
(PARTS TO HAVE POSITION #1 LOADED
IN SAME DIRECTION AS ARROW ON TUBE)
PT-1-24-04-40
PT-1-24-01-127
PACKAGING VIEWS
-02: SURFACE MOUNT IN-PROCESS 2
C7
PT-1-24-01-123
90°
- 4°
+0°
.125 3.18
.277±.010 7.04±0.25
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-S-XX-X-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] SINGLE ROW TERMINAL ASSEMBLY
BY:
D PURVIS
IPL1-1XX-XX-XXX-S-XX-X
05/02/2005
SHEET
2
OF
3
REVISION L

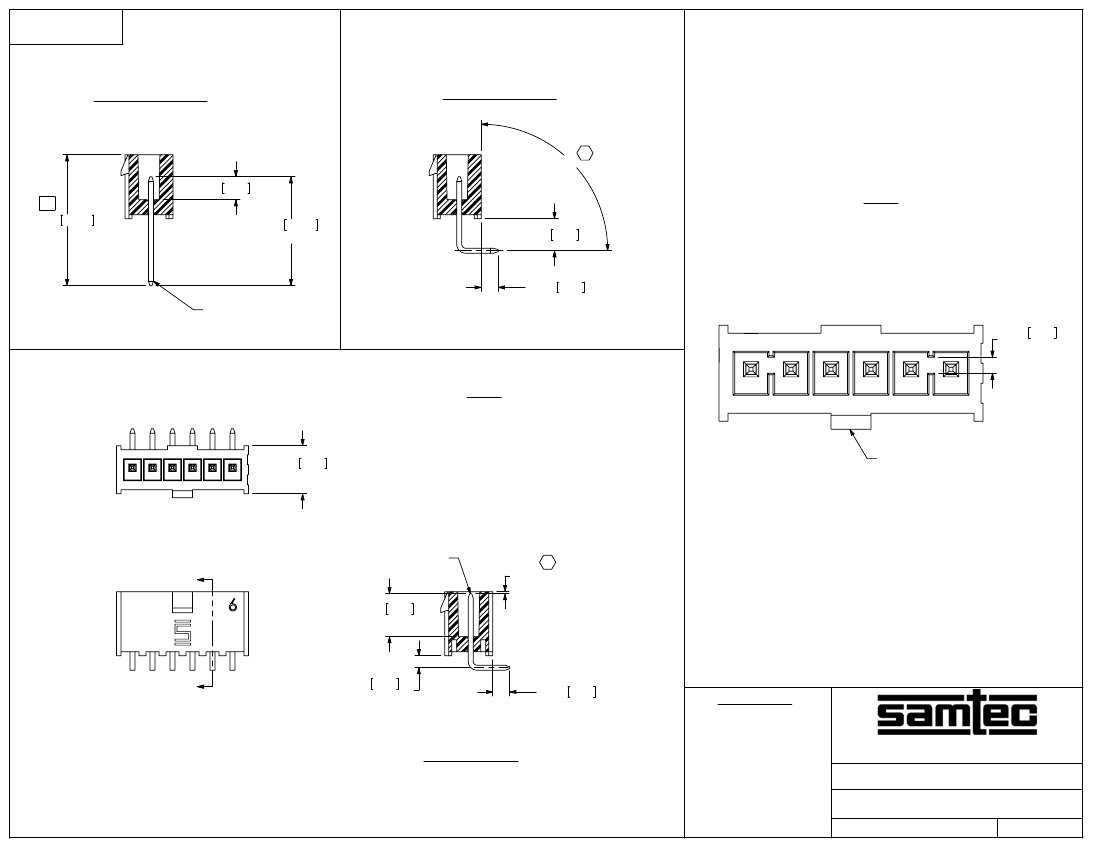

-RA: IN-PROCESS 1
-RA: IN-PROCESS 2
90°
C8
L
.655 16.64
.115 2.92 REF
.545 13.84
REF
.160 4.06
-K: KEYED POLARIZATION
(IPL1-106-01-XXX-S-K SHOWN)
(SAME AS FIG. 1 UNLESS OTHERWISE STATED)
FIG. 4
.085 2.16 REF
T-1S64-19-XXX
.040 1.02
REF
FIG. 3
01
02
IPL1-106-01-XXX-S-RA SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
.240 6.10
REF
IPL1-06-S-K
-RA: RIGHT ANGLE
T-1S64-19-XXX
"B"
.215 5.46
REF
C9
(SEE NOTE 7)
"B"
.060 1.52
(SEE NOTE 6)
.085 2.16 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
SECTION "B"-"B"
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100[2.54] SINGLE ROW TERMINAL ASSEMBLY
F:\DWG\MISC\MKTG\IPL1-1XX-XX-XXX-S-XX-X-MKT.SLDDRW
BY:
D PURVIS
IPL1-1XX-XX-XXX-S-XX-X
05/02/2005
SHEET
3
OF
3
