79R4400PC-75G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 79R4400PC-75G

79R4400PC-75G: DescriptionRISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，32 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

79R4400PC-75G Overview

RISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179

79R4400PC-75G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	PGA
package instruction	PGA, PGA179,18X18
Contacts	179
Reach Compliance Code	not_compliant
bit size	64
JESD-30 code	S-XPGA-P179
JESD-609 code	e0
Number of terminals	179
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA179,18X18
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
speed	75 MHz
Maximum slew rate	3600 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	30
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

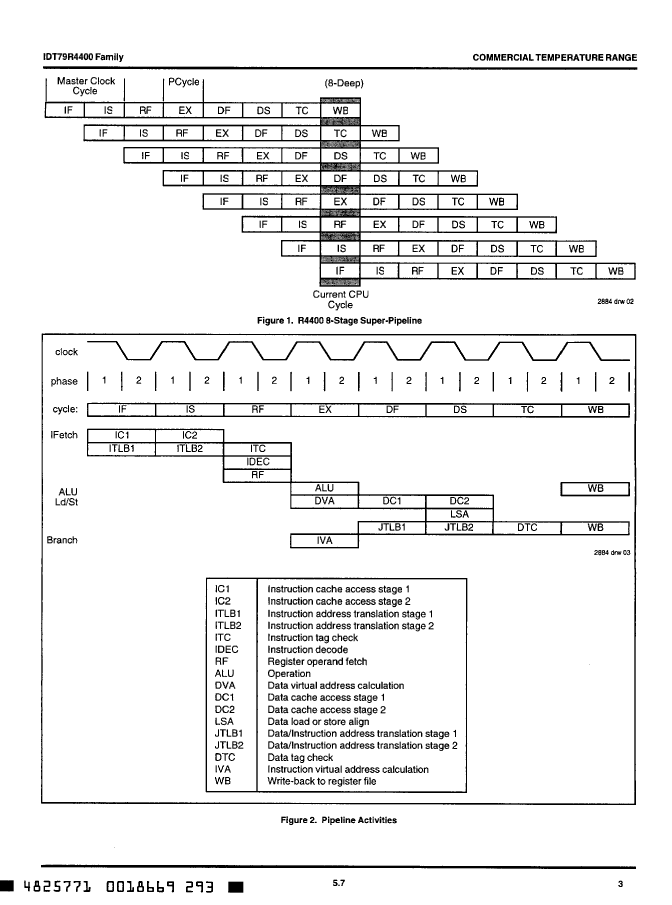

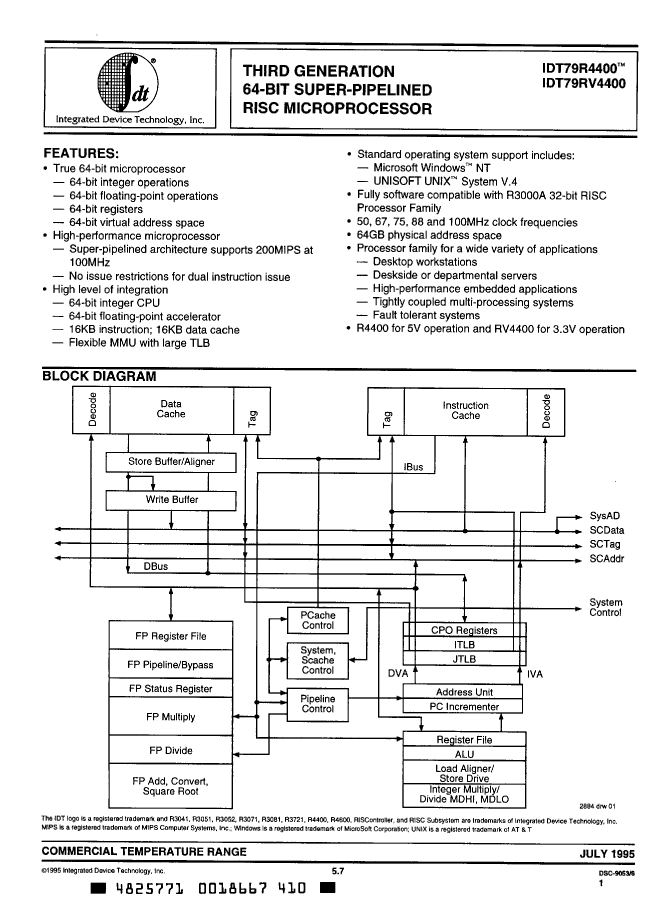

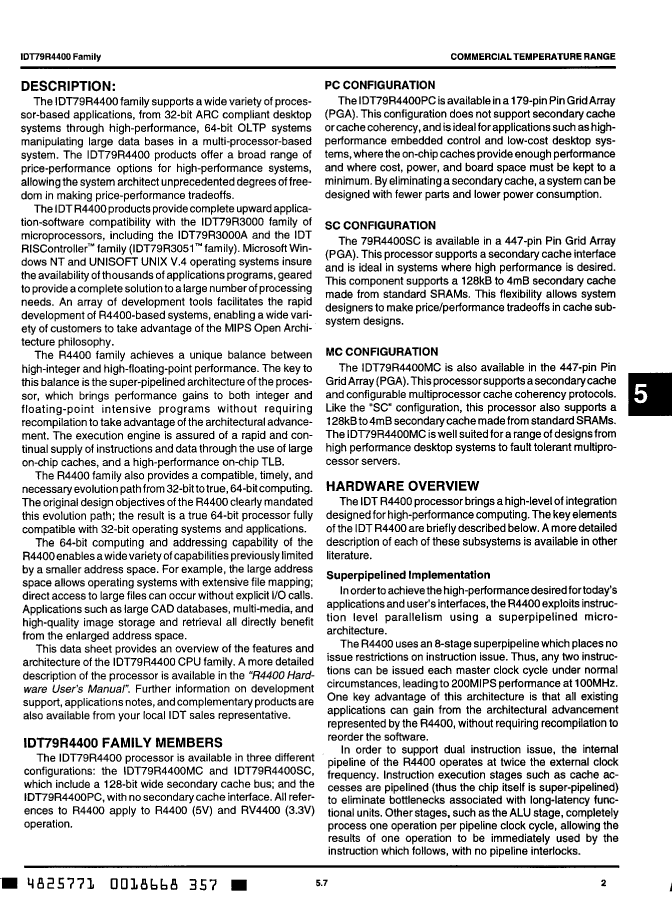

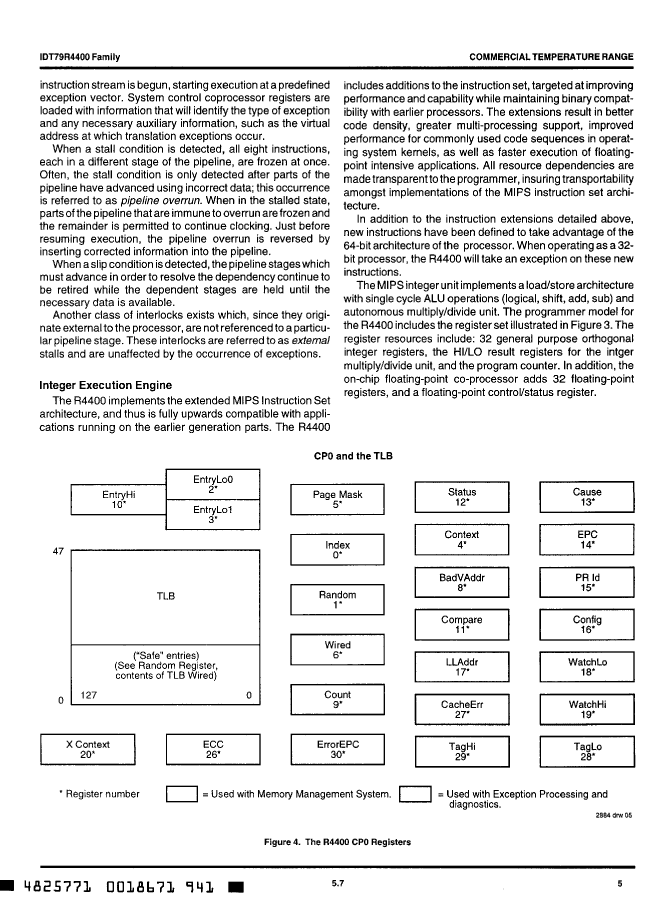

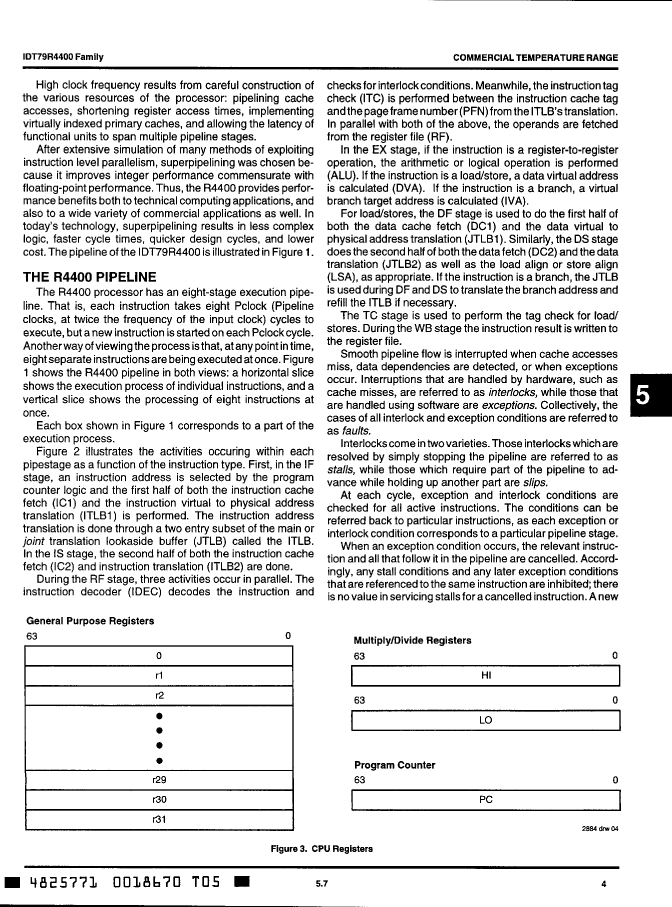

Preview

Download Datasheet

View All

79R4400PC-75G Related Products

	79R4400PC-75G	79R4400MC-50G447	79R4400PC-50G	79R4400PC-67G	79R4400SC-50G447	79R4400SC-75G447	79R4400SC-67G447
Description	RISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA447	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA179	RISC Microprocessor, 64-Bit, 67MHz, CMOS, CPGA179	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA447	RISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA447	RISC Microprocessor, 64-Bit, 67MHz, CMOS, CPGA447
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	PGA	PGA	PGA	PGA	PGA	PGA	PGA
package instruction	PGA, PGA179,18X18	PGA, SPGA447,39X39	PGA, PGA179,18X18	PGA, PGA179,18X18	PGA, SPGA447,39X39	PGA, SPGA447,39X39	PGA, SPGA447,39X39
Contacts	179	447	179	179	447	447	447
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
bit size	64	64	64	64	64	64	64
JESD-30 code	S-XPGA-P179	S-XPGA-P447	S-XPGA-P179	S-XPGA-P179	S-XPGA-P447	S-XPGA-P447	S-XPGA-P447
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of terminals	179	447	179	179	447	447	447
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	PGA	PGA	PGA	PGA	PGA	PGA
Encapsulate equivalent code	PGA179,18X18	SPGA447,39X39	PGA179,18X18	PGA179,18X18	SPGA447,39X39	SPGA447,39X39	SPGA447,39X39
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	75 MHz	50 MHz	50 MHz	67 MHz	50 MHz	75 MHz	67 MHz
Maximum slew rate	3600 mA	2800 mA	2800 mA	3200 mA	2800 mA	3600 mA	3200 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	30	30	30	30	30	30	30
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
