TAK CHEONG
®
SEM IC O N DU C TO R
Green Product
PNP Silicon Surface Mount Transistor
Absolute Maximum Ratings
(
T
A
= 25°C unless otherwise noted)
Symbol
V
CC
V
IN
I
O
I
CM
P
D
T
J
T
STG
Supply Voltage
Input Voltage
Output Current
Peak Collector Current
Power Dissipation
Junction to Ambient
Storage Temperature Range
Parameter
Value
-50
-40 ~ +10
-50
-100
150
150
-55 to +150
Units
V
V
mA
mA
mW
°C
°C
SOT-523 (SC-75A)
3
2
1
These ratings are limiting values above which the serviceability of the device may be impaired.
FEATURES:
Built-in resistors enable the configuration of a inverter circuit without
connecting external input resistors.
The bias resistors consist of thin-film resistors with complete isolation
to allow positive biasing of the input. They also have the advantage of
almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device
design easy.
RoHS Compliant
Green EMC
Matte Tin(Sn) Lead Finish
Weight: approx. 0.002g

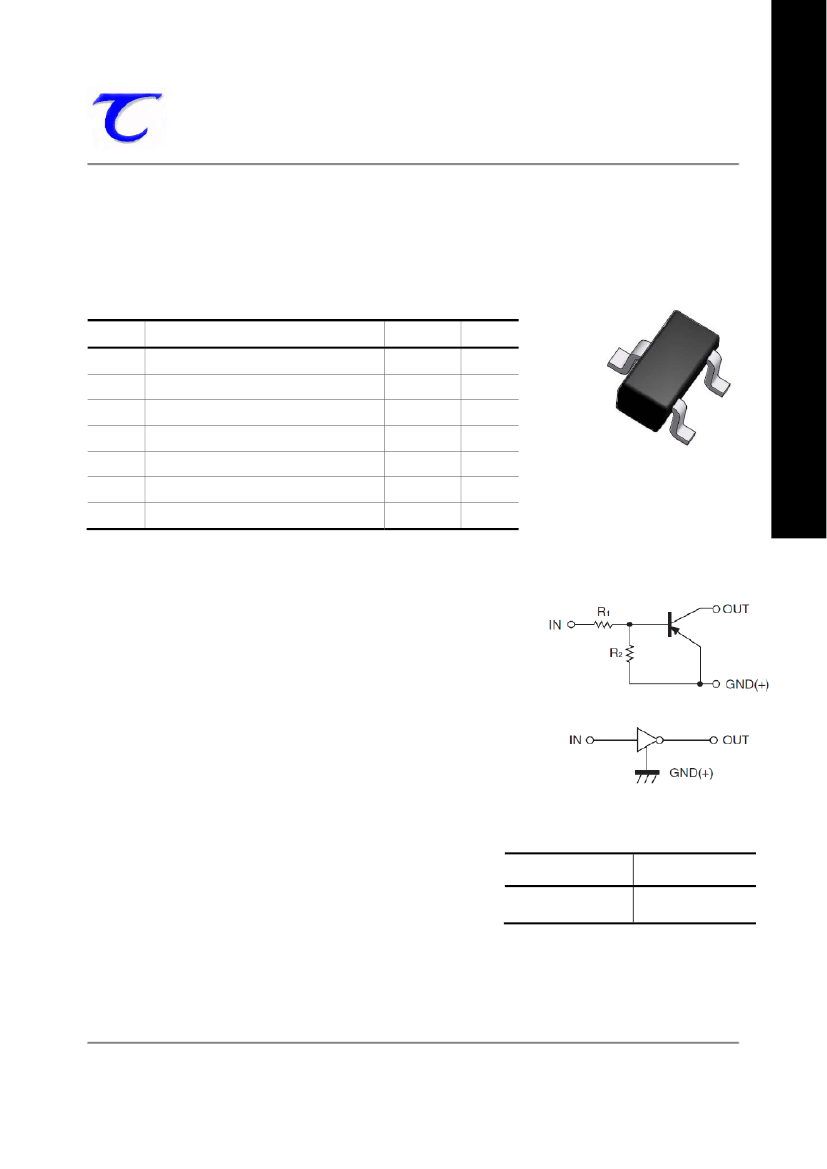

ELECTRICCAL SYMBOL:
DEVICE MARKING CODE:
Device Type
DTA124XE
Device Marking
35
DB Number: DB-263
Sept. 2014, Revsion A
Page 1
DTA124XE
SOT-523
Digital Transistor (Built-in Resistors)
TAK CHEONG
®
SEM IC O N DU C TO R
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
Parameter
Input Voltage
Output Voltage
Input Current
Output Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T
Test Condition
V
CC
= -5V, I
O
= -100uA
V
O
= -0.3V, I
O
=-2mA
I
O
/ I
I
= -10mA/-0.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -5V, I
O
= -5mA
Limits
Min
-0.4
-2.5
-0.1
-0.3
-0.36
-0.5
68
15.4
1.7
22
2.1
250
28.6
2.6
Typ
Max
Unit
V
V
V
mA
uA
KΩ
V
O
= -10V, I
O
= -5mA
f=100MHz
MHz

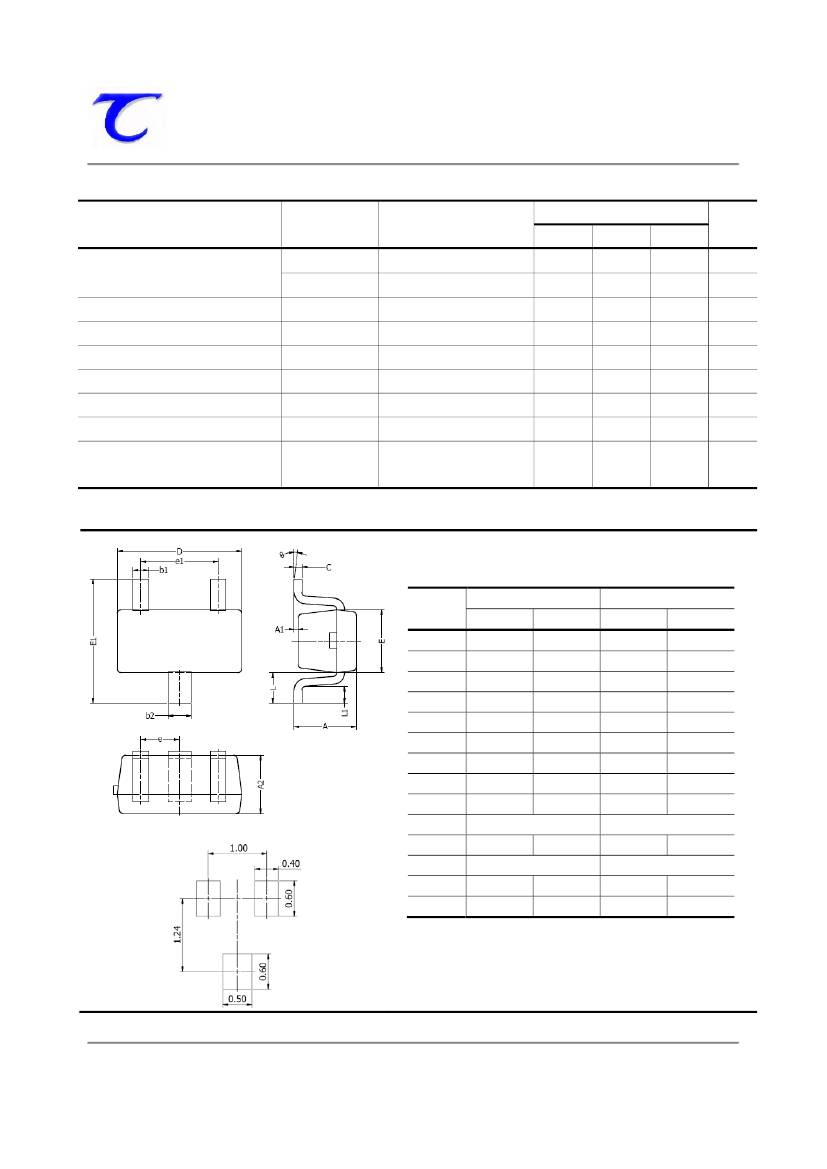

SOT-523 Package Outline
DIM
A
A1
A2
b1
b2
c
D
E
E1
e
Typical Soldering Pattern:
e1
L
L1
θ
MILLIMETERS
MIN
0.70
0.00
0.70
0.15
0.25
0.10
1.50
0.70
1.45
MAX
0.90
0.10
0.80
0.25
0.35
0.20
1.70
0.90
1.75
MIN
INCHES
MAX
0.035
0.004
0.031
0.010
0.014
0.008
0.067
0.035
0.069
0.028
0.000
0.028
0.006
0.010
0.004
0.059
0.028
0.057
0.50 TYP.
0.90
1.10
0.020 TYP.
0.035
0.043
0.40 REF.
0.10
0
O
0.016 REF.
0.004
0
O
0.30
8
O
0.012
8
O
NOTES:
1. Above package outline conforms to JEITA EAIJ ED-7500A SC-75A.
2. Dimensions are exclusive of Burrs, Mold Flash & Tie Bar extrusions.
DB Number: DB-263
Sept. 2014, Revsion A
Page 2
TAK CHEONG
®
DISC LA I MER NOTIC E
NOTICE
The information presented in this document is for reference only. Tak Cheong reserves the right to make
changes without notice for the specification of the products displayed herein.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not
designed to be used with equipment or devices which require high level of reliability and the malfunction of with
would directly endanger human life (such as medical instruments, transportation equipment, aerospace
machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Tak Cheong Semiconductor
Co., Ltd., or anyone on its behalf, assumes no responsibility or liability for any damagers resulting from such
improper use of sale.
This publication supersedes & replaces all information reviously supplied. For additional information, please visit
our website
http://www.takcheong.com,
or consult your nearest Tak Cheong’s sales office for further assistance.
Number: DB-100
April 14, 2008 / A
