JPJ8011-01-540

Description
Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack
CategoryThe connector    The connector
File Size72KB,1 Pages
ManufacturerHosiden Corporation
Download Datasheet Parametric View All

JPJ8011-01-540 Overview

Audio/RCA Connector, 3 Pole(s), Solid Lead Terminal, Jack

JPJ8011-01-540 Parametric

Parameter NameAttribute value
MakerHosiden Corporation
Reach Compliance Codeunknown
Body/casing typeJACK
Configuration2X1 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Installation typeBOARD
Number of poles3
Number of ports2
OptionsGENERAL PURPOSE
Termination typeSOLID LEAD
Horizontal Type Dual Pin Jacks Vertical Arrayal
Unit: mm

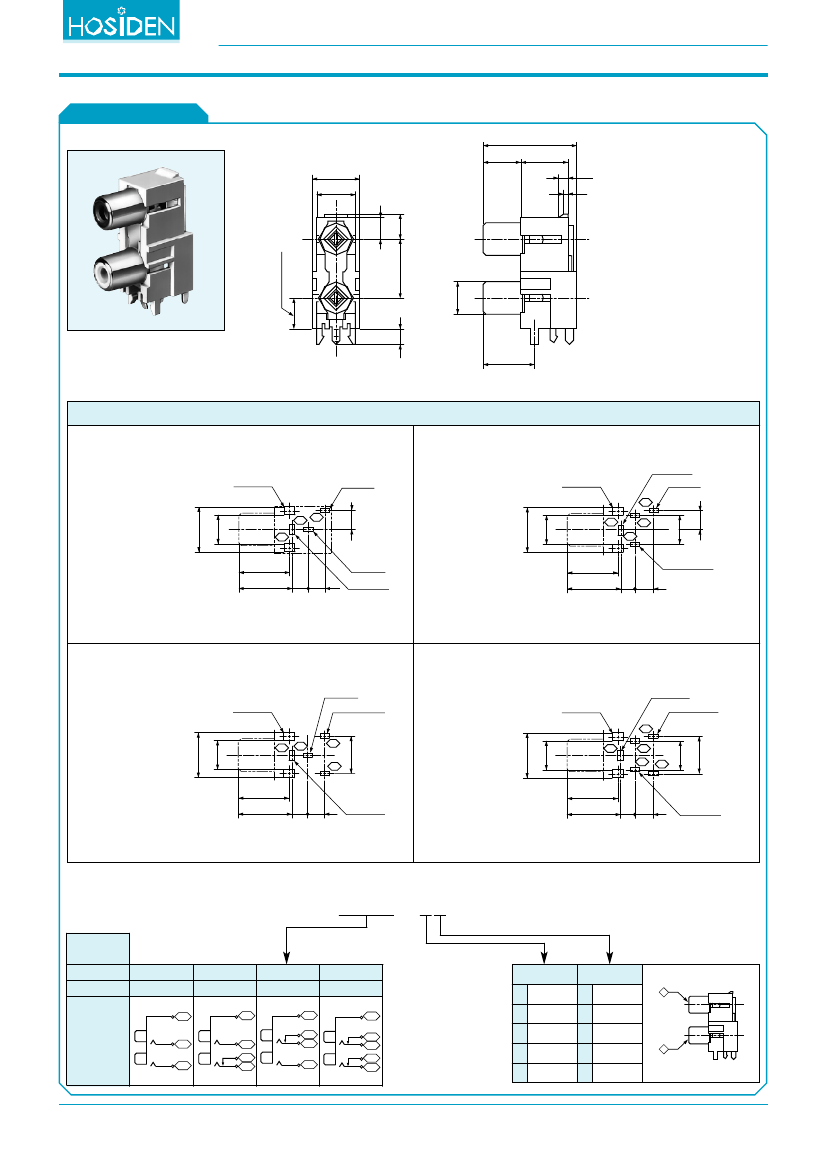

JPJ9711 Series
h
= 8 or 12.5 mm
9.5
12
10
6.5
23.5
12
2.5
1
h=8 or 12.5
5.5
15
JPJ9711
4
ø
8.3
13
Hole Layout (Bottom View)
2-2×2.4
2.4×1
4.8
L2 U2
L1
2-2×2.4
U2
1.3×2.4
2.4×1
JPJ9711
JPJ8011
JPJ9712
JPJ8012
2.2×1
11.4
11.4
7.4
7.4
L2
13
13.5
4.5 4
13
13.5
3.8 4.7
2-2.4×1.2
1.3×2.4
2-2×2.4
2.2×1
2-2.5×1.2
2-2×2.4
1.3×2.5
2-2.5×1.2
U3
JPJ9721
JPJ8021
11.4
11.4
9.9
7.4
7.4
U2
L2
U2
13
13.5
4.5 4
1.3×2.4
13
13.5
4 4.5
2-2.5×1
Model No. JPJ□□□□-01-□□0
Dimension
h
mm
8
12.5
9711
8011
L1
9712
8012
L1
U2
L3
L2
9721
8021
L1
U3
U2
L2
9722
8022
L1
U3
U2
L3
L2
Lower Pinjack Upper Pinjack
(Housing) Color
L
Color
U
1
2
3
4
5
Black
Red
White
Yellow
Blue
1
2
3
4
5
Black
Red
White
Yellow
Blue
U
Schematic
U2
L2
L
7.5
9.9
L1
L2
U3
JPJ9722
JPJ8022
L1
L3
7.5
L1
L3
4.8
