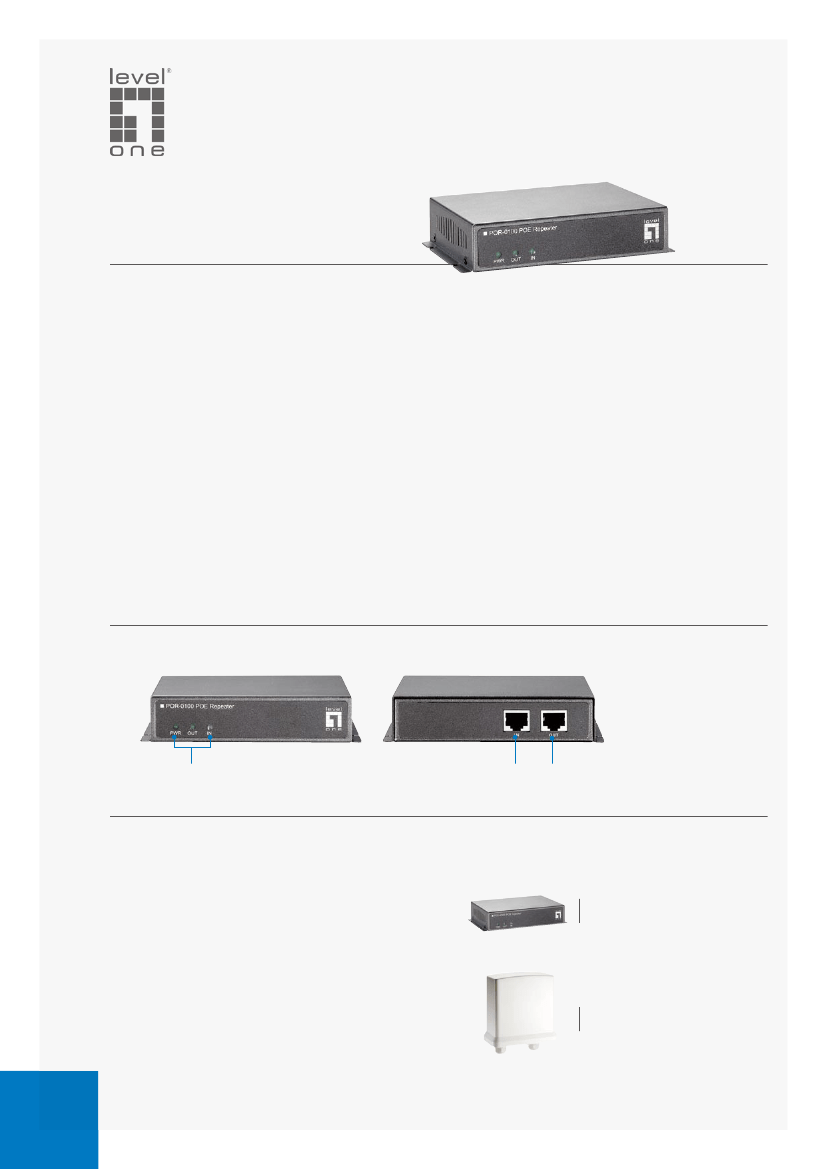

PoE Repeater
H/W Version: 1
Extend the reach of your PoE devices
For system integrators looking for a professional
solution to help extend their PoE network, POR-0100
is the perfect accessory to increase your Power over
Ethernet network performance. Normal cable runs
only reach 100 meters, but with POR-0100 installers
can extend the PoE network performance up to 200
meters!
Simple yet durable, no software required
As a PoE Repeater, POR-0100 receives all power from
the Power Sending Equipment (PSE), for example,
a PoE switch. This means that POR-0100 uses no
external power supply, making it the most flexible
option for system integrators looking for an easy,
affordable solution to increase the distance to the
attached devices. POR-0100 has 2 RJ-45 ports for easy
deployment, the “IN” port that accepts the power and
POR-0100
data for the first 100 meters, and the “OUT” port that
boosts and extends the power and data an additional
100 meters. With a durable metal housing, POR-0100
fits into any tight deployments.
Applications
POR-0100 works great for large IP surveillance
networks with many cameras deployed throughout
a building or campus. It is also an ideal solution for
outdoor access points that are located far from the
network control center.
POR-0100 can also work together with LevelOne’s
high-power PoE injector, POI-4000. This can extend
Ethernet connectivity an additional 100 meters for
high power PD devices, such as 18 W IP Cameras or
other devices that require power greater than 15.4 W.
1. LED Indicators
2. RJ-45 In
3. RJ-45 Out
1
2
3
Key Features
- Extends Cat.5 cable installations to beyond 100
meters
- Forwards Power over Ethernet (PoE) to remote
device
- No Power required
- Fully transparent-no restrictions to network traffic
- Simple to install-works instantly
Works Well With
POI-4000
High-power PoE Injector
POR-1100
Outdoor PoE Repeater
www.level1.com
I
one world_one brand_one level_
PoE PD/PSE
Technical Specification
LAN Interface:
IEEE 802.3x, Auto-Detection for 10/100BASE-T and full/half
duplex
Standard Straight-through, or Cross-over CAT 5 Cable
Automatic MDIX function
RJ-45 Connector x 2
LED Indicators:
POWER: Power is ON
LAN IN: Data Activity of LAN IN Port
LAN OUT: Data Activity of LAN OUT Port

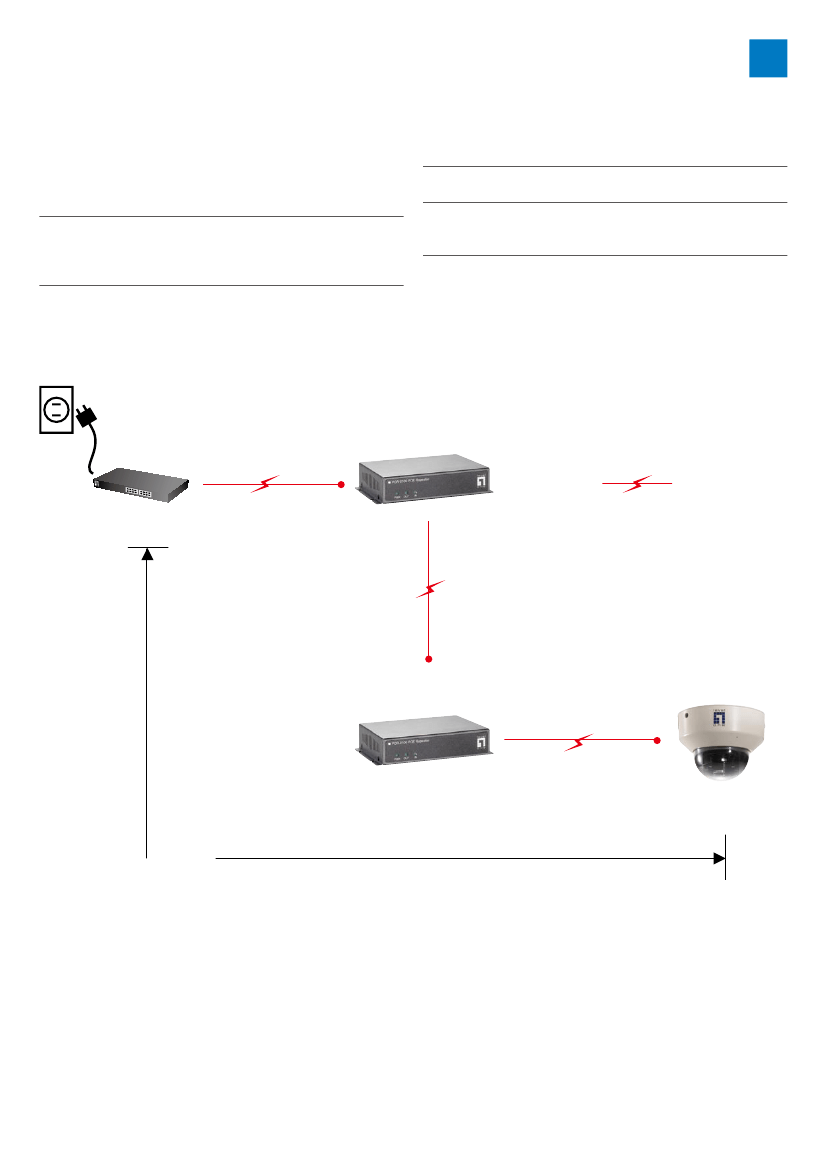

Product Diagram
Regulations & Approvals:
FCC Rules Part 15
CE
Physical Dimension: (L x W x H)
120mm x 90mm x 28mm
Operating Environment :
Humidity : 5% to 95% non-condensing
Temperature: 0~50°C
POR-0100
100m
PoE
Standard (15.4W)
100m
POR-0100
100m
PoE Device (4.3W max)
300m
Note: These distances are typical results when used with18~19Ω 24AWG Cat5 Cable.
Order Information
Package Contents
POR-0100:
PoE Repeater
POR-0100 x 1
QIG x 1
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright Digital Data Communications GmbH. All Rights Reserved.
V1.0
