GMC-8-R: DescriptionElectric Fuse, Medium Time Delay Blow, 8A, 125VAC, 200A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size51KB，1 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

GMC-8-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GMC-8-R	-	-	View	Buy Now

GMC-8-R Overview

Electric Fuse, Medium Time Delay Blow, 8A, 125VAC, 200A (IR), Inline/holder, ROHS COMPLIANT

GMC-8-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Fusing characteristics	MEDIUM TIME DELAY
body height	20 mm
Body length or diameter	5 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	GMC
Installation features	INLINE/HOLDER
physical size	5mm x 20mm
Rated breaking capacity	200 A
Rated current	8 A
Rated voltage (AC)	125 V
Guideline	UL
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP

Preview

Download Datasheet

View All

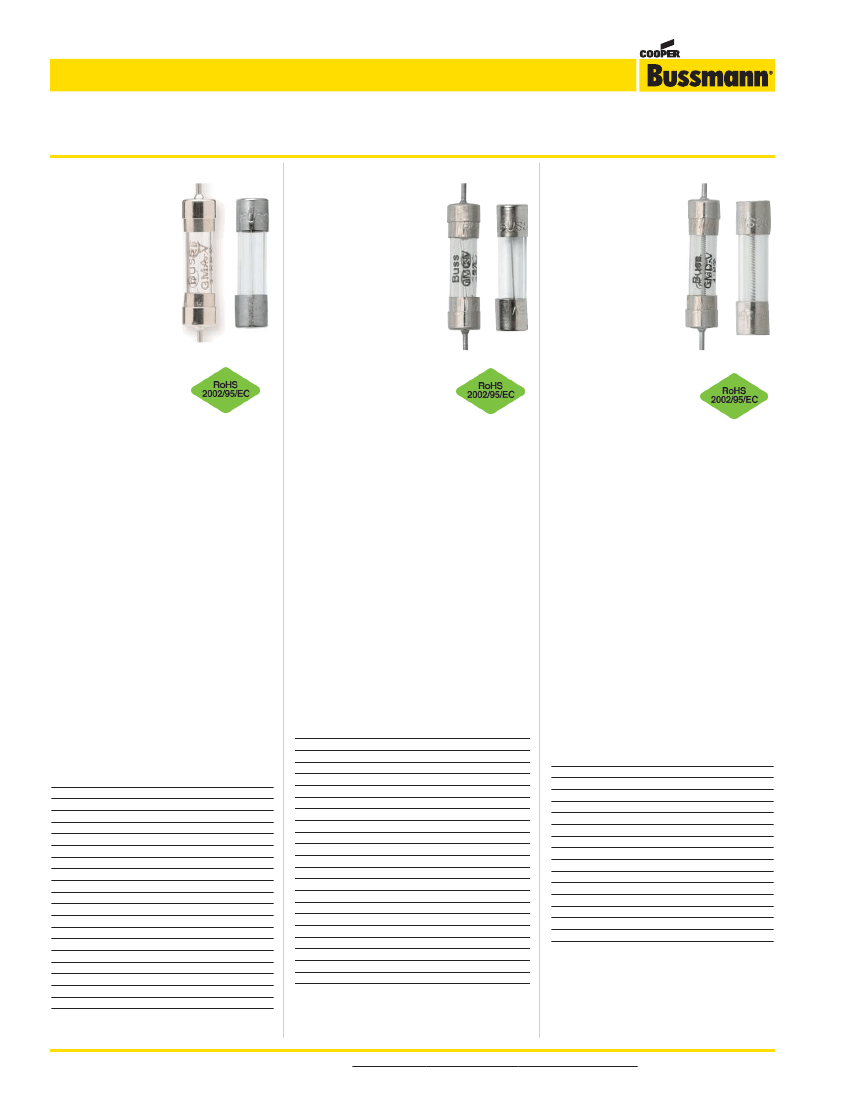

Electronic — PCB & Small Dimension Fuses

5 x 20mm North American (UL) ferrule fuses

GMA-V (axial leads)

GMA

Specifications

Description:

Fast-acting fuse.

Construction:

Glass tube,

nickel-plated brass

endcaps.

Ratings:

Volts — 250Vac (63mA-

2.5A)

— 125Vac

(3.15-15A)

Amps — 63mA-15A

IR — 35A (63mA- 1A @ 250Vac,

p.f. = 0.7-0.8)

— 10kA (63mA-6A @ 125Vac,

p.f. = 0.7-0.8)

— 100A (1.25-2.5A @ 250Vac,

p.f. = 0.7-0.8)

— 200A (7-8A @ 125Vac, p.f. = 1.0)

— 150A (10-15A @ 125Vac,

p.f. = 1.0)

Agency Information:

CE, Std.

248-14 UL Listed Guide JDYX, File

E19180, 0-6A, UL Recognized, Guide

JDYX2, File E19180, 7-15A, CSA

Certified, Class 1422-01,

File E65063, 0-6.

Features and Benefits

• Fast-acting for maximum protection.

Typical Applications

• Electronic Circuits

Catalog Numbers (Amps)

With Axial Leads

GMA-V-63-R

GMA-V-800-R

GMA-V-100-R

GMA-V-1-R

GMA-V-125-R

GMA-V-1.25-R

GMA-V-200-R

GMA-V-1.5-R

GMA-V-250-R

GMA-V-1.6-R

GMA-V-300-R

GMA-V-2-R

GMA-V-500-R

GMA-V-2.5-R

GMA-V-600-R

GMA-V-3.15-R

GMA-V-750-R

GMA-V-3.5-R

Without Axial Leads

GMA-63-R

GMA-800-R

GMA-100-R

GMA-1-R

GMA-125-R

GMA-1.25-R

GMA-200-R

GMA-1.5-R

GMA-250-R

GMA-1.6-R

GMA-300-R

GMA-2-R

GMA-500-R

GMA-2.5-R

GMA-600-R

GMA-3.15-R

GMA-750-R

GMA-3.5-R

GMA-V-4-R

GMA-V-5-R

GMA-V-6-R

GMA-V-7-R

GMA-V-8-R

GMA-V-10-R

GMA-V-15-R

GMC-V (axial leads)

GMC

GMC-10A

GMD-V (axial leads)

GMD

Specifications

Description:

Medium

time-delay fuse.

Construction:

Glass

tube, nickel-plated brass

endcaps.

Ratings:

Volts — 250Vac (63mA-

3.15A)

— 125Vac (3.5-10A)

Amps — 63mA-10A

IR — 35A (63mA- 1A

@ 250Vac, p.f. =

0.7-0.8)

— 10kA (63mA-6A @ 125Vac, p.f.

= 0.7-0.8)

— 100A (1.25-3.15A @ 250Vac,

p.f. = 0.7-0.8)

— 200A (6.3-10A @ 125Vac, p.f.

= 1.0)

Agency Information:

CE, Std. 248-14,

UL Listed Guide JDYX, File E19180, 0-

6.3A, UL Recognized, Guide JDYX2,

File E19180, 7-8A, CSA Certified, Class

1422-01, File 65063, 0-6.3A.

Features and Benefits

• Conforming to UL standards.

Typical Applications

• Electronic Circuits

Catalog Numbers (Amps)

With Axial Leads

GMC-V-63-R

GMC-V-500-R

GMC-V-80-R

GMC-V-600-R

GMC-V-100-R

GMC-V-630-R

GMC-V-125-R

GMC-V-750-R

GMC-V-150-R

GMC-V-800-R

GMC-V-200-R

GMC-V-1-R

GMC-V-250-R

GMC-V-1.25-R

GMC-V-300-R

GMC-V-1.5-R

GMC-V-315-R

GMC-V-1.6-R

GMC-V-400-R

GMC-V-2-R

Without Axial Leads

GMC-63mA

GMC-500-R

GMC-80mA

GMC-600-R

GMC-100mA

GMC-630-R

GMC-125mA

GMC-750-R

GMC-150mA

GMC-800-R

GMC-200mA

GMC-1-R

GMC-250mA

GMC-1.25-R

GMC-300mA

GMC-1.5-R

GMC-315mA

GMC-1.6-R

GMC-400mA

GMC-2-R

GMC-V-2.5

GMC-V-3.15

GMC-V-3.5

GMC-V-4

GMC-V-5

GMC-V-6

GMC-V-6.3

GMC-V-7

GMC-V-8

GMC-V-10

GMC-2.5-R

GMC-3.15-R

GMC-3.5-R

GMC-4-R

GMC-5-R

GMC-6-R

GMC-6.3-R

GMC-7-R

GMC-8-R

GMC-10-R

Specifications

Description:

Time-

delay fuse.

Construction:

Glass tube, nickel-

plated brass end-

caps.

Ratings:

Volts — 250Vac

Amps — 125mA-4A

IR — 10kA (125mA-

3A @ 125Vac,

p.f. = 0.7-0.8)

— 10kA (4A @ 125Vac, p.f. =

1.0)

— 100A (125mA-3.A @

250Vac, p.f. = 0.7-0.8)

— 200A (4A @ 250Vac, p.f. =

1.0)

Agency Information:

CE, Std. 248-

14, UL Listed Guide JDYX, File

E19180, 0-3A, UL Recognized, Guide

JDYX2, File E19180, 4A, CSA

Certified, Class 1422-01, File 65063,

0-3A.

Features and Benefits

• Time-delay compatibility for inductive

circuits.

• Conforming to UL standards.

Typical Applications

• Electronic Circuits

Catalog Numbers (Amps)

With Axial Leads

GMD-V-125-R

GMD-V-500-R

GMD-V-150-R

GMD-V-630-R

GMD-V-200-R

GMD-V-750-R

GMD-V-250-R

GMD-V-800-R

GMD-V-300-R

GMD-V-1-R

GMD-V-315-R

GMD-V-1.2-R

GMD-V-400-R

GMD-V-1.25-R

Without Axial Leads

GMD-125-R

GMD-500-R

GMD-150-R

GMD-630-R

GMD-200-R

GMD-750-R

GMD-250-R

GMD-800-R

GMD-300-R

GMD-1-R

GMD-315-R

GMD-1.2-R

GMD-400-R

GMD-1.25-R

GMD-V-1.5-R

GMD-V-1.6-R

GMD-V-2-R

GMD-V-2.5-R

GMD-V-3-R

GMD-V-4-R

GMA-4-R

GMA-5-R

GMA-6-R

GMA-7-R

GMA-8-R

GMA-10-R

GMA-15-R

GMD-1.5-R

GMD-1.6-R

GMD-2-R

GMD-2.5-R

GMD-3-R

GMD-4-R

Data Sheet: 2017

Data Sheet: 2018

Data Sheet:2019

56

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
