CO46025-FREQ-EXT-T-TR-OUT23 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO46025-FREQ-EXT-T-TR-OUT23

CO46025-FREQ-EXT-T-TR-OUT23: DescriptionCMOS/TTL Output Clock Oscillator, 50MHz Min, 125MHz Max; CategoryPassive components oscillator; File Size39KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO46025-FREQ-EXT-T-TR-OUT23 Overview

CMOS/TTL Output Clock Oscillator, 50MHz Min, 125MHz Max

CO46025-FREQ-EXT-T-TR-OUT23 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	CO46
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	5 TTL, 15 pF
physical size	7.5mm x 5mm x 1.8mm
longest rise time	3 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

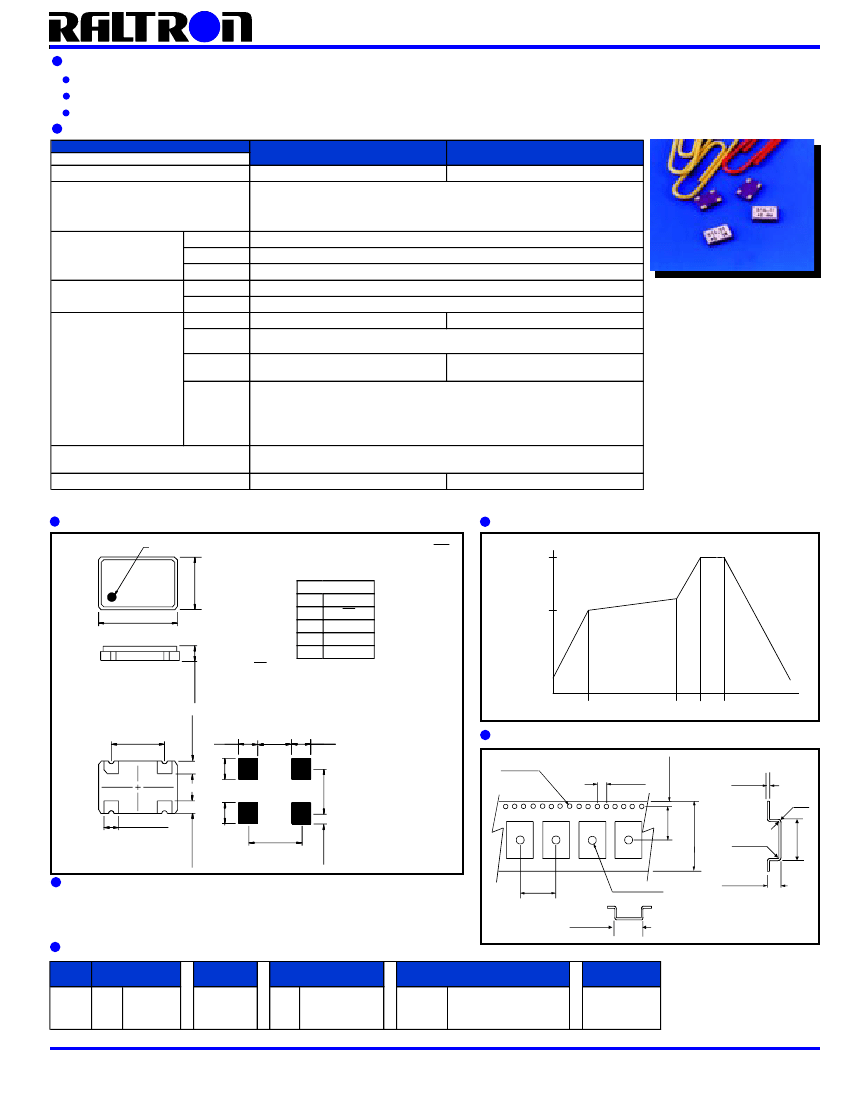

SURFACE MOUNT CLOCK OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE

EXCELLENT FOR HIGH DENSITY PACKAGING

SUITABLE FOR WAVE SOLDERING

SPECIFICATIONS

SERIES

PARAMETER

FREQUENCY RANGE

CO43

1.544 MHz TO 50.00 MHz

±100 PPM

±50 PPM

±25 PPM *

±20 PPM *

-10 C TO +70 C

-40 C TO +85 C

-55 C TO +125 C

+3.3 VDC ±10%

25 mA MAX

5 TTL MAX OR 20 pF CMOS

5 TTL MAX OR 15 pF CMOS

NORMAL: 40% TO 60%

TIGHT: 45% TO 55%

LOGIC "0": 0.4 VDC MAX

LOGIC "0": 0.5 VDC MAX

LOGIC "1": 2.8 VDC MIN

1.00 MHz TO 10.00 MHz: 5 ns

10.10 MHz TO 30.00 MHz: 4 ns

30.10 MHz TO 50.00 MHz: 3 ns

50.10 MHz TO 80.00 MHz: 2.5 ns

80.10 MHz TO 125.00 MHz: 2 ns

PIN 1: HIGH (+2.2 VDC MIN) PIN 3: ENABLED

PIN 1: LOW (+0.8 VDC MAX) PIN 3: DISABLED (HIGH IMPEDANCE)

10 ms MAX

15 ms MAX

SERIES CO43 AND 46

CO46

50.00 MHz TO 125.00 MHz

FREQUENCY STABILITY

OPERATING

TEMPERATURE RANGE

EXTENDED

STORAGE

INPUT

VOLTAGE

CURRENT

LOAD

SYMMETRY

LEVEL

OUTPUT

RISE/FALL

TIME

(20% to 80% )

ENABLE/DISABLE

FUNCTION

START-UP TIME

† INCLUSIVE OF 25°C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES, AGING, SHOCK AND VIBRATION

* CONSULT RALTRON FOR SPECIFICATIONS

OUTLINE DRAWING

P IN 1 LO C AT IO N

.197 ± 0.008

5.0 ± 0.2

Scale none Dimension in

inch

REFLOW SOLDERING PROFILE

240 C

REFLOW

CO43/46 SERIES

FUNCTION

INH

GROUND

OUTPUT

VDD

TEMPERATURE

M A R K IN G

AREA

7.5 M A X

0.295 M A X

PREHEATING

150 C

COOLING

1.8 M A X

.070 M A X

INH: HI OR OPEN-Fout LOW-OSCILLATION STOPS

25 C

100 s TYPICAL

10 s

TIME (SECONDS)

S O LD E R N PAT TE R N

.043 ± .005

1.1 ± 0.12

5.08 ± 0.12

.200 ± .005

1.8

.071

.082

2.1

3.28

.129

1.8

.071

CARRIER TAPE DIMENSIONS

1.5 ± 0.1

.059 ± .004

4.0 ± 0.1

.157 ± .004

1.75 ± 0 .1

.069 ± .004

0.3±.06

.012 ± .002

R 0 .3

R .012

.630 ± .012

7.65 ±0.1

.301 ± .004

.082

1.1 ± 0.12

.043 ± .005

5.08

.200

1.05 T Y P

.041 T Y P

1.4 ± 0.12

.055 ± .005

.295 ± .004

16.0 ± 0 .3

2.1

7.5 ± 0.1

4.2

.165

5 MAX

.2 M A X

PACKAGING

254 mm REEL DIAMETER, 16mm TAPE WIDTH, 8mm PITCH

QUANTITY: 1000 PIECES PER REEL

PART NUMBERING SYSTEM

SERIES

CO43

CO46

FREQUENCY

STABILITY

025

±100 PPM

±50 PPM

±25 PPM

±20 PPM

IN MHz

FREQUENCY

EXT

EXTENDED

TEMPERATURE

EXTENDED

(-40 C TO +85 C)

TIGHT

SYMMETRY

8.0±0.1

.315 ± .004

5.75 ± 0.1

0.22 6±.004

2.0 ± 0.1 D IA

.078 ± .004 D IA

2.2 ± 0.1

.086 ± .004

TAPE AND REEL

TIGHT SYMMETRY (45-55%)

EXAMPLE: CO4305-32.000-TR, CO4610-50.000-T-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
