MP2-P120E-51M1-TG datasheet, PDF

Datasheet> All Categories > The connector> The connector> MP2-P120E-51M1-TG

MP2-P120E-51M1-TG: Description120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size2MB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

MP2-P120E-51M1-TG Overview

120 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

MP2-P120E-51M1-TG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	3M
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	3M, METPAK, STACKED,LOW PROFILE
body width	0.859 inch
subject depth	1.014 inch
body length	1.888 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	MP2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

™

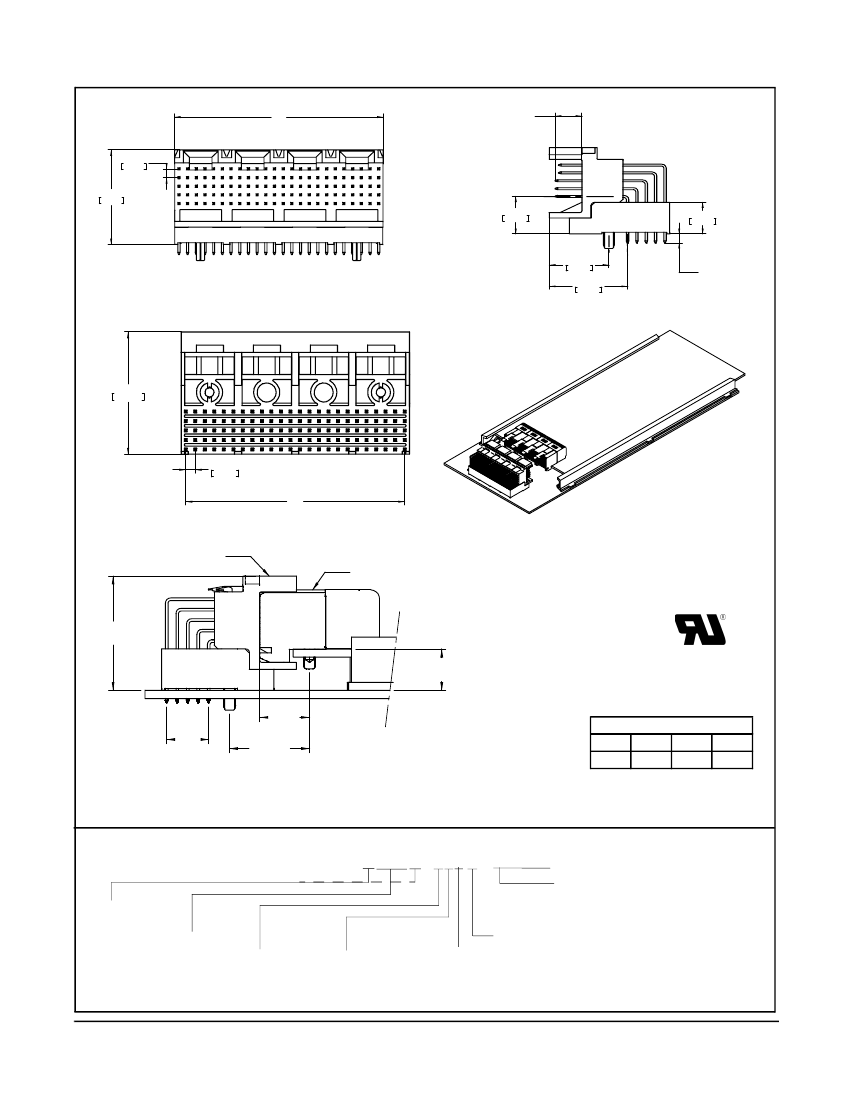

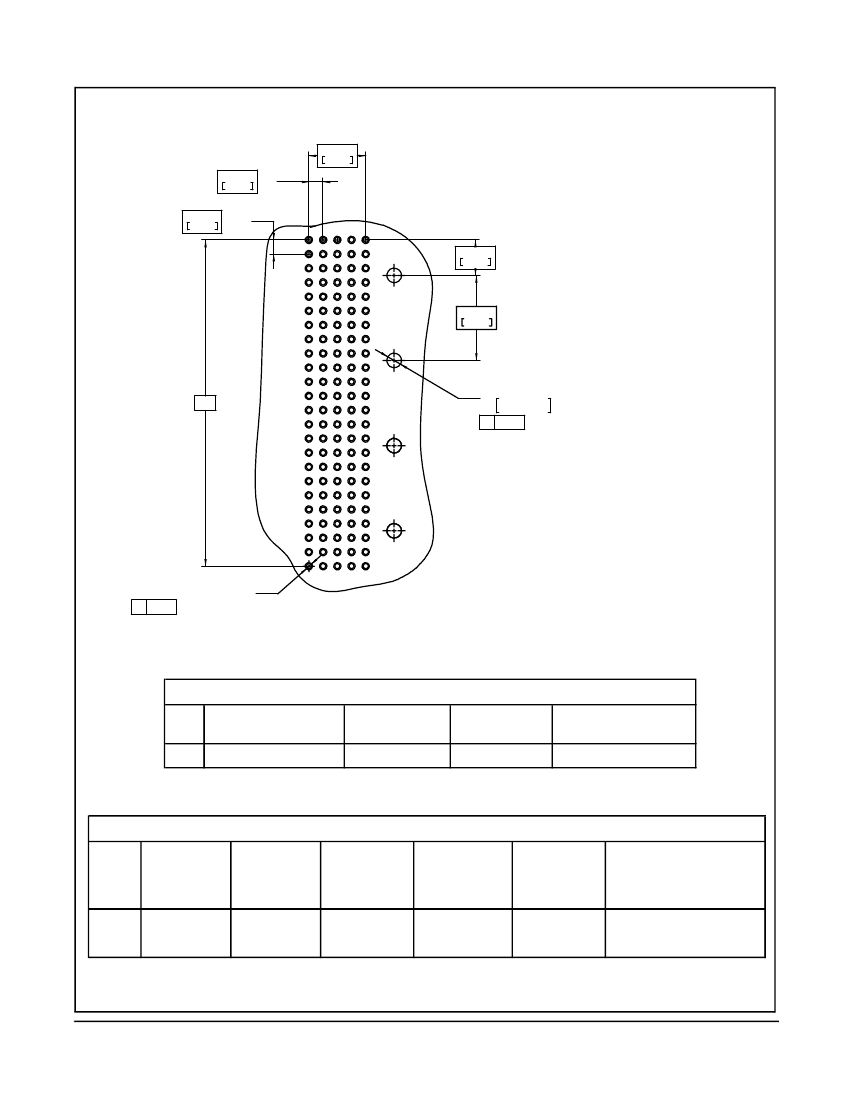

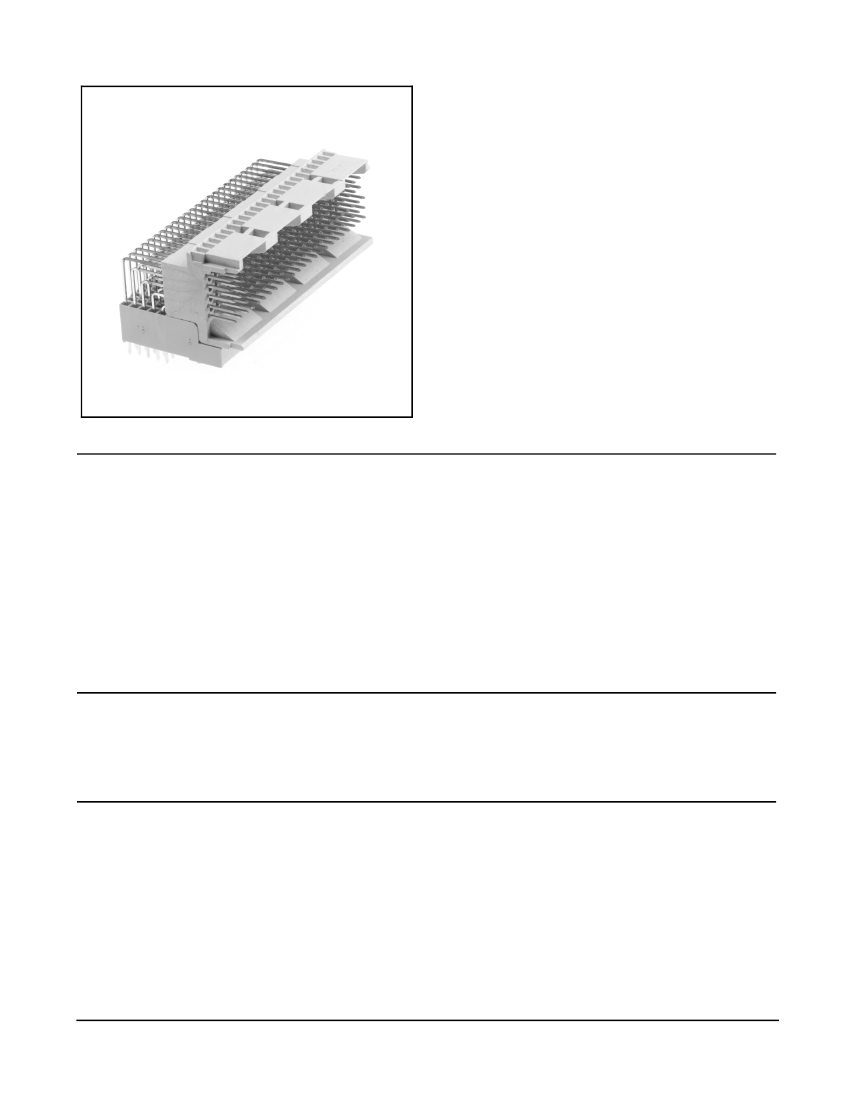

MetPak

™

2-FB Inverse Header

2 mm 5-Row, Right Angle, Elevated, Solder Tail

MP2 Series

• Elevated connector for offset coplanar/end-to-end

stacking

• Ideal for low profile IU boxes

• Ideal for "pizza box" applications

• Ideal for hot swapping applications

• 16 mm to 18.5 mm high profile stacking

• Mates with MP2-SXXXG sockets

• Prevents removing top cover in rack applications

• Footprint compatible with standard Futurebus+®

• See Regulatory Information Appendix (RIA)

for chemical compliance information

Date Modified: March 29, 2007

TS-1124-04

Sheet 1 of 4

Physical

Insulation

Material: High Temp LCP

Flammability: UL 94V-0

Color: Beige

Contact

Material: Copper Alloy

Plating

Underplating: 50

μ"

(1.27

μm)

Nickel

Wiping Area: See Ordering Information

Solder Tails: See Ordering Information

Electrical

Current Rating:

Signal: 1.5 A - All contacts simultaneously

Insulation Resistance:

MΩ

Withstanding Voltage:

1000 V

Environmental

-55°C to +125°C

Process Temperature Rating:

260°C (Profile per J-STD-020C)

Moisture Sensitivity Level:

1 (per J-STD-020C)

Temperature Rating:

UL File No: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

MetPak is a trademark of 3M Company.

Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
