2SB688_15: DescriptionSilicon PNP Power Transistors; File Size94KB，4 Pages; ManufacturerQuanzhou Jinmei Electronic Co.,Ltd.; Websitehttp://www.jmnic.com/

Download Datasheet View All

2SB688_15 Overview

Silicon PNP Power Transistors

Preview

Download Datasheet

View All

JMnic

Product Specification

Silicon PNP Power Transistors

2SB688

DESCRIPTION

・With

TO-3P(I) package

・Complement

to type 2SD718

APPLICATIONS

・Power

amplifier applications

・Recommend

for 45~50W audio frequency

amplifier output stage

PINNING

Emitter

Collector;connected to

mounting base

Base

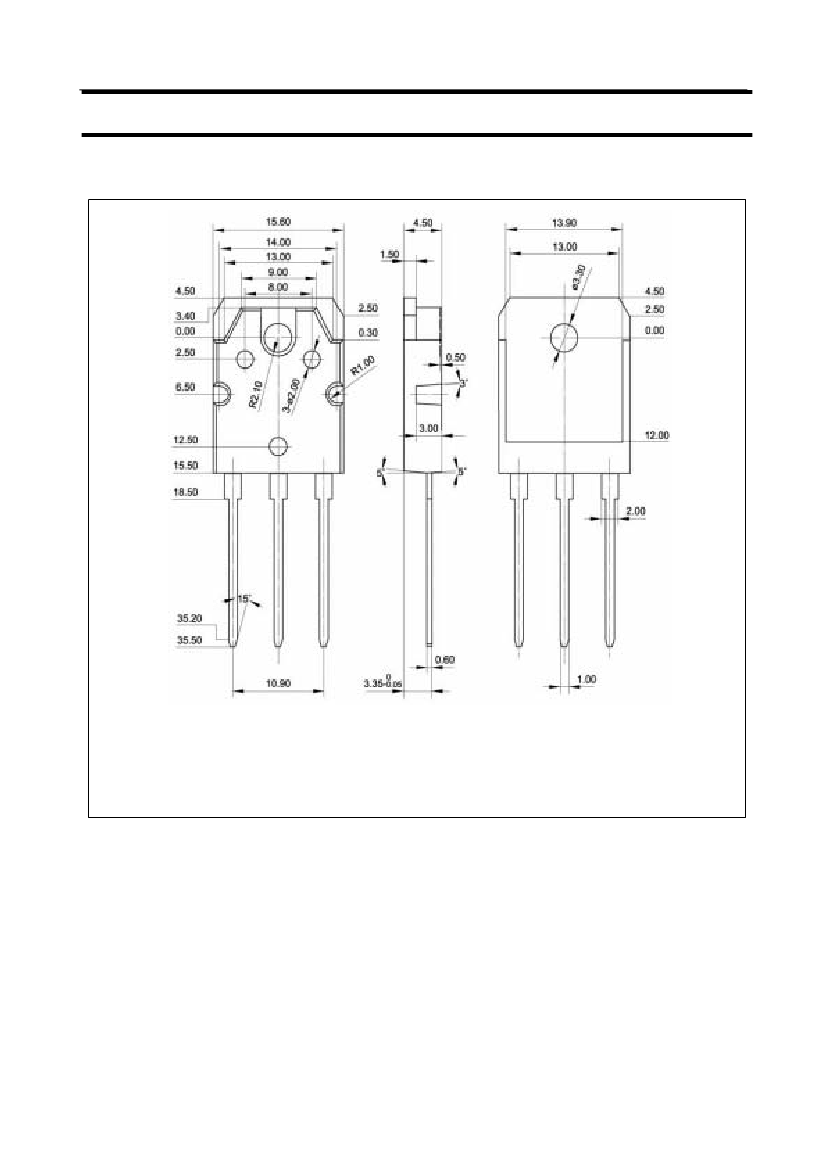

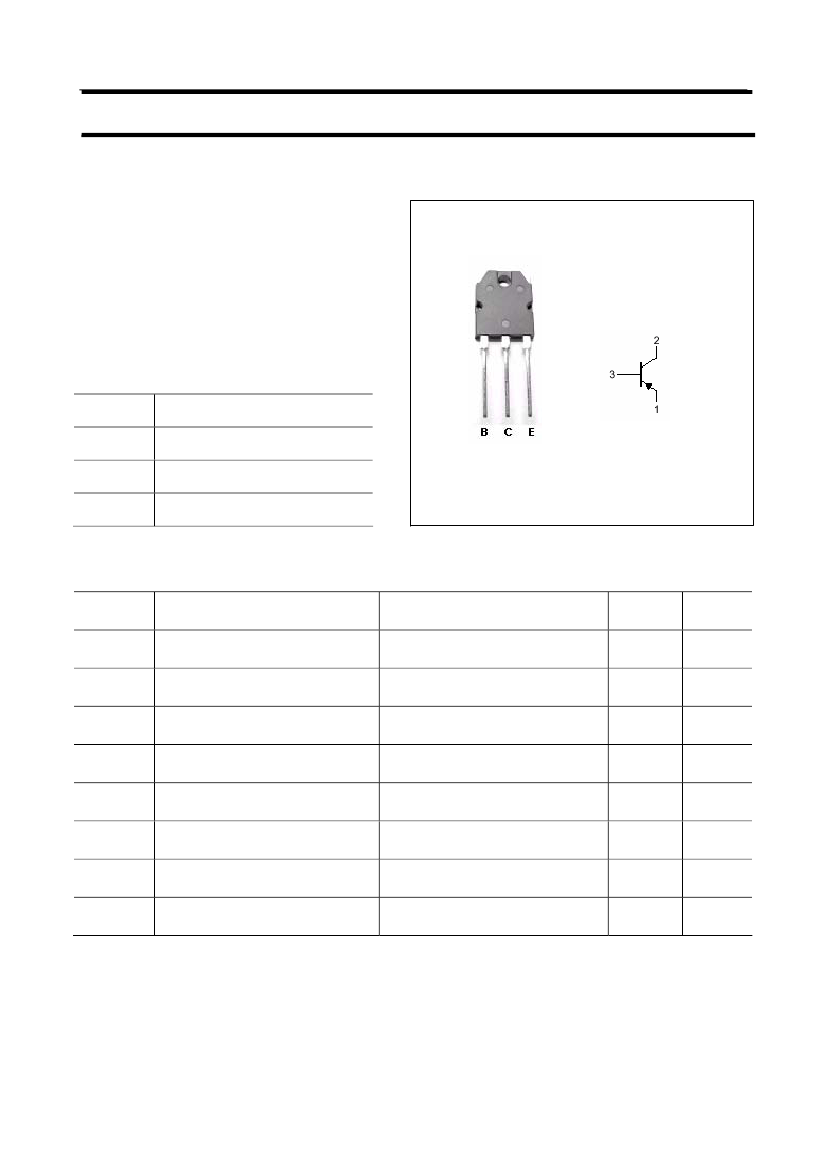

Fig.1 simplified outline (TO-3P(I)) and symbol

DESCRIPTION

Absolute maximum ratings(Ta=25

℃)

SYMBOL

CBO

CEO

EBO

stg

PARAMETER

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Base current

Total power dissipation

Junction temperature

Storage temperature

=25℃

CONDITIONS

Open emitter

Open base

Open collector

VALUE

-120

-5

-8

-0.8

150

-55~150

UNIT

℃
