CD-T-0936 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> CD-T-0936

CD-T-0936: DescriptionInverter Transformer, 3.5W; CategoryPower management transformer; File Size168KB，1 Pages; ManufacturerFDK AMERICA; Environmental Compliance

Download Datasheet Parametric View All

CD-T-0936 Overview

Inverter Transformer, 3.5W

CD-T-0936 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FDK AMERICA
Reach Compliance Code	unknown
ECCN code	EAR99
high	3.8 mm
length	36.5 mm
Manufacturer's serial number	CD-T-0936
Installation features	SURFACE MOUNT
Maximum operating frequency	200 kHz
Minimum operating frequency	50 kHz
Output voltage 1	2000 V
method of packing	TRAY
physical size	36.5mm X 9.5mm X 3.8mm
rated power	3.5 W
surface mount	YES
Transformer type	INVERTER TRANSFORMER
width	9.5 mm

Preview

Download Datasheet

View All

CD-LDE023-0312

T-0936

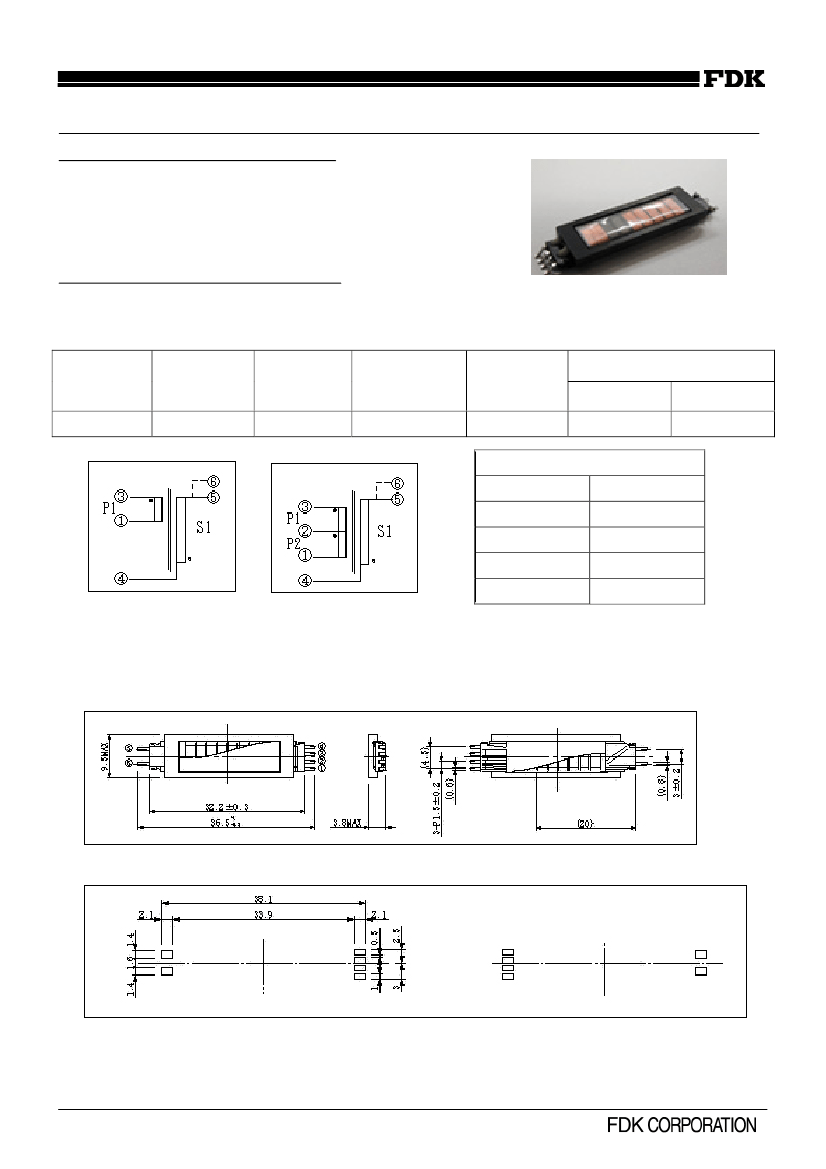

Features

SMT9mm-width type

(Separate excitation IC drive feasibility)

・Compact

high-output transformer with a small width and height(3.8 mm high.)

enabled by a low- loss ferrite and new-shaped core.

Suitable for slim and flat inverter designs.

・Reflow

soldering feasibility. (Lead free correspondenceis possible)

・The

Automatic mounting correspondenceis on a tray is possible

・Outstanding

efficiency possible by using separate excitation IC

Applications

・

Slim notebook PCs with a large display (up to 14)

・

PDA

・Portabl

DVD players equipped with an LCD

Electrical characteristics

Part No.

Max.output

(w)

CD-T-0936

2.5(3.5W)

<*1>

Frequency

(KHz)

50½200

Maxi. output

voltage

(Vo-p）

2000

<*2>

Output

Open voltage

(Vo-p)

2400

<*3>

Withstand voltage

(AC60Hz)(Vrms）

Between 1

Between 2

windings

Winding& core

500

Connection diagram

(typical example)

GPA(4ltem)vs.AL

GPA(mm)

NON

0.075

0.10

0.15

AL(Nh/N2)

Notes

The T-0936 is not usable in a floating type circuit.

Be sure to ground the No.4 pin of the secondary winding.

Customized specifications are available according to input-output characteristics.*1: The maximum output (up to 3.5W)

And efficiency depend on operating conditions. *2: The maximum output voltage varies according to winding specifications.

*3: The output open voltage within 3 seconds varies according to winding specifications.

Shapes and dimensions

Recommended landing pattern and drop dimensions

The specification is foresight and changes occasionally

http://www.fdk.co.jp
