1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 4.3 - 5.2 mm
Performance
Configuration
Insulator
Rated Current
0B.302 : 2 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
10 Amps
Specifications
Max. Matings: 1000
ThC. Materials (P+/N-): Chromel / Alumel
Thermocouple (P+/N-): Pin 1 / Pin 2
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact LEMO for
Note: Contact LEMO for performance details.
Vtest (contact-shell): 900 V (AC), 1270 V (DC)
Others
Endurance (Shell): 5000
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

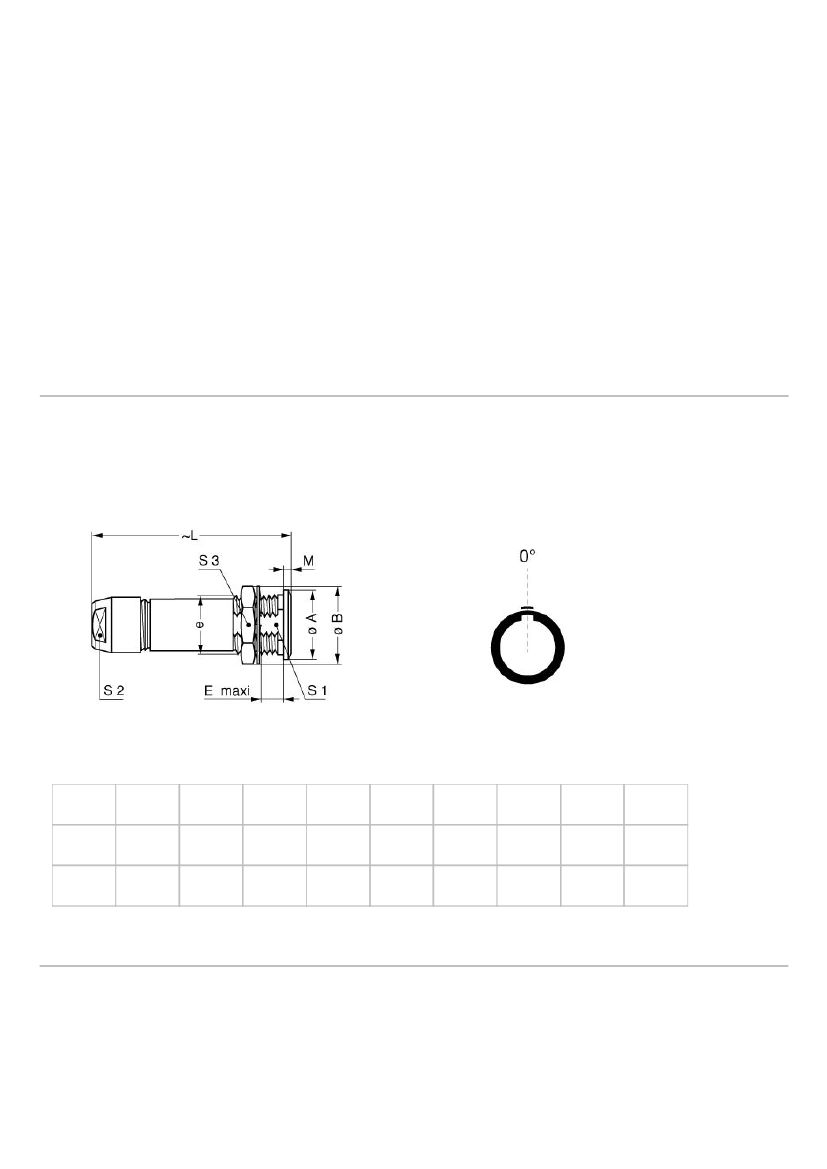

DRAWINGS
Draws
Dimensions
A
mm.
in.
10
0,39
B
12.4
0,49
E
7
0,28
L
35.5
1,40
M
1.2
0,05
S1
8.2
0,32
S2
7
0,28
S3
11
0,43
e
M9x0.6
RECOMMENDED BY LEMO
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Tools
Crimp settings: AWG/Selector = 20-22-24/6-5-5
Replacement contact: EGG.0B.660.ZZM
Spanner wrench: DCD.0B.005.PA070
Cables
120 222
