85968-206 datasheet, PDF - EEWORLD Datasheet

85968-206: DescriptionBoard Connector, 8 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

85968-206 Overview

Board Connector, 8 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.52 inch
subject depth	0.576 inch
body length	0.47 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	45 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.5012 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85968
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	79u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.30024 N

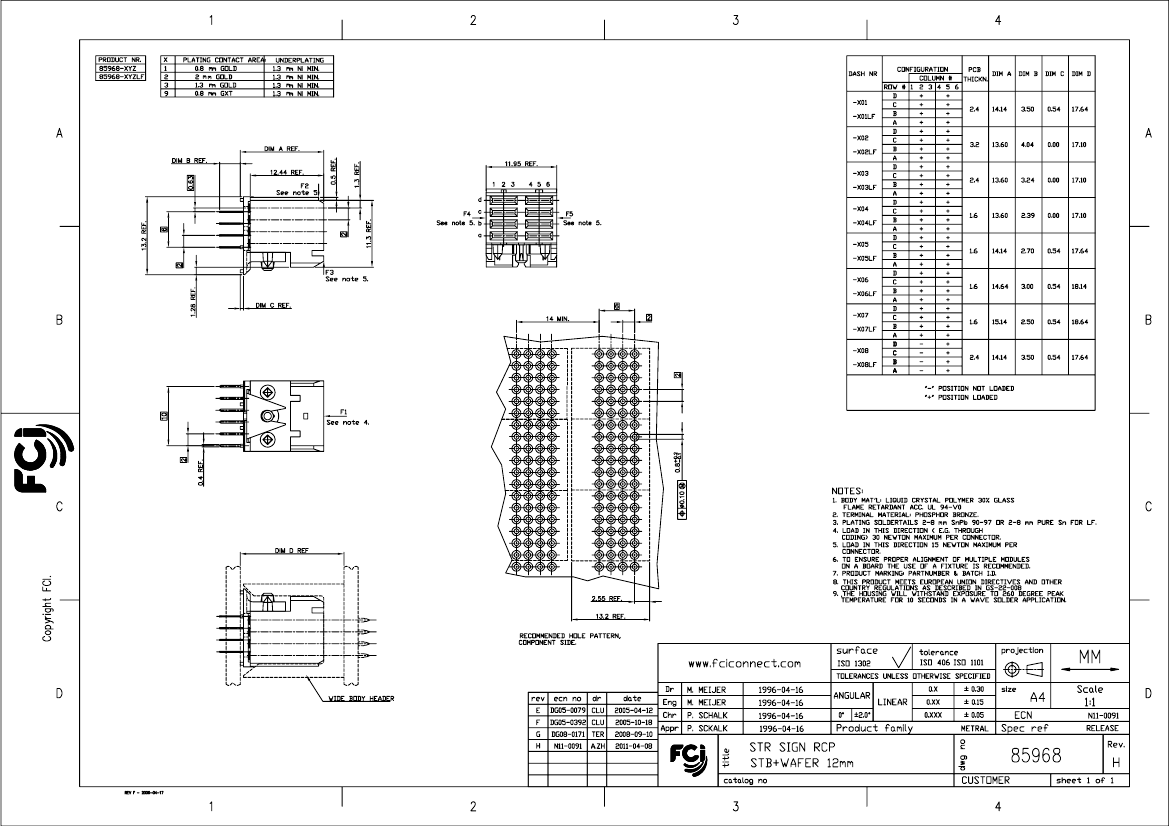

PDM: Rev:H

STATUS:

Released

Printed: Apr 14, 2011
