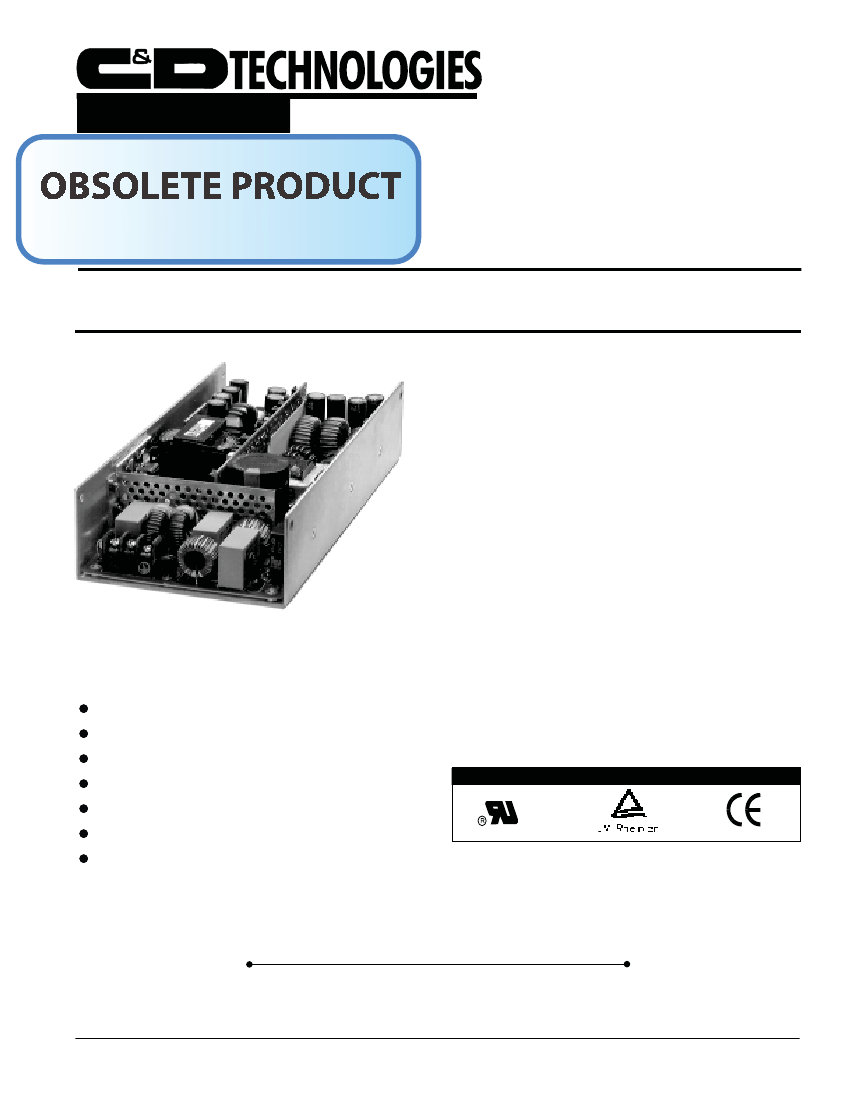

Input Specifications
Parameter
Operating Range
Inrush Current Limiting
120 V
AC,
cold start
240 V
AC
, cold start
Efficiency
Power Factor Correction (PFC)
Meets IEC 1000-4-7/EN61000-3-2 (formerly IEC 555-2)
Nominal line and full load
75
0.99
30
60
A
PK
A
PK
%
Conditions
47-63 Hz
Min
90
Typ
Max
264
Units
V
AC
Remote Sense
Remote Sense is provided on Output #1 and will
compensate for 1.0V of line drop. Remote Sense leads are
protected against open, short and reversal.
Remote On/Off
The power supply is turned on with a TTL logic ‘1’ (or open)
signal and turned off by a switch closure or TTL logic ‘0’
referenced to (-) sense terminal. Consult the factory for other
options.
Over Voltage Protection
Output #1: 6.5V, ±0.5 V
DC
The power supply will latch off until AC power is cycled.
Over Current Protection
Individual current limit on all outputs. Automatic recovery
upon fault removal.
Transient Response
The peak output voltage excursion will not exceed 2% and
will recover within 1% in 200
μsec
for a 25% step load.
Output Isolation
All outputs are fully isolated.
Reverse Voltage Protection
All outputs are protected to rated load current.
Power Fail Signal
Upon AC input voltage removal, the power fail signal drops
to logic zero at least 10msec before loss of DC output.
Upon AC input turn-on, signal remains low until outputs are
in regulation. Consult the factory for other options.
N+1 Load Share (PX403)
Output #1 has active load sharing circuitry. Units will load
share within 1% of Maximum Rated Load.
Over Temperature Protection
Thermal switch turns off power supply if overheating occurs
and automatically restarts.
Safety
UL Recognized: UL File Number E14675 (1950 & 1012)
CSA Certified: CSA File Number LR 9070-154C
(C22.2 No9. 234-M90, Level 6)
TUV License Number: R9576029 (EN60950) (IEC950)
Cooling
The unit is designed to operate with 40 CFM airflow.
Page 2
PX401 4/98 REV B
Mechanical
0.700
TOP VIEW
8.500
2.148
0,040
COVER
0.550
1
2
3
4
5
6
TB2
3.900
1
2
3
4.850
J9
5V
TB1
10.000
5V Return
Maximum depth of mounting screws is 0.156”
NOTES:
All measurements are in inches
FAN MOUNTED ON COVER ADDS 1.30”.
COOLING:
The PX401/403 is designed to operate with 40 CFM airflow.
SHOCK AND VIBRATION:
The PX401/403 family meets the requirements of MIL STD-810D. D(Vibration-Method 514.3 Procedure I; Shock-Method 516.3
Proedure I).
WEIGHT:
Approximately 4 lbs.
Pin Specifications
Terminal Block 1
POS
1
2
3
FUNCTION
Ground
AC Neutral
AC Line
Connector Specifications
Terminal Block 2
POS
1
2
3
4
5
6
FUNCTION
-V4
+V4
-V3
+V3
-V2
+V2
PIN
1
2
3
4
5
J9 Connector
FUNCTION
- Sense
+ Sense
Current Share
Remote Inhibit
Power Fail
J9 Connector
Molex No.
Connector
22-28-1050
Model PX403 features Active Current Sharing
Standard Options are shown, consult factory for other available options.
The information provided herein is believed to be reliable; however, C&D Technologies assumes no responsibility for inaccuracies or omissions. C&D Technologies assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. C&D Technologies does not authorize or warrant any C&D
Page 4
PX401 4/98 REV B
