PKF4910API datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PKF4910API

PKF4910API: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 9.9W, Hybrid, 8 MM HEIGHT, POWER, MODULE-18; CategoryPower/power management The power supply circuit; File Size265KB，8 Pages; ManufacturerEricsson; Websitehttp://www.ericsson.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PKF4910API Overview

DC-DC Regulated Power Supply Module, 1 Output, 9.9W, Hybrid, 8 MM HEIGHT, POWER, MODULE-18

PKF4910API Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ericsson
Parts packaging code	MODULE
package instruction	DIP, DIP18,1.0,200
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	38 V
Nominal input voltage	53 V
JESD-30 code	R-XDMA-T18
length	47.8 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	18
Maximum operating temperature	100 °C
Minimum operating temperature	-45 °C
Maximum output current	3 A
Maximum output voltage	4.08 V
Minimum output voltage	1.75 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,1.0,200
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	8.05 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	5 mm
Terminal location	DUAL
Maximum total power output	9.9 W
Fine-tuning/adjustable output	YES
width	23.5 mm

Preview

Download Datasheet

View All

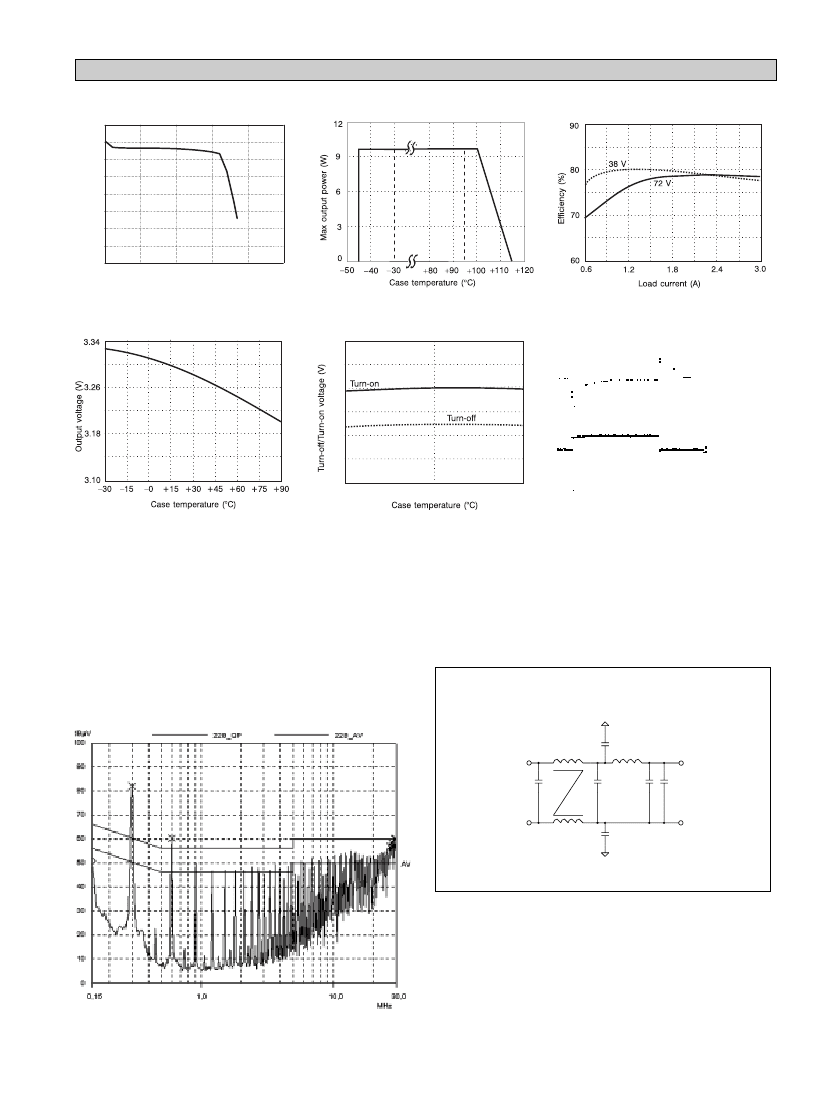

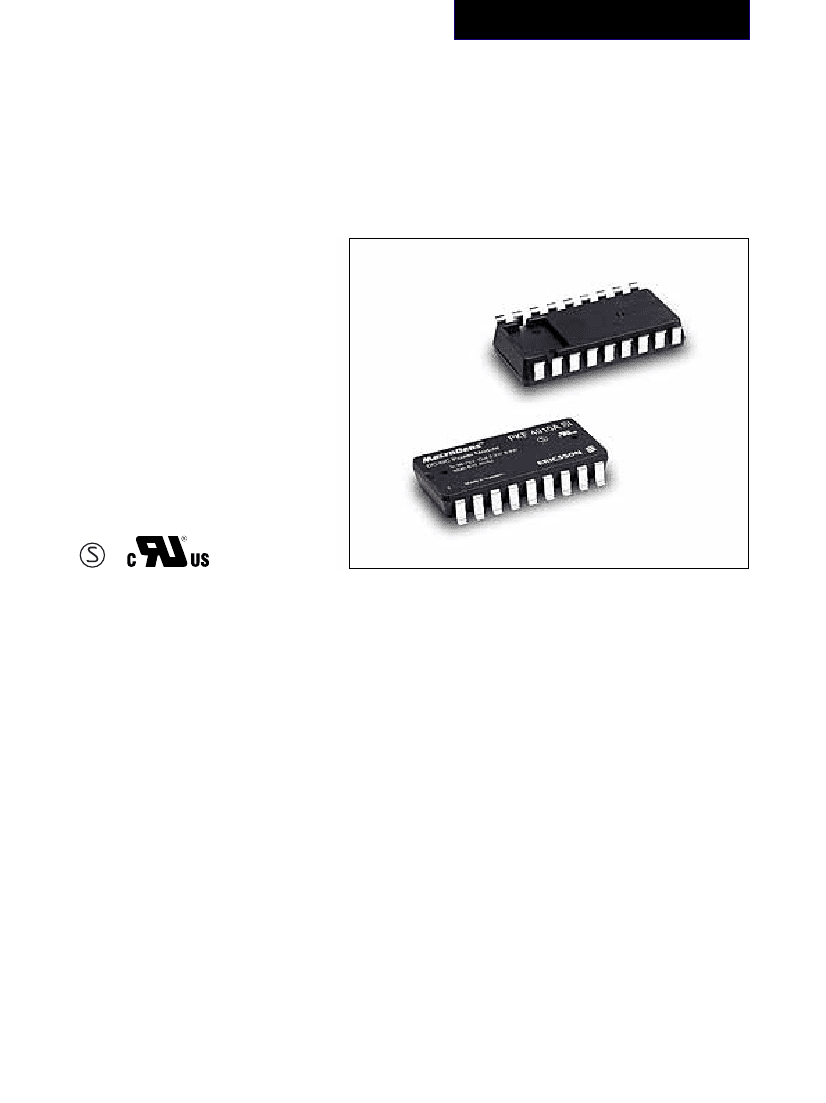

PKF 4910A I

DC/DC power modules

3.3V/3A /9.9 W

• SMD and through-hole versions

with ultra low component height

8.0 mm (0.315 in.)

• 78% efficiency

• 1,500 Vdc isolation voltage

• Switching frequency syncronization

• MTTF >10 million hours at +50°C case

temperature

• Low EMI

The MacroDens™ 9.9W PKF 4910A I true

component level on-board DC/DC power modules are

intended as distributed power sources in decentralized

– 48 and – 60V DC power systems. They are optimized

for an operational ambient temperature range in

compliance with present and future application needs,

including non temperature controlled environments.

The mechanical design offers the choice of surface

mount or through-hole versions, delivered in ready-

to-use tubes, trays or tape & reel package, and

compatibility with semi and fully aqueous cleaning

processes.

For mechanical and other information please refer to the

PKF series General information data sheet.

PKF4910API Related Products

	PKF4910API	PKF4910ASI
Description	DC-DC Regulated Power Supply Module, 1 Output, 9.9W, Hybrid, 8 MM HEIGHT, POWER, MODULE-18	DC-DC Regulated Power Supply Module, 1 Output, 9.9W, Hybrid, 8 MM HEIGHT, POWER, MODULE-18
Is it Rohs certified?	conform to	conform to
Maker	Ericsson	Ericsson
Parts packaging code	MODULE	MODULE
package instruction	DIP, DIP18,1.0,200	SOP, GWDIP18,1.1,200
Contacts	18	18
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	72 V
Minimum input voltage	38 V	38 V
Nominal input voltage	53 V	53 V
JESD-30 code	R-XDMA-T18	R-XDMA-G18
length	47.8 mm	47.8 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Output times	1	1
Number of terminals	18	18
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-45 °C	-45 °C
Maximum output current	3 A	3 A
Maximum output voltage	4.08 V	4.08 V
Minimum output voltage	1.75 V	1.75 V
Nominal output voltage	3.3 V	3.3 V
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP18,1.0,200	GWDIP18,1.1,200
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
Maximum seat height	8.05 mm	8.05 mm
surface mount	NO	YES
technology	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	5 mm	5 mm
Terminal location	DUAL	DUAL
Maximum total power output	9.9 W	9.9 W
Fine-tuning/adjustable output	YES	YES
width	23.5 mm	23.5 mm
