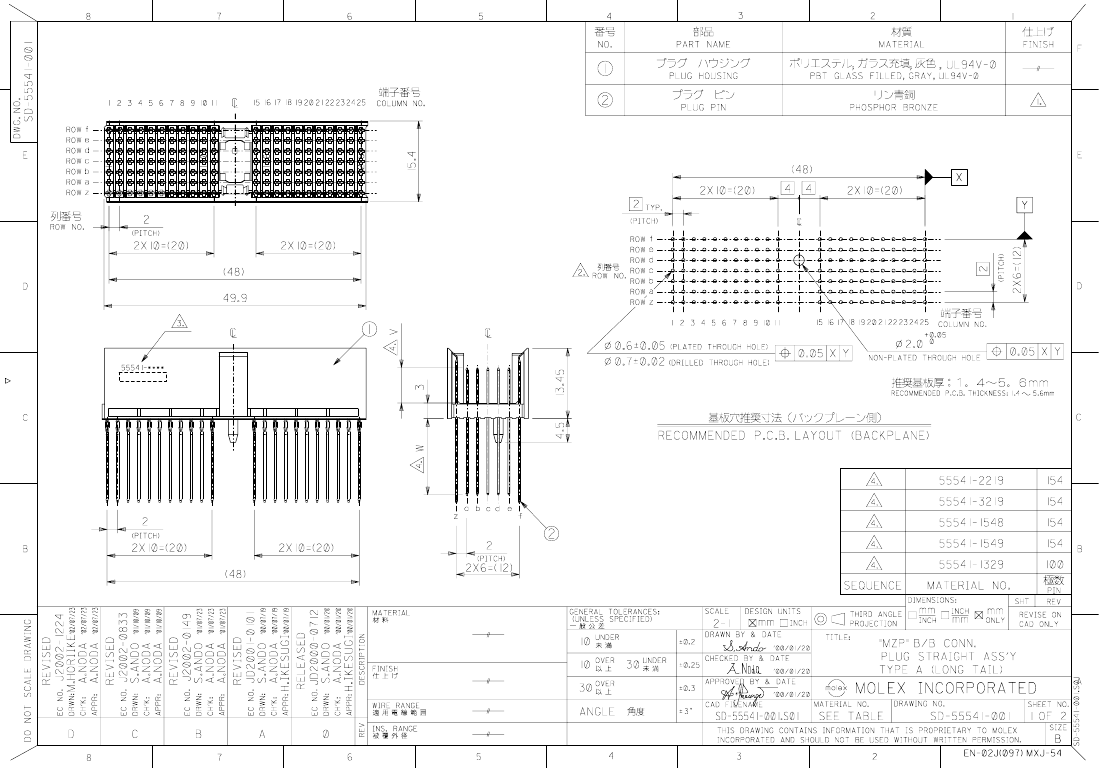

Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug

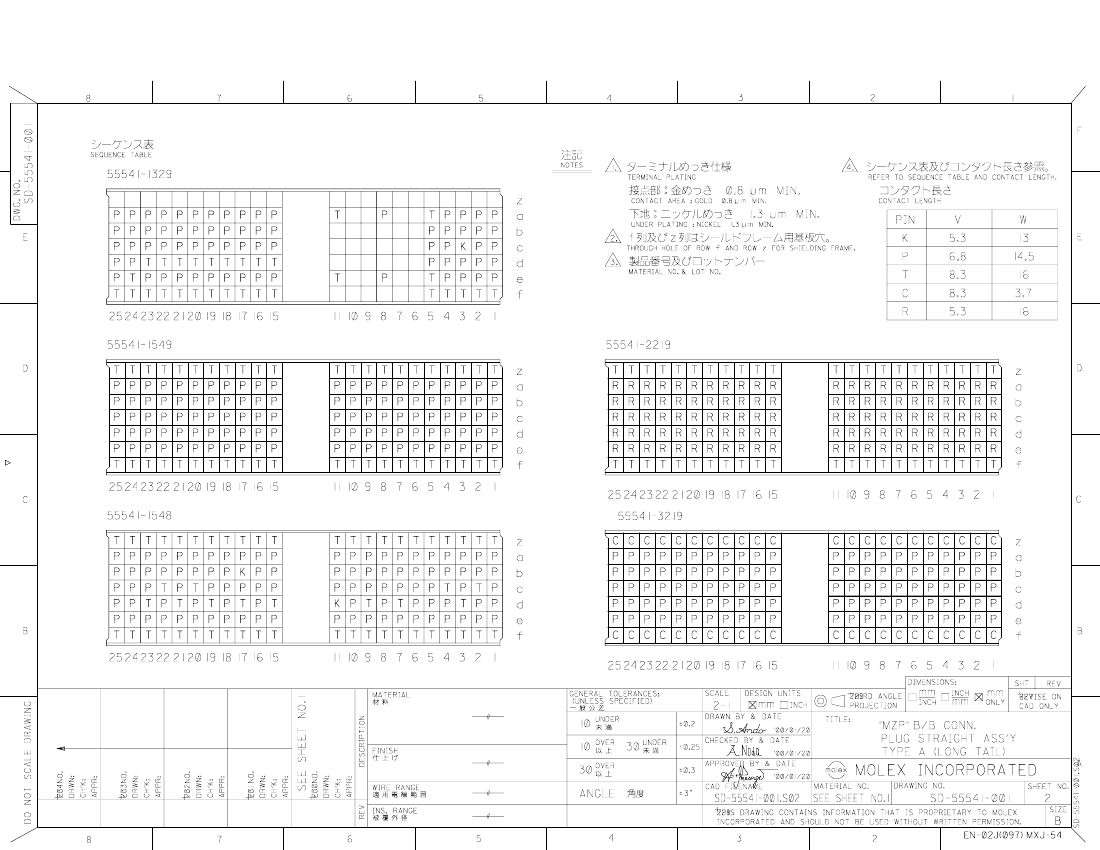

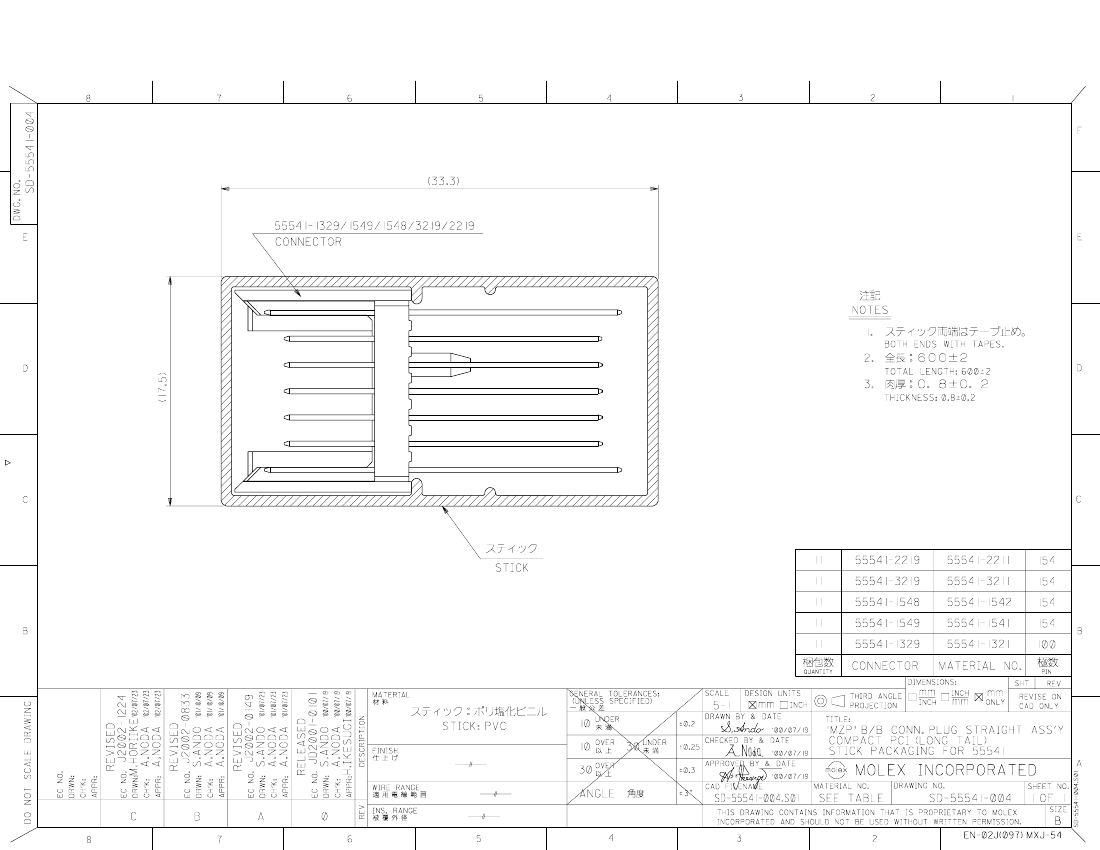

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE |
| Board mount options | LOCATING POSTS |
| body width | 0.606 inch |
| subject depth | 0.53 inch |
| body length | 1.965 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 125 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .9452 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Manufacturer's serial number | 55541 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 7 |
| Number of rows loaded | 6 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 31u inch |
| polarization key | POLARIZED RIB(S) |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.63 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
| 55541-1329 | 55541-2211 | 55541-2219 | 55541-1548 | 55541-3211 | 55541-1549 | 55541-3219 | 55541-1321 | 55541-1542 | 55541-1541 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug, | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Gray Insulator, Plug | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug | Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, Plug, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | compliant | compliant |
| Other features | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 55541 | 55541 | 55541 | 55541 | 55541 | 55541 | 55541 | 55541 | 55541 | 55541 |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 6 | 7 | 7 | 7 | 7 | 7 | 7 | 6 | 7 | 7 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 100 | 154 | 154 | 154 | 154 | 154 | 154 | 100 | 154 | 154 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maker | Molex | Molex | Molex | Molex | Molex | - | - | Molex | Molex | Molex |
| Contact to complete cooperation | AU ON NI | - | AU ON NI | AU ON NI | - | AU ON NI | AU ON NI | GOLD (31) OVER NICKEL | GOLD (31) OVER NICKEL | GOLD (31) OVER NICKEL |
| Contact material | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - | - |
