QTLP601C-O datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> QTLP601C-O

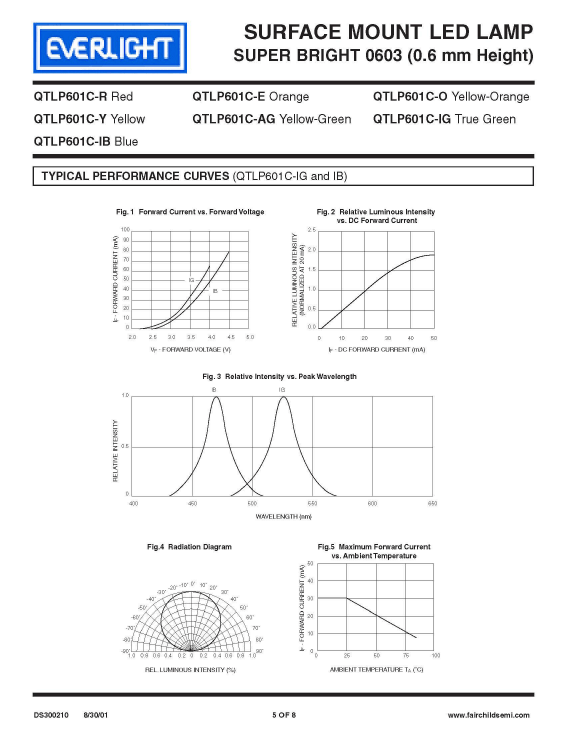

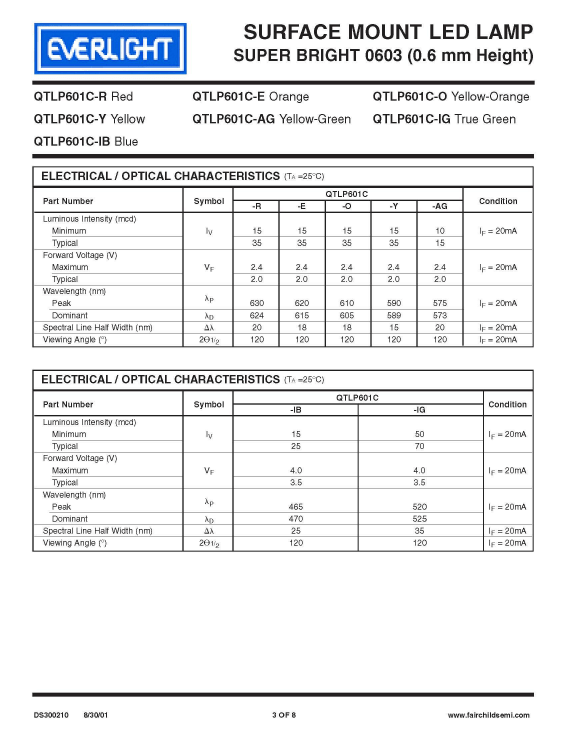

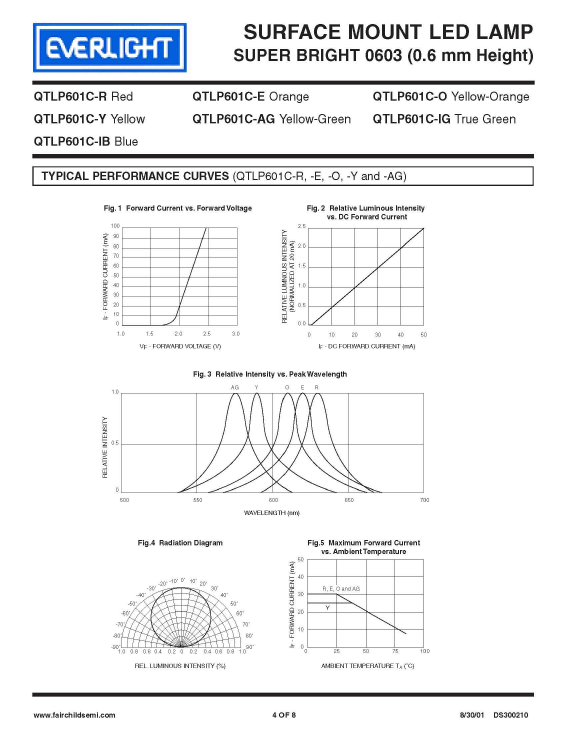

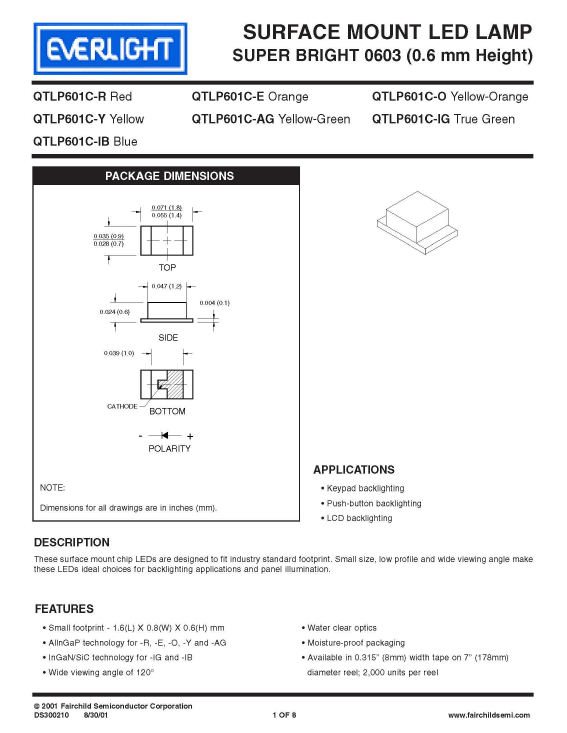

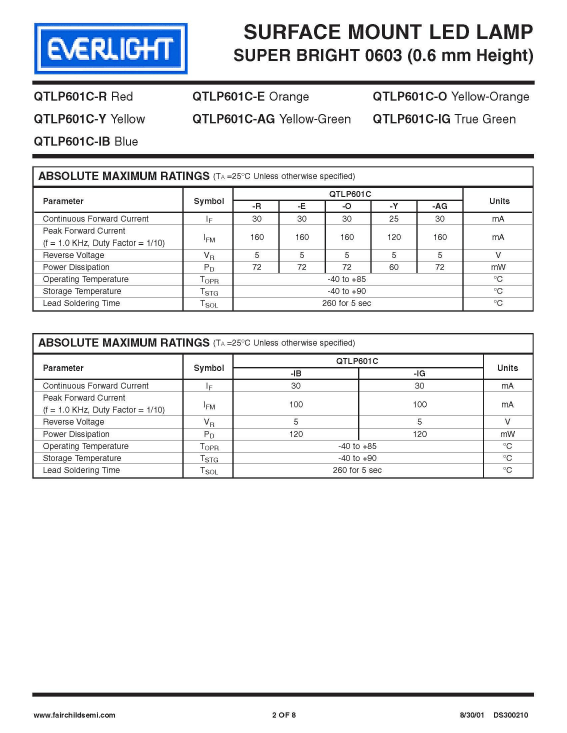

Preview

QTLP601C-O: DescriptionSingle Color LED, Yellow Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size2MB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric Compare View All

QTLP601C-O Overview

Single Color LED, Yellow Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2

QTLP601C-O Parametric

Parameter Name	Attribute value
Maker	EVERLIGHT
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant
color	YELLOW ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	35.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.6 mm
method of packing	BULK
peak wavelength	610 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg

Preview

Download Datasheet

View All

QTLP601C-O Related Products

	QTLP601C-O	QTLP601C-AG	QTLP601C-R	QTLP601C-E	QTLP601C-Y	QTLP601C-IG	QTLP601C-IB
Description	Single Color LED, Yellow Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, True Green, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	Single Color LED, Blue, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2
package instruction	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2	1.60 X 0.80 MM, 0.60 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli	compli
color	YELLOW ORANGE	YELLOW GREEN	RED	ORANGE	YELLOW	TRUE GREEN	BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	35.0 mcd	15.0 mcd	35.0 mcd	35.0 mcd	35.0 mcd	70.0 mcd	25.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	610 nm	575 nm	630 nm	620 nm	590 nm	520 nm	465 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm	1.65 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	EVERLIGHT	-	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT	EVERLIGHT
