D02-M15STF-21L9-2E

Description

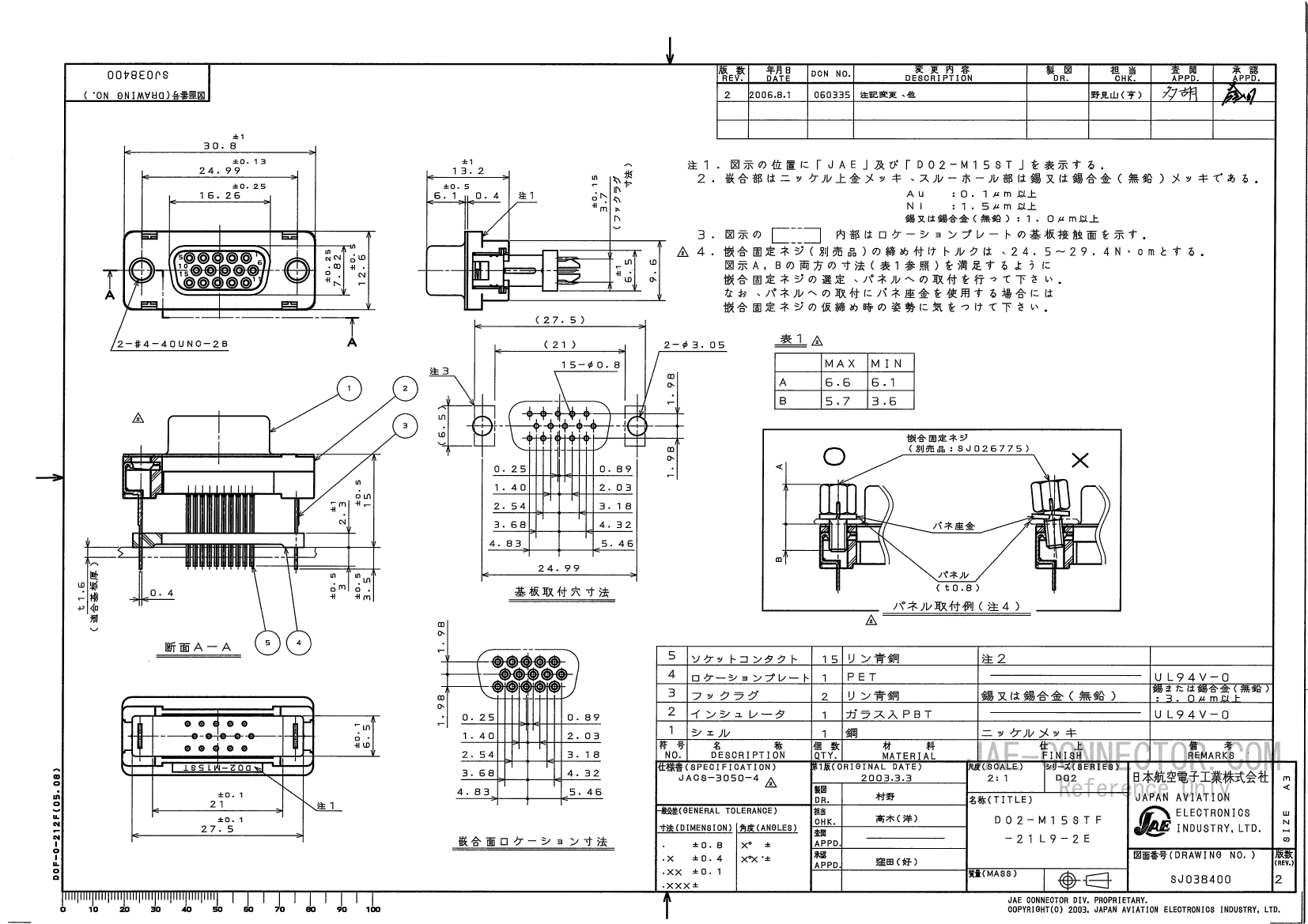

D Type Connector, 15 Contact(s), Female, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size145KB,1 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric View All

D02-M15STF-21L9-2E Overview

D Type Connector, 15 Contact(s), Female, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle

D02-M15STF-21L9-2E Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
body width0.496 inch
subject depth0.591 inch
body length1.213 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU
Contact completed and terminatedTIN
Contact point genderFEMALE
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1250VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberD02-M15
Plug contact pitch0.1 inch
Match contact row spacing0.078 inch
Installation option 1#4-40
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number3
Number of rows loaded3
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.9812 mm
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts15
