DAP202
Dual Surface Mount Fast Switching Diode
SOT-23
Features
High speed.
High reliability.
Suitable for hig packing density layout.
Pb
Lead-free
Applications
Ultra high speed switching
Silicon epitaxial planar
Dimensions in inches and (millimeters)
Ordering Information
Type No.
DAP202
Marking
P
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Parameter
Non-Repetitive Peak reverse voltage
DC Reverse Voltage
Forward continuous Current(Single)
Average rectified forward current(Single)
Surge Current (t=1.0us)
Power Dissipation
Junction temperature
Storage temperature range
Symbol
V
RM
V
R
I
FM
I
O
I
surge
P
d
T
j
T
stg
Limits
80
80
300
100
4
200
150
-55 -+150
Unit
V
V
mA
mA
A
mW
℃
℃
http://www.luguang.cn
mail:lge@luguang.cn
DAP202
Dual Surface Mount Fast Switching Diode
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Reverse voltage leakage current
Forward voltage
Total capacitance
Reverse recovery time
Symbol
I
R
V
F
C
T
t
rr
Test
V
R
=70V
I
F
=100mA
V
R
=6V,f=1MHz
I
F
=5mA,V
R
=6V,
R
L
=50Ω
conditions
MIN
MAX
0.1
1.2
3.5
4
UNIT
μA
V
pF
ns

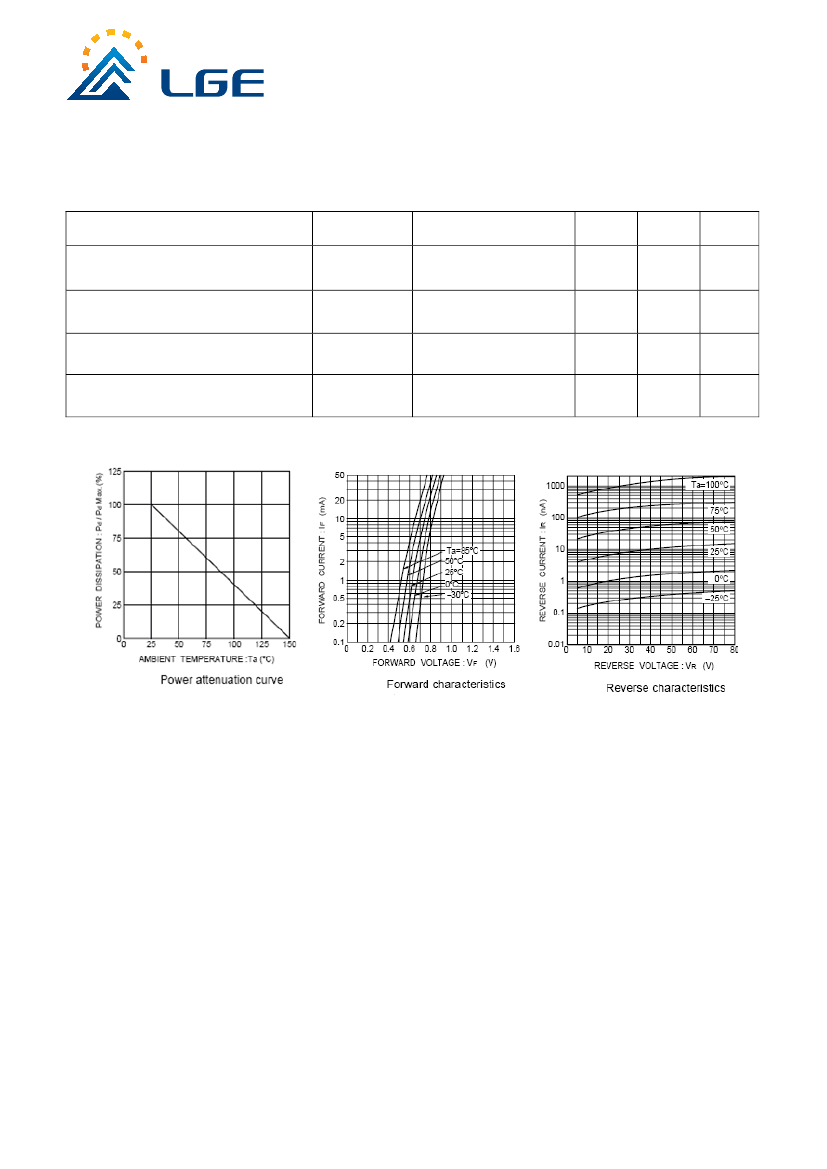

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
http://www.luguang.cn
mail:lge@luguang.cn
