30KP33 thru 30KP400A
30kW Transient Voltage Suppressor
SCOTTSDALE DIVISION
DESCRIPTION
These Microsemi 30 kW Transient Voltage Suppressors (TVSs) are
designed for applications requiring protection of voltage-sensitive electronic
devices that may be damaged by harsh or severe voltage transients
including lightning per IEC61000-4-5 and class levels with various source
impedances described herein. This series is available in 33 to 400 volt
standoff voltages (V
WM
) in both unidirectional and bi-directional with either
5% or 10% tolerances of the Breakdown Voltage (V
BR
). Microsemi also
offers numerous other TVS products to meet higher or lower power
demands and special applications
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
WWW .
Microsemi
.C
OM
FEATURES
•
•
•
•
•
Available in both Unidirectional and Bidirectional
construction (Bidirectional with C or CA suffix)
Selections for 33 to 400 volt standoff voltages V
WM
Suppresses transients up to 30 kW @ 10/1000 µs
and 200 kW @ 8/20 µs (see Figure 1)
Fast response
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, JANTXV, and JANS are
available by adding MQ, MX, MV, or MSP prefixes
respectively to part numbers.
Moisture classification is Level 1 with no dry pack
required per IPC/JEDEC J-STD-020B
APPLICATIONS / BENEFITS
•
Protection from switching transients and induced RF
•
Protection from ESD, and EFT per IEC 61000-4-2 and
IEC 61000-4-4
•
Secondary lightning protection per IEC61000-4-5 with
42 Ohms source impedance:
Class 1,2,3,4: 30KP33A - 30KP400A or CA
Class 5: 30KP33A - 30KP400A or CA (short distance)
Class 5: 30KP33A - 30KP220A or CA (long distance)
•
Secondary lightning protection per IEC61000-4-5 with
12 Ohms source impedance:
Class 1,2, 3: 30KP33A to 30KP400A or CA
Class 4: 30KP33A to 30KP220A or CA
•
Secondary lightning protection per IEC61000-4-5 with
2 Ohms source impedance:
Class 2: 30KP33A to 30KP400A or CA
Class 3: 30KP33 to 30KP220A or CA
Class 4: 30KP33 to 30KP110A or CA
•
MAXIMUM RATINGS
•
•
•
•
•
Peak Pulse Power dissipation at 25
º
C: 30,000
watts at 10/1000
µs
(also see Figures 1 and 2)
Impulse repetition rate (duty factor): 0.05%
t
clamping
(0 volts to V
(BR)
min.): < 100 ps theoretical
for unidirectional and < 5 ns for bidirectional
Operating & Storage temperature: -65
º
C to +150
º
C
Thermal resistance: 17.5
º
C/W junction to lead, or
77.5
º
C/W junction to ambient when mounted on
FR4 PC board with 4 mm
2
copper pads (1oz) and
track width 1 mm, length 25 mm
Steady-State Power dissipation: 7 watts at T
L
=
27.5
o
C, or 1.61 watts at T
A
= 25
º
C when mounted
on FR4 PC board described for thermal resistance
Forward Surge: 250 Amps 8.3 ms half-sine wave
Solder temperatures: 260
º
C for 10 s (maximum)
•
•
•
•
•
•
•
MECHANICAL AND PACKAGING
CASE: Void-free transfer molded thermosetting
epoxy body meeting UL94V-0
FINISH: Tin-Lead plated readily solderable per MIL-
STD-750, method 2026
MARKING: Body marked with part number
POLARITY: Band denotes cathode. Bidirectional not
marked for polarity
WEIGHT: 1.8 grams.
TAPE & REEL option: Standard per EIA-296 for axial
package (add “TR” suffix to part number)
See package dimension on last page
30KP33 – 30KP400A
KP33 – 30KP400A
•
•
•
Copyright
2003
06-24-2003 REV F
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
30KP33 thru 30KP400A
30kW Transient Voltage Suppressor
SCOTTSDALE DIVISION
Symbol
V
BR
V
RWM
V
F
I
R
C
SYMBOLS & DEFINITIONS
Definition
Minimum Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Reverse Voltage: The maximum peak voltage that can be applied over the operating
temperature range.
Maximum Forward Voltage: The maximum forward voltage the device will exhibit at a specified current.
Maximum Leakage Current: The maximum leakage current that will flow at the specified voltage and
temperature.
Capacitance: The capacitance of the TVS as defined @ 0 volts at a frequency of 1 MHz and stated in
picofarads.
WWW .
Microsemi
.C
OM

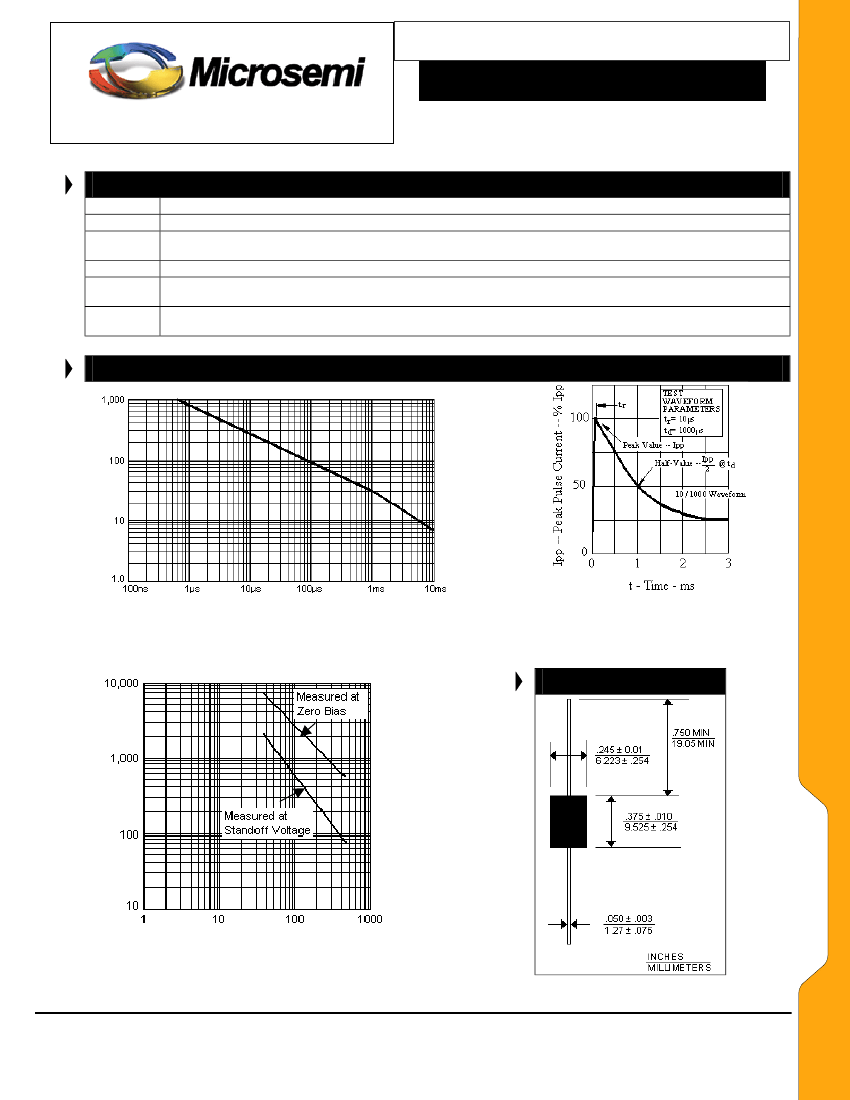

OUTLINE AND CIRCUIT
P
PP
– Peak Pulse Power - kW
TP – Pulse Time - sec
FIGURE 1
Peak Pulse Power vs. Pulse Time
FIGURE 2
Pulse Wave Form
DIMENSIONS
C – CAPACITANCE - PICOFARADS
30KP33 – 30KP400A
KP33 – 30KP400A
FIGURE 3
Typical Capacitance vs. Breakdown Voltage
V
(BR)
- BREAKDOWN VOLTAGE – VOLTS
Copyright
2003
06-24-2003 REV F
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 3
