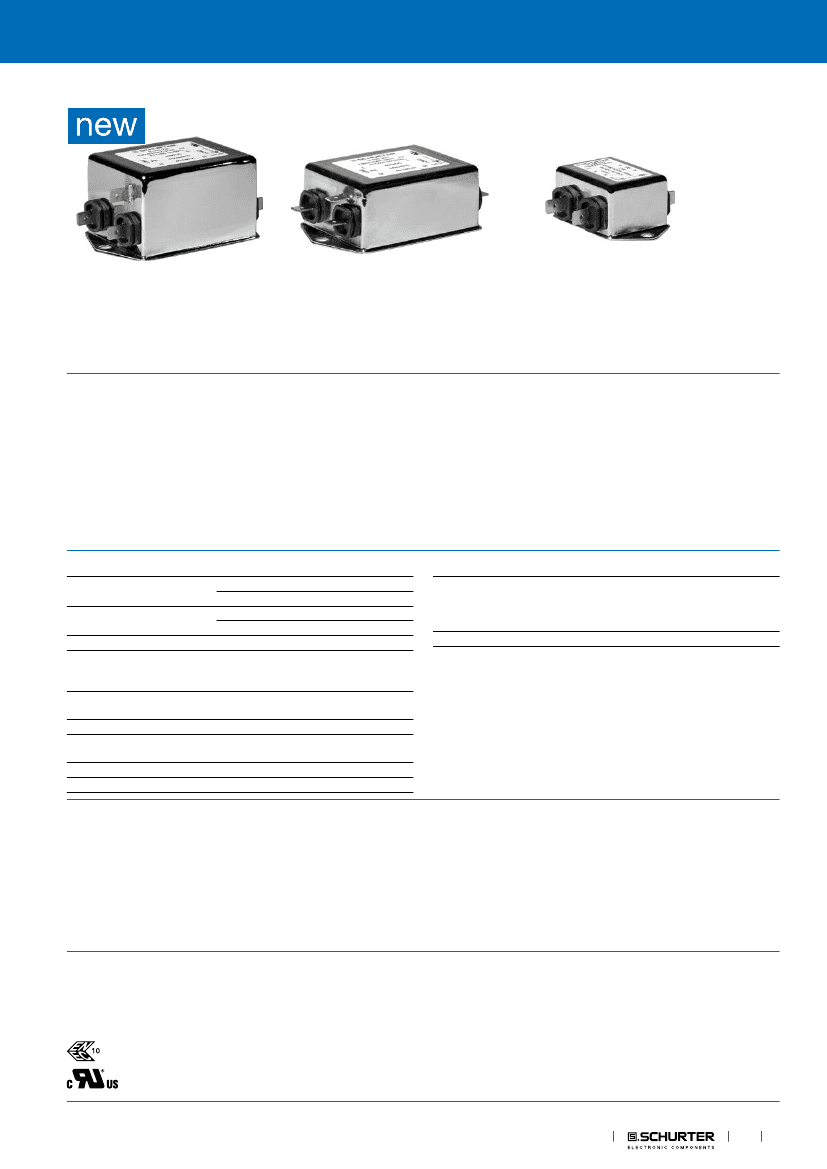

1-Phase Line Filters
https://www.schurter.com /PG84
FMAB HV
AC / DC Filter, High Symmetrical Attenuation
See below:
Approvals and Compliances
Description
- Filter for 277 VAC or 400 VDC applications
- 1-stage
- Compact filter with high symmetrical attenuation
Characteristics
Unique Selling Proposition
-
-
-
-
For high AC- or DC-voltages
Excellent symmetrical attenuation
Completely enclosed steel housing
Optional overvoltage protection
- For 277 VAC applications in North America WYE 480/277 volt system
For 400 VDC applications e.g. data center
- Especially designed forapplications with symmetrical noise caused by
switching semiconductors
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
Weblinks
- Version with varistor for overvoltage protection
pdf data sheet, html datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Landing Page
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 20 A @ Ta 40 °C / 277 VAC; 50 Hz
1 - 20 A @ Tu 40 °C / 277 VDC
1 - 20 A @ Ta 40 °C / 277 VAC; 60 Hz
1 - 20 A @ Tu 40 °C / 400 VDC
industrial < 1 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminal 6.3 x 0.8 mm
Metal
Line Filter
Standard, medical and industrial ver-
sion, IEC 60939, UL 1283, CSA C22.2
no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAB HV
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40050001
UL File Number: E495089
EMC Products
1
FMAB HV
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
Case PG
max. 58
max. 24.8
9.5
max. 35.5
32.5
15.8
9.5
max. 44
54
±0.3
1)
2)
6.3x0.8
(5x)
21
64
ø 5.3
1) Line, 2) Load
2
EMC Products
6.3
21
1-Phase Line Filters
https://www.schurter.com /PG84
FMAB HV

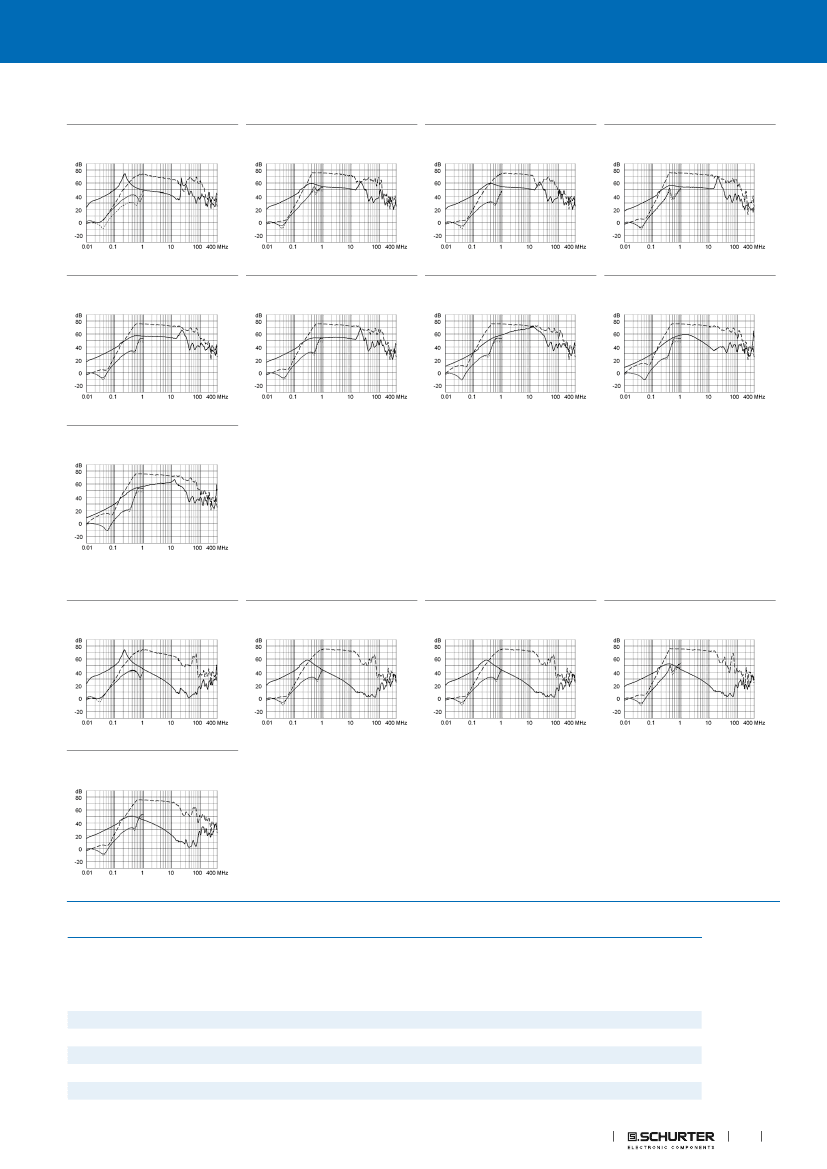

........... 100/0.1Ω differential mode
- - - - 50Ω differential mode _____ 50Ω common mode
.
Attenuation Loss
. . . . 0.1/100Ω differential mode
Standard version
1A
3A
4A
6A
8A
10 A
12 A
16 A
20 A
Medical version (M5)
1A
3A
4A
6A
8A
All Variants
Rated
current
[A]
1
3
4
6
8
10
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Industrial Version
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Quick connect terminal 6.3 x 0.8 mm
Filter-Type
Terminal
Lea-
kage
[mA]
0.5
0.5
0.5
0.5
0.5
1
Ri
[mΩ]
560
83
53
32.5
29.2
22.8
Power
Loss
[W]
1
1.5
1.7
2.4
3.8
4.6
Weight
[g]
72 g
104 g
108 g
109 g
190 g
200 g
PG
PH
PH
PH
PI
PI
Housings
Packa-
ging
[ST]
20
15
15
15
10
10
3-109-227
3-109-228
3-109-229
3-109-230
3-109-231
3-109-232
█
█
█
█
█
█
Order Number
EMC Products
5
