PA4304.392NLT

Description
General Purpose Inductor,
CategoryPassive components    inductor
File Size359KB，3 Pages
ManufacturerPulse Electronics
Environmental Compliance
Download Datasheet Parametric View All

PA4304.392NLT Overview

General Purpose Inductor,

PA4304.392NLT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPulse Electronics
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Inductor typeGENERAL PURPOSE INDUCTOR

Preview

Download Datasheet
Shielded Drum Core Inductor
PA4303.XXXNLT & PA4304.XXXNLT Series
Height:
4.5mm and 6.0mm Max
Footprint:
12.5 x 12.5 mm Max
Current Range:
0.32 to 8.5A
Inductance Range:
1uH to 1000uH
Electrical Specifications @ 25°C
—
Operating Temperature -40°C to 125°C
Pulse Part Number
PA4303.102NLT
PA4303.122NLT
PA4303.152NLT
PA4303.182NLT
PA4303.222NLT
PA4303.272NLT
PA4303.332NLT
PA4303.392NLT
PA4303.472NLT
PA4303.562NLT
PA4303.682NLT
PA4303.822NLT
PA4303.103NLT
PA4303.123NLT
PA4303.153NLT
PA4303.183NLT
PA4303.223NLT
PA4303.273NLT
PA4303.333NLT
PA4303.393NLT
PA4303.473NLT
PA4303.563NLT
PA4303.683NLT
PA4303.823NLT
PA4303.104NLT
PA4303.124NLT
PA4303.154NLT
PA4303.184NLT
PA4303.224NLT
PA4303.274NLT
PA4303.334NLT
PA4303.394NLT
PA4303.474NLT
Inductance (uH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Rated Current (A) Max
7.8
7.5
7.2
6.5
6
5.7
5.4
5.1
4.8
4.3
4.2
4
3.9
3.4
3.2
2.9
2.5
2.25
2
1.9
1.8
1.7
1.55
1.35
1.2
1.1
0.95
0.85
0.8
0.65
0.55
0.5
0.44
DC Resistance (mΩ) Max
8
9
11
12
13
16
18
21
22
23
26
31
39
44
55
65
75
86
112
121
166
182
205
243
299
358
462
507
663
741
936
1050
1300
Package Size (mm)
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5
12.5 x 12.5 x 4.5

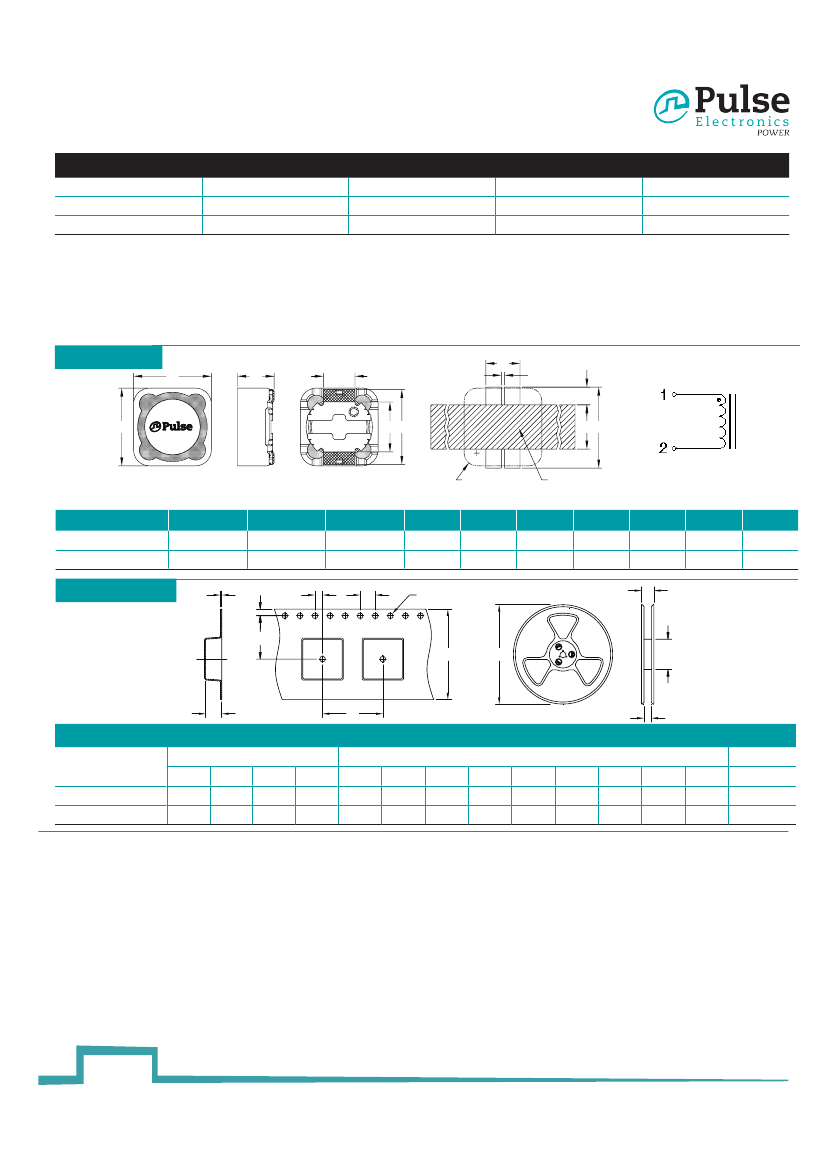

1
power.pulseelectronics.com
P748.B(05/17)
http://www.power.pulseelectronics.com/contact
